Precision‑woven in nylon, polyester, cotton, or aramid blends; low MOQ, rapid 3–5 day samples, full private‑label options

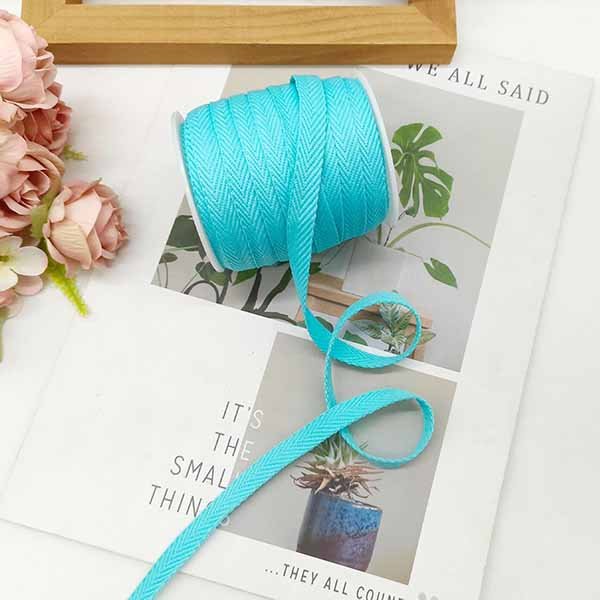

Szoneier’s private‑label herringbone tape offers endless design possibilities—whether you need a classic solid chevron or a bold multi‑color pattern, specialty yarns like metallic or glow‑in‑the‑dark fibers, integrated 3M™ reflective strands for safety, or woven‑in logos and edge‑stripe branding. We also provide finishes such as water‑repellent, anti‑UV, or flame‑retardant coatings to meet your performance requirements. With low MOQs, rapid 3–5 day sampling, and complimentary design support, creating a distinctive herringbone tape that embodies your brand has never been easier.
Distinctive Chevron Aesthetics
The herringbone weave’s diagonal pattern creates a premium, textured look that enhances product visual appeal.
Even Load Distribution
Zig‑zag yarn alignment spreads tension uniformly across the tape, boosting tensile strength and reducing stress points.
Enhanced Flexibility & Drapability
The interlocking chevron structure offers improved bend‑ability and comfort, conforming smoothly to curves and edges.
Improved Grip & Slip Resistance
Subtle surface “tooth” in the weave enhances friction, making straps and handles easier to hold under load.
Superior Abrasion Resistance
Dense, multi‑directional yarn paths resist wear from rubbing and repeated use, extending service life in demanding applications.
Select the perfect fiber blend to match your application’s strength, feel, and environmental demands.
Exceptional strength‑to‑weight ratio, abrasion resistance, and elasticity—ideal for heavy‑duty straps and high‑wear scenarios.
Superior UV and moisture resistance with excellent colorfastness—perfect for outdoor use and moisture‑prone environments.

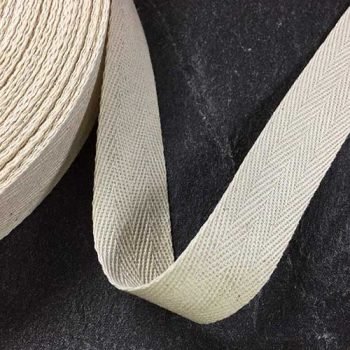

Soft hand feel and natural aesthetic, with blended synthetics available to boost durability and reduce shrinkage.
Inherent flame resistance and high tensile strength for safety applications requiring heat performance.
Metallic, glow‑in‑the‑dark, or soft‑touch nylon fibers to add visual flair, tactile appeal, or enhanced safety features.
Sustainable rPET or organic cotton blends for environmentally conscious branding without compromising quality.
Tailor every detail of your herringbone tape to match your brand’s vision and performance needs.

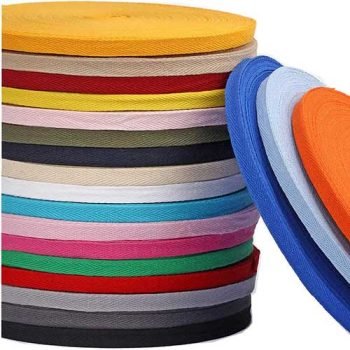

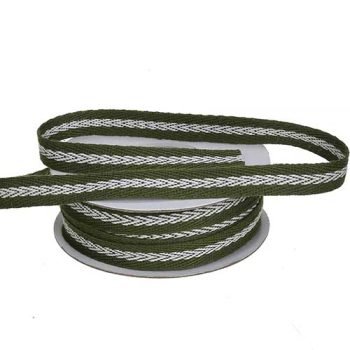

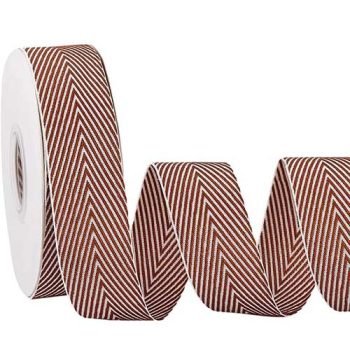

Design your tape in single‑color chevrons for a sleek look or dual‑tone edges that accentuate the zigzag. Support up to four yarn colors and full Pantone matching for brand‑perfect palettes.
Select widths from 10 mm to 100 mm and thicknesses between 1.0 mm and 3.0 mm in single or multi‑ply constructions, balancing flexibility and load capacity for fashion trims or heavy‑duty industrial straps.
Choose high‑strength nylon for elasticity and abrasion resistance, UV‑stable polyester for outdoor durability, soft cotton blends for natural feel, or aramid blends for flame resistance. Specialty metallic or glow‑in‑the‑dark yarns available.
Prevent fraying with heat‑sealed edges or reinforce with overlock stitching. Opt for dyed‑through borders for seamless integration. Customize end cuts—square, round, or angled—to precisely match your product’s design requirements.

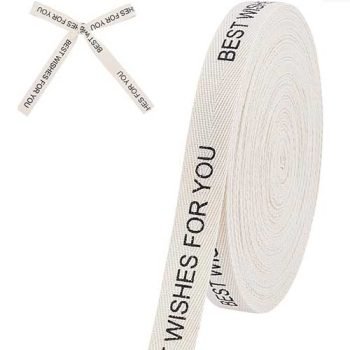

Embed your logo permanently with woven‑in edge‑stripe text or achieve full‑color graphics using heat‑transfer or sublimation printing. Both methods ensure sharp, durable branding that withstands abrasion and repeated washing.
Integrate 3M™ reflective yarns or fluorescent fibers directly into the herringbone for enhanced low‑light visibility. Add metallic or soft‑touch nylon accents to create a distinctive tactile experience and elevate your tape’s aesthetics.
Apply water‑repellent, anti‑UV, or anti‑mildew treatments for extended outdoor longevity. Request flame‑retardant finishes for safety compliance or select custom hand‑feel coatings—matte, soft‑touch, or gloss—to achieve the ideal surface texture.
Receive free prototype samples built to your specs within 3–5 days. When ready, choose private‑label packaging—branded reels, boxes, or sample cards—with low MOQs and detailed spec tags for streamlined inventory management.
Ready to customize your webbing? Contact us now!
| Parameter | Range / Value | Test Standard |
| Materials | Nylon, Polyester, Cotton blends, Aramid‑blend | — |
| Width | 10 mm – 100 mm | ± 1 mm |
| Thickness | 1.0 mm – 3.0 mm | ± 0.1 mm |
| Breaking Strength | 1,500 N – 6,000 N | ASTM D6775 |
| Elongation at Break | ≤ 15 % | ASTM D2656 |
| Abrasion Resistance | ≥ 30,000 cycles | ISO 12947‑2 |
| Color Fastness | Grade 4–5 | ISO 105‑B02 |
| UV Resistance | ≥ 500 hours exposure | ASTM G154 |
| Weave Density | 20–30 chevrons per 10 cm | — |
| Yarn Count | 40 – 200 denier | — |
Need wider widths, higher strength, or unique densities? We tailor dimensions and performance to your exact requirements.
Every roll undergoes batch testing for tensile strength, elongation, abrasion, and UV/color fastness, with detailed certificates provided.
Prototype tapes ship with preliminary test results within 3–5 days so you can verify performance before full production
From concept to completion—our streamlined production workflow
Define yarn types, chevron angle, color palette, width, thickness, and finishing needs through collaborative design sessions.
Procure and inspect certified fibers—nylon, polyester, cotton blends, aramid—ensuring they meet specified performance criteria.
Clean, align, and tension warp and weft yarns on precision creels to guarantee uniform density and smooth weaving.
Configure shuttle looms with selected yarns, adjust tension settings, and program chevron repeat patterns for accuracy.
Execute the herringbone weave with real-time tension control, producing consistent chevrons at your chosen density and ply count.
Thermally cure tapes in controlled ovens to lock fiber alignment, prevent post-weave shrinkage, and ensure dimensional stability.
Apply edge seals, overlock stitching, and optional coatings—water-repellent, anti-UV, flame-retardant—for enhanced durability.
Precisely cut to length, perform batch tests on tensile, abrasion, and color fastness, then private-label package for global shipment.

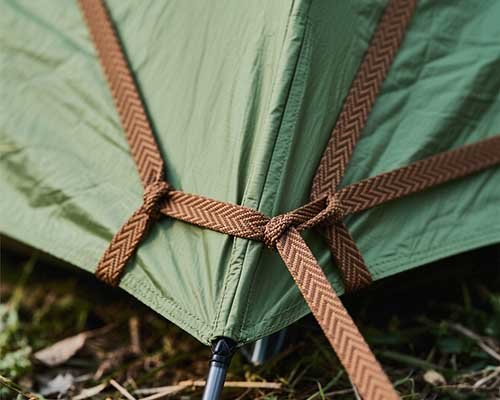

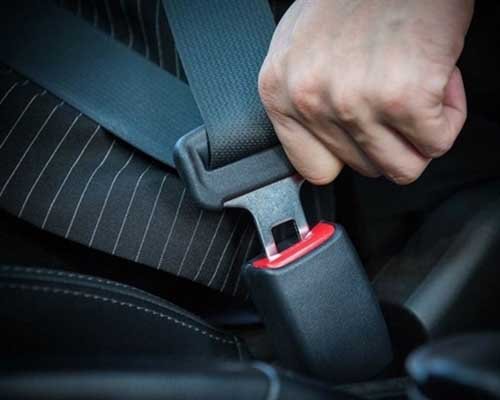

Versatile Uses Across Industries: Elevate Function and Style with Custom Herringbone Tape
At Szoneier, we ensure high-quality webbing through strict international standards, durability, safety, and environmental compliance. Backed by rigorous quality control and certifications, our products meet global industry requirements.
Our state-of-the-art webbing manufacturing facility ensures high-quality, fully customizable webbing solutions. With strict quality control and advanced production techniques, we meet the needs of global brands and businesses.
If you have your own tech packs, logo design artwork, or just an idea,please provide details about your project requirements, including preferred fabric, color, and customization options,we’re excited to assist you in bringing your webbing designs to life through our sample production process.
Proudly Partnered With Leading Brands Worldwide
Get quick answers to the most common questions about materials, customization options, durability, applications, and order process.

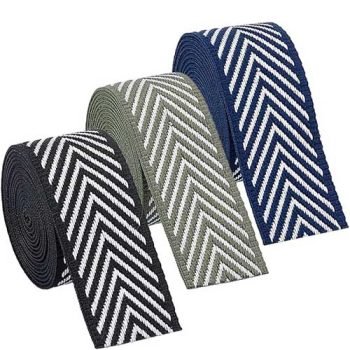

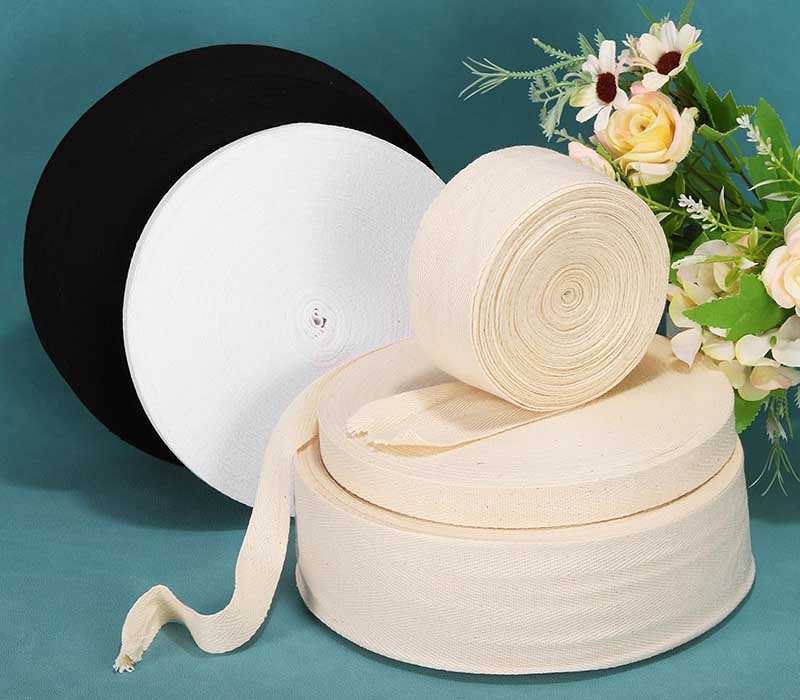

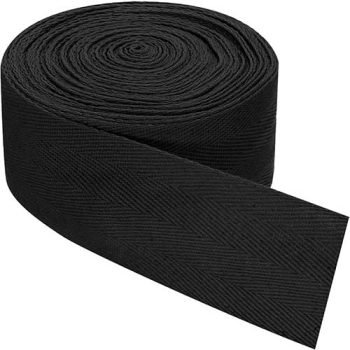

Herringbone tape’s distinctive chevron pattern adds both decorative flair and structural integrity. It’s commonly used in fashion accessories (belts, bag straps), upholstery trim, and industrial webbing where texture and strength are required.

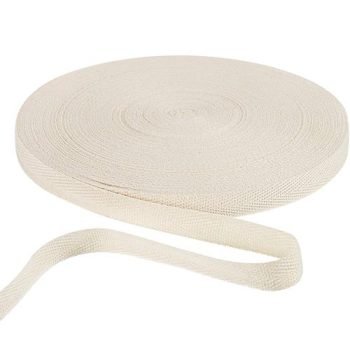

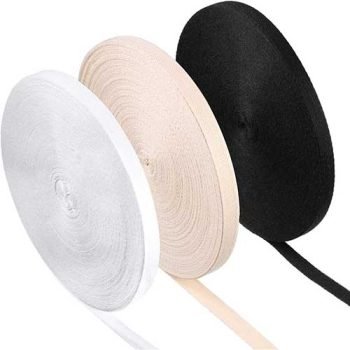

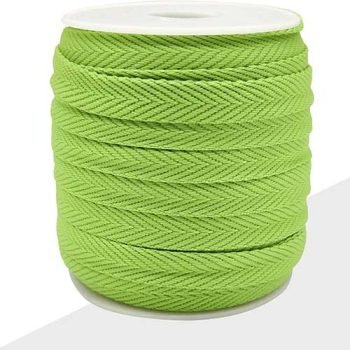

Twill tape features a diagonal weave that provides flexibility and firmness. It’s often used to reinforce seams, bind edges, and create durable drawstrings or straps in apparel and home textiles.
Manufacturers typically use nylon for elasticity and abrasion resistance, polyester for UV and moisture stability, cotton blends for a soft hand feel, and aramid-blends for flame-resistant applications.
You can specify yarn types, chevron colors (up to four yarns), width and thickness, edge-treatments, and add-ons like reflective fibers or metallic yarns, all with Pantone-matched precision.
Low MOQs start at 200 meters per specification. Free prototype samples ship in 3–5 days, while bulk production typically completes within 10–14 days, depending on order size.
With proper fiber selection and tight weave density, herringbone tape withstands ≥ 30,000 abrasion cycles and breaking strengths from 1,500 N to 6,000 N, making it suitable for both light-duty and heavy-duty applications.
Clean gently with mild detergent and warm water, then air-dry away from direct heat. Heat-sealed or overlocked edges minimize fraying, and periodic inspections help identify wear before failure.
Shuttle looms interlace warp and weft yarns in a zig-zag sequence, forming the signature chevron. Precise tension control ensures uniform pattern repeats and consistent tape dimensions.
Yes. When woven with high-strength fibers and appropriate ply count, herringbone tape can achieve breaking strengths up to 6,000 N, making it suitable for light load-bearing straps, lanyards, and equipment webbing.
