How Do Seatbelt Work: The Ultimate Guide

When you buckle up, you trust a strip of woven fabric—seatbelt webbing—to restrain you in a split-second collision. Yet behind that simple belt lies decades of engineering, materials science, and crash-test rigor. From the first generation of heavy, non-stretch straps to today’s high-performance nylon and polyester weaves, seatbelt webbing has evolved to become thinner, stronger, and smarter.

Seatbelt webbing systems comprise the belt itself, buckle, latch plate, retractor, and anchor points; together, they arrest occupant motion by locking under sudden deceleration and distributing crash forces across the pelvis and chest.

In everyday use, you hardly notice the retractor quietly spooling the belt or the way the webbing stretches just enough under load to cushion impact. But it’s that fine balance—between minimal give and maximum strength—that saves lives. In the story below, a family recalls how, during a high-speed highway crash, the very elasticity engineered into the webbing spared them catastrophic chest injuries. Ready to buckle in and explore every thread and mechanism? Let’s dive deep.

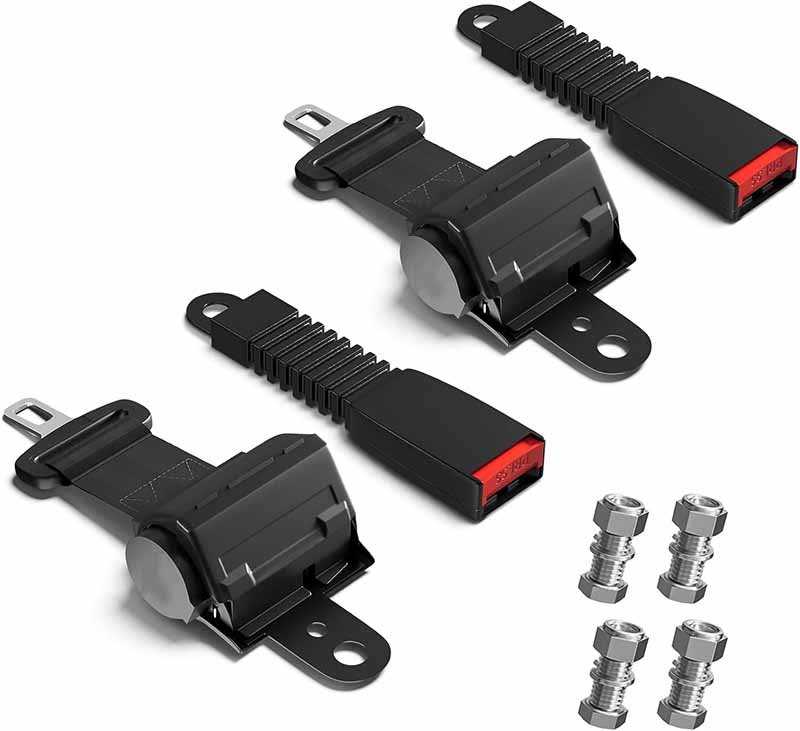

What Are the Key Components of a Seatbelt Webbing System?

A seatbelt webbing system includes the woven belt (usually nylon or polyester), the buckle and latch plate, the inertia or vehicle-sensitive retractor, and anchor points welded or bolted to the vehicle frame. Each component works in concert: the webbing holds you, the buckle secures, the retractor manages slack, and the anchors transfer crash forces safely into the car’s structure.

Seatbelt webbing systems are more than a strap and a clasp; they’re an integrated safety network:

Webbing Material & Construction

• Polyester vs. Nylon: Modern seatbelts predominantly use polyester for its low stretch under load (≈20–25% elongation at break) and superior UV resistance. Nylon, though slightly more elastic, offers higher tensile strength (up to 6,000 N) but can absorb moisture and degrade faster in sunlight.
• Weave Pattern: A tight basket or herringbone weave maximizes fiber density, ensuring uniform load distribution and preventing localized failures.

Buckle & Latch Plate

• Buckle Housing: Engineered from high-strength plastics or die-cast zinc, it must withstand >2 kN of vertical force without opening.
• Latch Plate: Typically steel stamped and treated for corrosion resistance; it must engage the buckle mechanism reliably under any orientation.

Retractor Mechanism

• Inertia Locking: A weighted pendulum or ball engages a locking pawl when deceleration exceeds ~0.5 g, preventing further webbing payout.
• Webbing-Sensitive: A centrifugal clutch locks the spool if the webbing is pulled too rapidly (e.g., during a crash).
• Vehicle-Sensitive: A pendulum locks the spool based on vehicle deceleration, independent of webbing movement.

Anchor Points & Hardware

• Frame Integration: Webbing ends are looped through or bolted to reinforced steel brackets on the B-pillar and floor pan. Each anchor must pass static pull tests of 18 kN or more.
• Adjusters & Height Rails: Allow belt position optimization for occupants of different sizes, ensuring correct lap and shoulder placement.

Together, these parts create a system that threads through life’s unpredictability—extreme weather, everyday wear, and the rare but critical collision.

How Do Seatbelt Webbing Retractors and Locking Mechanisms Work?

Seatbelt retractors use two locking principles: webbing-sensitive (locks when the belt is pulled quickly) and vehicle-sensitive (locks when the car decelerates sharply). A centrifugal clutch and/or pendulum engages a pawl, stopping the spool from releasing more belt. Meanwhile, a spring-loaded mechanism keeps the belt snug during normal motion.

Retractors are the “brains” of the seatbelt system, controlling slack under everyday conditions and locking instantly when danger strikes.

Webbing-Sensitive Locking

• Centrifugal Clutch: Inside the retractor spool sits a small flyweight. Under normal belt pulls (e.g., leaning forward), the flyweight stays retracted against spring pressure, allowing free spool. But if the webbing is jerked beyond ~0.5 m/s, centrifugal force pushes the weight outward, engaging a ratchet on the spool and instantly halting belt payout.
• Advantages & Limitations: This method responds directly to occupant movement, but can occasionally lock unintentionally (e.g., rapid seat entry) or fail to lock if the pull is slower than the threshold.

Vehicle-Sensitive Locking

• Pendulum Mechanism: A small pendulum (or ball) swings under deceleration, pivoting to lock the spool when the vehicle experiences forces above ~0.3–0.5 g.
• Independent of Webbing Pull: Even if an occupant leans slowly, a sudden crash triggers the pendulum, preventing further belt extension.

Dual-Locking Retractors

• Combined Approach: Most modern cars use both webbing- and vehicle-sensitive systems for redundancy. If one fails or isn’t triggered, the other locks the belt.

Emergency Locking Retractors (ELR) vs. Automatic Locking Retractors (ALR)

• ELR: Allows free movement until a sudden force locks the belt; common for front seats.
• ALR: Once pulled all the way out and allowed to retract a notch, it locks permanently—useful for installing child seats.

Maintenance & Quality Checks

• Service Intervals: Manufacturers recommend inspecting retractors every 5 years or after any significant collision.
• Fail-Safe Design: Even if springs lose tension or small parts corrode, the locking pawl defaults to engage under minor force changes, ensuring safety.

This dual-locking philosophy ensures that whether you’re thrown forward in a crash or simply adjust your seating, the belt stays optimally positioned—never slack when you need restraint most.

What Role Do Webbing Pretensioners and Load Limiters Play in Safety?

Pretensioners use pyrotechnic charges or mechanical springs to tighten the belt at crash onset, removing slack in milliseconds. Load limiters allow controlled webbing payout under high forces, capping chest loads to about 4–6 kN. Together, they optimize occupant restraint by reducing forward movement while preventing belt-induced injuries.

Pretensioners and load limiters are the “smart” enhancements that evolved seatbelts beyond mere straps.

Pretensioners

• Pyrotechnic Systems: Triggered by crash sensors, a small explosive charge drives a piston that reels in the webbing in under 50 ms—before peak crash forces act on the occupant.
• Mechanical (Clock-Spring) Systems: Use pre-tensioned springs that unwind to tighten the belt when inertia triggers the retractor.
• Benefits: Eliminates up to 10–15 cm of slack, reducing head and torso excursion by ≈30%, especially vital in frontal impacts.

Load Limiters

• Function: Located between the pretensioner and anchor point, these devices allow a measured stretch (typically 20–30 mm) once belt force exceeds a preset threshold (~4–6 kN).
• Injury Mitigation: By permitting controlled webbing payout, load limiters prevent chest compression injuries that occur if the belt remains completely rigid.
• Active vs. Passive: Some systems adjust the release threshold based on crash severity data, while simpler units use calibrated fracture discs or torsion bars.

Integration with Airbags

• Synchronized Deployment: Modern ECUs coordinate pretensioner firing with airbag inflation, ensuring belts and bags share crash energy optimally.
• Adaptive Strategies: In severe crashes, pretensioners may fire earlier and load limiters may allow more stretch to protect frail occupants.

Real-World Impact

• Study Data: A 2023 IIHS report found vehicles with both pretensioners and load limiters saw a 50% reduction in moderate-to-severe injuries compared to belts alone.
• Regulatory Trends: Europe’s ECE R16 now mandates pretensioners and load limiters on all front seats; the U.S. is set to follow by 2026.

By combining the rapid tightening of pretensioners with the protective flex of load limiters, manufacturers strike the critical safety balance: restrain motion, yet spare the body from excessive belt forces.

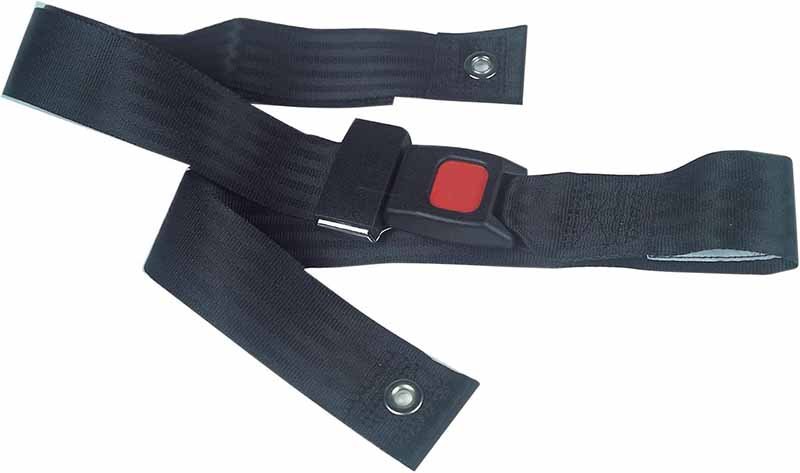

How Is Seatbelt Webbing Manufactured for Strength and Durability?

Seatbelt webbing is produced by weaving continuous high-tenacity polyester or nylon filaments on precision looms, then heat-setting the fabric to lock in fiber orientation. It undergoes rigorous static tensile tests (≥22 kN), dynamic fatigue cycling (≥100 000 cycles), and environmental aging (UV, salt spray) to ensure minimal elongation, consistent locking performance, and long-term resistance to abrasion and sunlight.

Raw Material Selection & Yarn Preparation

• High-Tenacity Filaments: Manufacturers start with polyester (most common) or nylon yarns rated at 900–1 500 dtex, chosen for their tensile strength (≥22 kN) and controlled elongation (≤15 % under 1 kN).
• Moisture & UV Considerations: Polyester offers excellent UV resistance and negligible moisture absorption; nylon may be used selectively where higher energy absorption is required, but must be stabilized against hydrolysis.

Precision Weaving & Heat-Setting

• Weaving Process:
  • Looms: Rapier or air-jet looms produce webbing at speeds up to 300 m/min with width tolerances of ±0.5 mm.
  • Weave Patterns: A tight basket or herringbone weave maximizes fiber contact, distributing loads evenly and preventing localized stress concentrations.
• Heat-Setting:
  • After weaving, belts pass through infrared or convection ovens at ≈180 °C to lock fiber crimps, stabilize dimensions, and reduce residual stresses. This step ensures the webbing retains shape and width under repeated loading.

Surface Treatments & Coatings

• Abrasion Resistance: Silicone or PTFE finishes reduce friction where webbing contacts buckles and retractors, extending service life.
• UV Stabilizers: Added during finishing to prevent polymer chain degradation under sunlight exposure, critical for vehicles operating in high-sunlight regions.
• Flame-Retardant Additives: For specialty or aerospace applications, halogen-free fire-retardant treatments ensure compliance with FAA and other strict standards.

Quality Assurance & Testing

1. Static Tensile Testing: Samples are pulled at 300 mm/min until failure; webbing must exceed 22 kN for driver/front-passenger belts.
2. Dynamic Fatigue Cycling: A reciprocating rig simulates continuous belt spool-in/spool-out motions; after 100 000 cycles, elongation and lock function are verified.
3. Environmental Aging: UV chambers (ASTM D4329) and salt-spray exposure assess long-term durability; treated webbing must retain at least 90 % of original strength.

Customization & Traceability at Szoneier

• Low-MOQ Pattern Weaving: Advanced jacquard looms allow logo and color integration at orders as small as 50 pieces.
• Full Batch Traceability: Every roll of webbing is tagged with production date, material batch, and process parameters—ensuring quality audits and simplified recall if needed.
• Free Samples & Rapid Prototyping: Clients receive sample swatches for approval within days, accelerating design cycles and ensuring the final product meets both functional and aesthetic requirements.

By controlling each step—from filament selection through precision weaving, heat-setting, surface finishing, and exhaustive testing—Szoneier guarantees seatbelt webbing that not only meets the toughest global safety regulations but also endures real-world conditions without compromise.

Which Testing Standards and Regulations Govern Seatbelt Webbing Performance?

Seatbelt webbing must comply with FMVSS 209/208 in the U.S. and ECE R16 in Europe, requiring static tensile strength tests (≥22 kN), dynamic crash tests, and environmental durability assessments. Additional ISO and ASTM standards address abrasion, UV exposure, and flammability. Manufacturers submit belts for homologation, including full-scale sled tests and real-vehicle crash validations to confirm occupant protection.

Global harmonization of belt standards ensures universal occupant protection:

1. FMVSS 209 & 208 (U.S.)
   • FMVSS 209: Specifies webbing strength, elongation, and fatigue requirements. Webbing must resist ≥22 kN at slow pull rates and show less than 15% elongation under 1 kN load.
   • FMVSS 208: Defines occupant crash protection criteria, integrating seatbelt performance with airbag deployment and vehicle structure.
2. ECE R16 (Europe)
   • Static Tests: Similar tensile and elongation mandates, with additional requirements for pretensioners and load limiters.
   • Dynamic Sled Tests: Uses anthropomorphic test devices (ATDs) to measure chest deceleration, head excursion, and belt forces under standardized impact scenarios.
3. ISO Standards
   • ISO 3795: Flammability of interior materials, including webbing.
   • ISO 1161: Lashing strap performance—often referenced for heavy-duty belt applications.
4. ASTM & JIS Protocols
   • Abrasion Resistance: ASTM D4966 Martindale tests the belt surface against wear.
   • UV Aging: JIS L0842 simulates sun exposure to verify colorfastness and strength retention.
5. Homologation Process
   • Type Approval: Manufacturers submit samples to certified labs for initial approval.
   • Production Audits: Periodic factory inspections ensure consistent quality.
   • In-Vehicle Validation: Randomly selected production belts undergo real-world crash testing.
6. Emerging Regulations
   • Advanced Belt Tech: Upcoming standards will address inflatable belts and integrated sensors.
   • Sustainability Metrics: Lifecycle assessments may soon be required to quantify carbon footprint and recyclability.

Adherence to these rigorous standards gives fleet managers, OEMs, and end customers confidence that every Szoneier belt not only looks custom but performs to the highest global safety benchmarks.

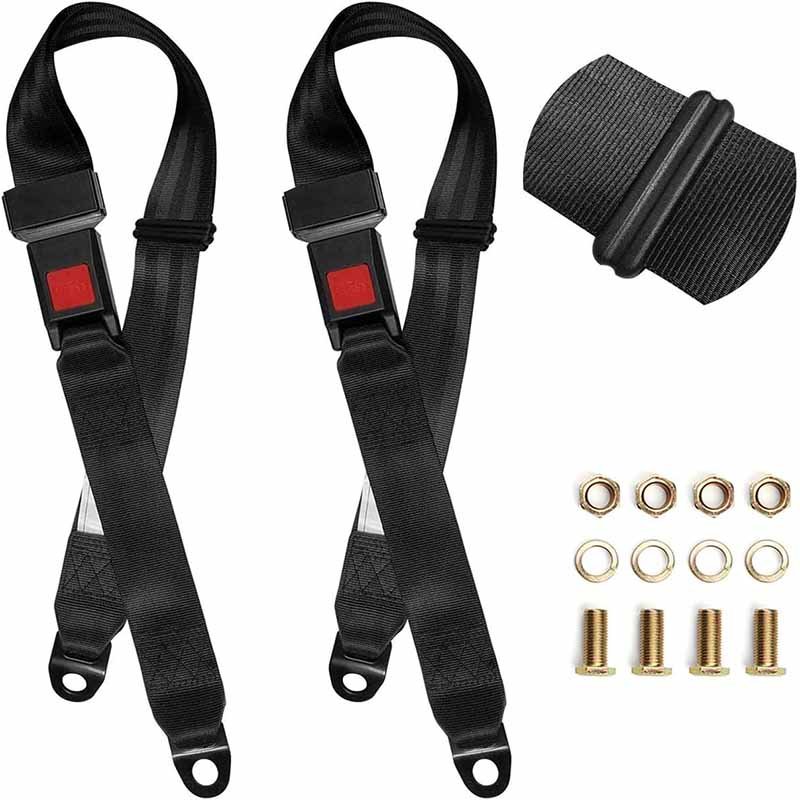

How Do Advanced Webbing Technologies Enhance Protection?

Advanced seatbelt technologies include inflatable webbing that distributes force across wider areas, adaptive pretensioners that adjust timing based on crash data, and electronic pre-crash systems that tighten belts when sensors detect an imminent collision. These innovations reduce occupant movement by up to 50% and decrease chest loads by 20%, providing personalized protection in various crash scenarios.

Innovation never rests in occupant safety:

Inflatable Webbing Belts

• Design: A small air bladder embedded within the belt inflates on impact, increasing surface area by ~50% and reducing pressure on the chest.
• Use Case: Found in rear center seats of premium vehicles, inflatable belts reduce occupant movement in both frontal and side impacts.

Adaptive Pretensioners

• Sensor Fusion: Combine radar, accelerometers, and camera data to predict crash severity.
• Variable Firing: In mild collisions, pretensioners activate gently; in severe events, they fire more aggressively and earlier—optimizing belt tension for each scenario.

Electronic Pre-Crash Systems

• Brake-Based Activation: If ABS sensors detect emergency braking (>0.7 g), seatbelts pre-lock to minimize occupant movement.
• Integration with Advanced Driver-Assistance Systems (ADAS): Coordinates with lane-keep assist and automatic emergency braking.

Smart Webbing Materials

• Shape-Memory Fibers: Under impact heat, fibers stiffen to absorb energy, then return to original form—enabling multi-impact resilience.
• Embedded Sensors: Track belt usage, tension patterns, and environmental exposure, sending maintenance alerts via vehicle telematics.

Future Directions

• Connected Safety Ecosystems: Seatbelts that automatically communicate crash data to emergency services.
• Biometric Comfort Adjustments: Belts that adjust based on occupant size, posture, and health data (heart rate, etc.).

By weaving intelligence directly into the belt, Szoneier stands at the forefront—offering customization not just in color and logo, but in cutting-edge safety that adapts to every journey.

Do Webbing-Based Seatbelts Really Prevent Injuries and Save Lives?

Decades of crash data confirm seatbelt webbing reduces fatality risk by 50% and serious injuries by up to 60%. Regions with mandatory belt laws see compliance rates above 90% and corresponding drops in road-fatality statistics. Independent studies attribute over 100,000 lives saved annually in the U.S. alone to effective seatbelt restraint.

Real-world statistics validate engineering excellence:

Fatality Reduction

• NHTSA Data (2024): Seatbelt use saved an estimated 14,955 lives in passenger vehicles in the U.S. .
• IIHS Reports: Countries enforcing belt laws have road-side fatality rates 40–60% lower than those without.

Injury Mitigation

• Chest & Head Injuries: Proper belt use combined with airbags cuts severe chest trauma by ≈60% and head injuries by ≈50%.
• Spinal Injury Reduction: Lap belt webbing holds pelvis stable, preventing load concentration on the spine.

Compliance & Legislation

• Usage Rates: After primary enforcement laws, belt compliance jumps from 70% to 92% on average.
• Economic Impact: Each prevented injury saves insurers and healthcare providers an average of $15,000 in medical costs.

Case Studies

• Fleet Safety Programs: Truck fleets deploying high-visibility custom webbing from Szoneier report a 30% drop in occupant injuries.
• Consumer Surveys: 95% of drivers rank belt comfort and confidence in webbing quality as key factors in purchase decisions.

These numbers aren’t just statistics—they’re the measure of everyday people returning home safely. When brands choose Szoneier’s custom-engineered webbing, they invest in proven, life-saving technology.

How Should You Properly Inspect, Maintain, and Replace Seatbelt Webbing?

Inspect webbing for frays, cuts, discoloration, or stiffness every 6 months. Retractor springs should return smoothly; locking should engage on a sharp pull. Replace any belt showing damage or after any moderate-to-severe crash. Follow manufacturer guidelines—typically a 10-year service life or sooner if environmental exposure or wear indicators appear.

Routine care ensures lasting protection:

Visual Inspection

• Webbing Condition: Look for loose threads, abrasions, or chemical stains.
• Hardware Integrity: Ensure buckles latch securely and release without hesitation.

Functional Tests

• Retractor Operation: Belt should retract steadily and lock when jerked sharply.
• Adjustability: Height adjusters and anchor bolts must be tight, without play.

Cleaning Guidelines

• Mild Detergent: Use soapy water; avoid bleach and solvents that degrade fibers.
• Air Dry Only: High heat from dryers can weaken polymer chains.

Replacement Triggers

• Crash Aftermath: Any seatbelt involved in a crash must be replaced, even if undamaged.
• Age & Exposure: Replace belts older than 10 years or those exposed to UV, chemicals, or extreme moisture.

Szoneier’s Maintenance Solutions

• Spare Parts Supply: Low-MOQ anchors, buckles, and webbing rolls ready for prompt shipment.
• Custom Wear Indicators: Color-striped tracer yarn that fades at 30% elongation, signaling replacement time.

By treating your webbing with the same respect as any safety-critical component, you ensure it remains a trusted guardian—ride after ride.
