How Is Quality Inspection Conducted in Webbing Production? Key Standards & Common Testing Methods Explained

In an industry where strength, durability, and safety cannot be compromised, webbing quality inspection stands at the very heart of production excellence. Whether it’s a heavy-duty lifting sling in construction, a child-safe harness in outdoor gear, or a decorative strap on a premium backpack, every meter of webbing must reliably perform under stress, environmental exposure, and repeated use. Achieving this starts with a rigorous inspection protocol encompassing global standards, precise testing equipment, and expert judgment. By understanding each critical checkpoint, from material properties to finished‐product checks, manufacturers and buyers alike can rest assured that their webbing products will meet—and often exceed—expectations.

Quality inspection in webbing production combines adherence to recognized standards (ISO 10361, ASTM D6775, MIL-DTL-[I] series) with systematic testing of tensile strength, abrasion resistance, dimensional accuracy, chemical resistance, and visual defect detection, ensuring every roll of webbing meets its intended performance and safety requirements.

As you delve deeper into these protocols, you’ll uncover not only the “how” but also the “why” behind each test—a journey that will transform the way you evaluate and specify webbing for your next project. From raw yarn selection to final package inspection, let’s explore the standards and methods that define world-class webbing quality—and hear the real-world tale of a marine-grade sling whose life-saving performance hinged on one critical test…

What Are the Industry Standards for Webbing Quality Inspection?

Industry standards such as ISO 10361 for textile slings, ASTM D6775 for general webbing, and various military specifications (e.g., MIL-DTL-83420) define required test methods, pass/fail criteria, and documentation protocols to ensure webbing meets performance, safety, and regulatory demands.

When it comes to webbing inspection, standards are the backbone that unifies global expectations. The most widely referenced is ISO 10361, which specifies testing procedures and acceptance criteria for textile slings used in lifting applications. Complementing ISO is ASTM D6775, addressing broader webbing applications—from cargo straps to pet leashes—by detailing methods for tensile, abrasion, and elongation testing.

Why multiple standards?

• Application-driven requirements: A sling lifting 5 tons differs vastly from a fashion strap. ISO 10361’s stringent safety factors (typically 7:1 or higher) far exceed those of decorative webbing.
• Geographic preferences: European OEMs often mandate ISO, while North American buyers may specify ASTM or a bespoke company standard.
• Regulatory compliance: Industries such as aerospace and defense require MIL-DTL specs, which include tests for salt spray, moisture, and extreme temperature cycling.

Critically evaluating standards reveals both strengths and limitations. For instance, ISO 10361 defines static tensile testing but does not cover dynamic fatigue under repeated loads—a gap some manufacturers fill with in-house cyclic tests. Similarly, ASTM D6775’s abrasion test (Taber) simulates wear but may not reflect real-life exposure to sharp edges or chemical contaminants. Therefore, many forward-thinking producers supplement these with bespoke protocols: accelerated UV aging chambers to mimic years of sun exposure in weeks, or chemical immersion tests for webbing used in marine or industrial cleaning applications.

By understanding not only what each standard mandates but also where it falls short, buyers can engage with manufacturers—like Szoneier—to tailor inspection suites that match precise end‐use demands.

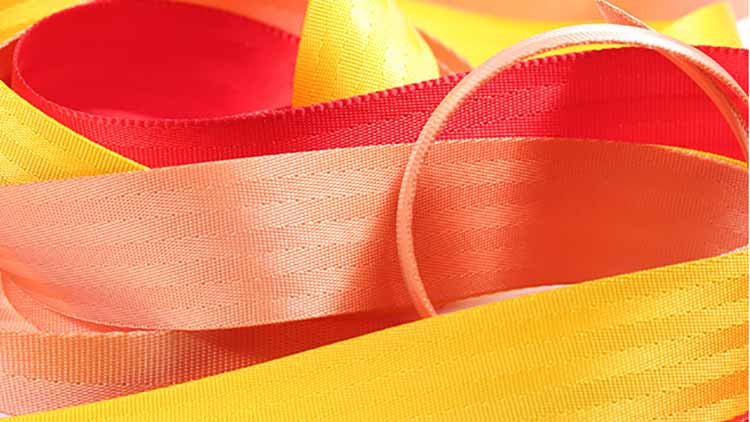

Which Material Properties Affect Webbing Performance and How Are They Tested?

Material properties such as fiber type (nylon, polyester, PP, cotton), weave density, and coating chemistry directly influence webbing’s strength, UV resistance, and flexibility; these are assessed via fiber composition analysis, microscopic weave inspection, and surface hardness or water‐absorption tests.

Fiber composition is the first determinant of a webbing’s capabilities. Nylon offers outstanding tensile strength and elasticity but can absorb up to 4% of its weight in water, potentially reducing performance when wet. Polyester resists UV degradation better and has lower hygroscopicity, making it ideal for outdoor straps. Polypropylene (PP) floats in water but has lower melting points and tensile strengths. Cotton—valued for comfort and aesthetics—lags behind synthetics in durability but appeals in eco-friendly applications.

To verify composition, manufacturers employ:

1. FTIR spectroscopy: Differentiates polymer types by measuring infrared absorption peaks.
2. Burn tests: A quick, low-tech method; nylon burns slowly with a blue flame and smells like celery, polyester melts and beads, cotton burns like paper.

Weave density and uniformity impact how loads distribute across fibers. A tight weave enhances tensile performance and abrasion resistance but may compromise flexibility. Microscopic analysis—using digital microscopes—measures pick count (threads per inch) and identifies weaving faults such as floats or mispicks. Statistical sampling (ASTM D3886) ensures representative coverage, where at least 1% of rolls undergo scrutiny.

Coatings and finishes (e.g., polyurethane, silicone, or PVC) enhance water resistance, flame retardancy, or grip. Testing methods include:

• Water absorption (ASTM D570): Immersing samples to quantify weight gain.
• Surface hardness (Shore A durometer): Evaluates coating toughness.
• Color fastness (AATCC 61): Assesses dye bleed under repeated laundering.

Critical perspective: While lab tests give valuable data, they may not capture complex field conditions. A UV chamber can simulate sunlight but cannot replicate abrasive dust plus UV plus rain simultaneously. Thus, top-tier manufacturers often deploy in-situ pilot runs, where sample webbing is installed on actual equipment for weeks, logging performance metrics to validate lab results.

By integrating rigorous lab protocols with real-world validation, Szoneier ensures every custom webbing solution is optimized for its intended environment—whether marine, military, or lifestyle.

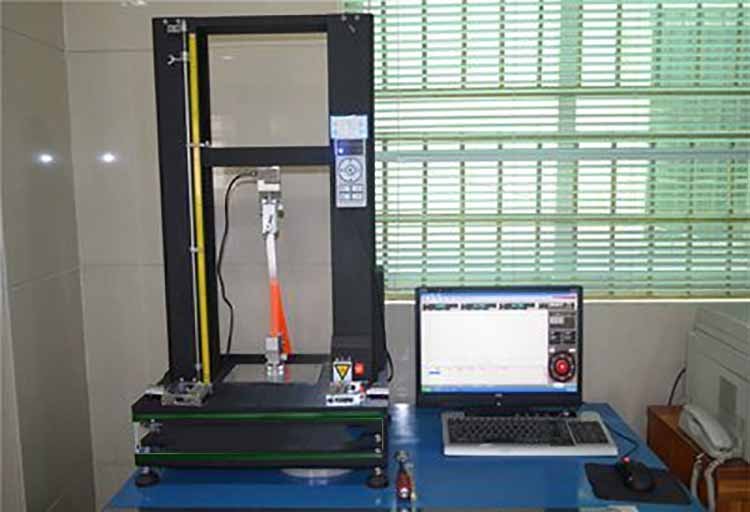

How Do Tensile Strength Tests Ensure Webbing Safety?

Tensile strength tests—conducted per ISO 10361 or ASTM D6775—involve pulling a webbing sample until failure, measuring maximum load and elongation, ensuring it meets safety factors (typically 5:1 to 10:1) above its rated working load.

Tensile testing is the cornerstone of safety verification in webbing production. Without knowing the maximum load a strap can sustain, there’s no basis for defining working load limits or safety factors. Standard practice involves cutting five or more specimens of defined length—often 200 mm—and clamping them in a universal testing machine. The clamps move apart at a constant rate (e.g., 300 mm/min for ISO 10361), recording load versus elongation until the webbing snaps.

Key metrics gathered include:

• Breaking strength (kN or lbs): The peak force before rupture.
• Elongation at break (%): Indicates ductility; higher elongation can signal energy absorption capacity, desirable in safety harnesses to reduce shock.
• Load at 5% elongation: Used in some specs to gauge stiffness.

Safety factors translate laboratory data into real-world guarantees. A 7:1 safety factor on a webbing rated for 1 ton means it must withstand at least 7 tons in breaking strength tests. International lifting slings may use 7:1 or 10:1; personal protective equipment (PPE) harnesses often demand even higher factors due to human‐life risk.

Potential pitfalls:

• Specimen orientation: Cuts parallel to warp threads differ from those at bias; most standards test warp direction, but some applications (seat belts, cargo nets) see multi-directional stress.
• Environmental conditioning: Temperature and humidity affect polymer behavior. ISO requires conditioning at 23 ± 2 °C and 50 ± 5% RH for 24 hours—but what about arctic or desert applications? Szoneier addresses this by offering optional tests at –40 °C or +80 °C to replicate extreme environments.

Technological advances now allow digital image correlation (DIC), which tracks full‐field strain on the webbing surface, highlighting stress concentrations where microscopic flaws could initiate failure. Combining classical tensile tests with DIC data provides a richer understanding of failure modes, empowering designers to tweak weave patterns or fiber blends for optimal performance.

Through meticulous tensile testing—and supplementing standards with advanced techniques—manufacturers like Szoneier deliver webbing that not only passes certification but also excels in the field.

What Are the Methods for Assessing Abrasion and Wear Resistance?

Abrasion resistance is evaluated using standardized tests such as Taber (ASTM D4966) and Martindale (ISO 12947), which subject webbing samples to controlled rubbing cycles; the number of cycles to visible wear indicates durability under repeated friction.

Abrasion can drastically reduce webbing life, leading to frayed edges, fiber breakage, and eventual failure. Two primary methods dominate the testing landscape:

1. Taber Abrasion (ASTM D4966):
   • Procedure: A circular webbing sample is mounted on a rotating platform. Weighted abrasive wheels traverse its surface for a set number of cycles (e.g., 1,000 to 10,000).
   • Outcome: Measure weight loss or visually inspect for wear holes.
2. Martindale Abrasion (ISO 12947):
   • Procedure: A sample clamped in a holder rubs against a standard abrasive cloth under a specified pressure (e.g., 12 kPa), with linear or circular motion.
   • Outcome: Count cycles until two fibers break within a 1 cm² area.

Critical insights:

• Abrasion vs. real abrasion: Lab tests isolate friction but cannot account for combined chemical attack plus abrasion (e.g., saltwater abrasion on marine slings). Szoneier offers combined wear chambers that spray saline solution while fibers rub—mimicking true sea-spray conditions.
• Edge vs. face abrasion: Many webbing failures initiate at cut edges. Specialized edge abrasion tests (e.g., DIN 53387) focus on how straps behave when they slide over sharp corners of hardware.
• Influence of coating: Coatings that improve UV resistance can sometimes soften, reducing abrasion resistance. A balance must be struck, often via hardness profiling using Shore durometers across the coated surface.

Emerging approaches include laser scanning microscopy post-abrasion to map fiber damage at micro scales, revealing subtle changes invisible to the naked eye. Data analytics on abrasion cycles across thousands of webbing batches allow predictive modeling: “Given material X and coating Y, expect 20% performance drop after 30,000 cycles.”

By combining standard tests with environmental conditioning and advanced analytics, Szoneier ensures each webbing batch meets—and often exceeds—the abrasion resilience required by its intended application.

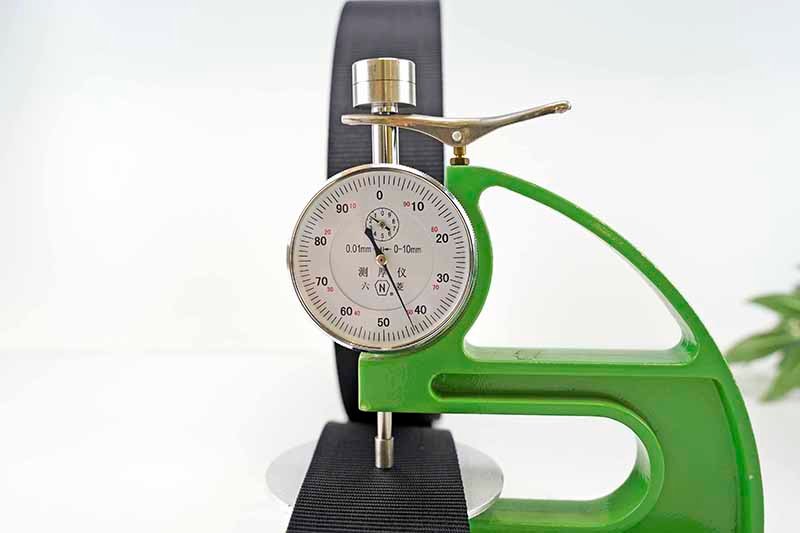

How Is Dimensional Accuracy and Thickness of Webbing Verified?

Dimensional checks use precision calipers and laser micrometers to measure webbing width, thickness, and edge straightness against tolerances (±0.5 mm); regular gauge calibration and statistical process control ensure consistent production.

Accurate dimensions ensure webbing fits hardware properly and distributes load evenly. Even a 1 mm deviation can cause binding in cam buckles or uneven stress in sewn assemblies. Two principal tools guide this inspection:

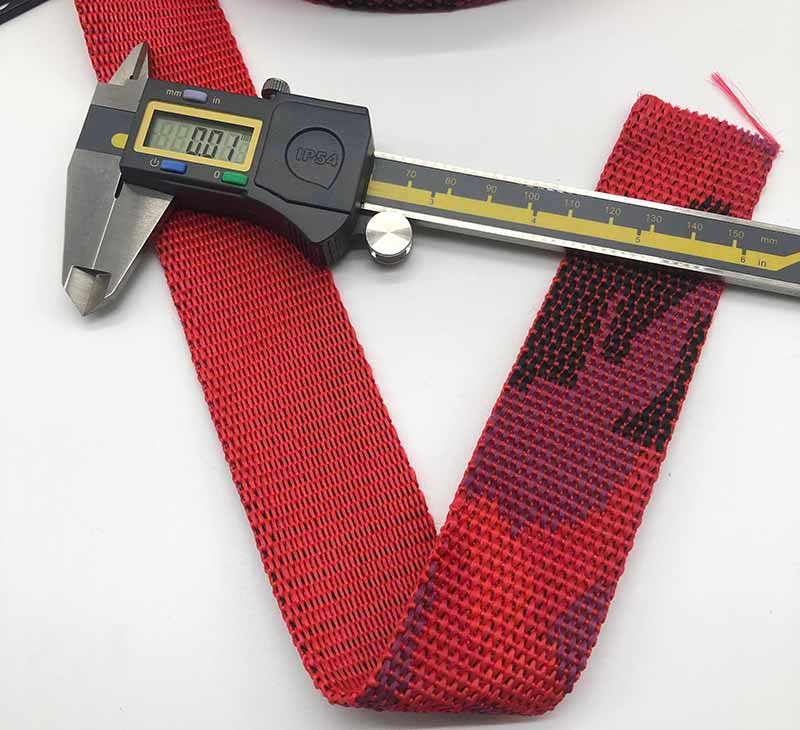

1. Digital Calipers:
   • Usage: Operators measure width and thickness at multiple points along a sample.
   • Precision: Up to 0.01 mm resolution.
2. Laser Micrometers:
   • Usage: Non‐contact measurement of cross-sectional profiles, capturing thickness variations and edge profiles.
   • Advantage: Continuous scanning over lengths, generating thickness vs. length graphs.

Statistical Process Control (SPC):

By charting measurements on control charts (e.g., X̄–R charts), manufacturers spot trends—like creeping width drift when looms wear—before they exceed tolerances. This proactive approach reduces waste and rework.

Critical perspective: While lab measurements are precise, on-line monitoring offers real-time feedback. Laser line scanners installed immediately after the dyeing stage detect skew or thickness variations, triggering automatic loom adjustments. Though capital‐intensive, this inline QC pays off in high-volume runs with narrow tolerances (common in automotive seatbelt webbing).

Furthermore, environmental factors—temperature and humidity—shrink or swell fibers. Controlled conditioning rooms (23 ± 2 °C, 50 ± 5% RH) are essential prior to dimensional checks, but Szoneier goes further for specialized products by simulating tropical (30 °C, 80% RH) or arid (40 °C, 20% RH) climates to guarantee fit under any conditions.

Combining manual precision tools, inline automation, and climate simulation, modern webbing producers achieve the dimensional consistency demanded by high-performance applications.

Which Chemical and Environmental Tests Are Required for Webbing Compliance?

Chemical tests (e.g., extractables per ISO 14887, Azo-dye screening) and environmental aging (UV per ASTM G154, salt spray per ASTM B117) verify that webbing resists degradation, meets safety regulations, and maintains performance in harsh conditions.

Webbing often faces chemical exposure—acids, alkalis, oils—and environmental stressors like sunlight and seawater. Key tests include:

1. Chemical Exposure:
   • Extractables & Leachables (ISO 14887): Samples immersed in solvents mimic contact with oils or cleaning agents; post-immersion tensile tests reveal strength loss.
   • Azo‐dye Screening (EU Reg. No 1907/2006): Ensures dyed webbing contains no hazardous aromatic amines.
2. UV Aging:
   • ASTM G154: Alternating UV exposure and condensation cycles simulate sunlight and dew. Batches tested for color fade, tensile decline, and surface cracking.
3. Salt Spray (ASTM B117):
   • Procedure: Webbing clamped in a chamber misted with 5% NaCl at 35 °C for 96–500 hours.
   • Outcome: Visual corrosion of metal-coated fibers (if any) and coating degradation on textiles.

Real-world conditions often combine chemical and mechanical wear—for example, deck webbing on ships sees salt, UV, and foot traffic. To mimic this, Szoneier offers combined chambers where samples undergo cyclic abrasion inside a saline fog plus UV light, better approximating marine environments.

Critical evaluation: Standard tests run in isolation, yet true service conditions rarely are singular. Hence, leading manufacturers trend toward accelerated life-cycle testing (ALCT), which pieces together chemical exposure, UV, abrasion, and temperature cycles over weeks rather than years.

Additionally, emerging regulations around microplastics and environmental toxins push for biodegradation and recyclability tests (ISO 14855, ISO 8130). While most synthetic webbings resist natural breakdown, exploration of bio-based polymers and inherently recyclable coatings is underway. Progressive producers already offer take-back programs, where used webbing is chemically depolymerized and remade—closing the loop in a circular economy.

By staying ahead of both regulatory demands and real-world complexities, Szoneier crafts webbing solutions that last longer, perform better, and respect the planet.

How Do Visual and Defect Inspections Detect Manufacturing Flaws?

Visual inspections—augmented by digital vision systems—identify defects like misweaves, color streaks, knots, and coating voids; 100% camera‐based checks or AQL sampling ensure batch integrity before shipment.

Even if all lab tests pass, aesthetic or subtle defects can undermine functionality and brand reputation. Visual inspection remains the final quality gate:

1. Manual AQL Sampling (ANSI/ASQ Z1.4):
   • Inspectors examine a statistically significant sample (usually 2–5%) of rolls under daylight‐balanced lamps, checking for visual flaws. Acceptable Quality Level (AQL) defines the maximum defect rate (often 1.0% or lower for critical applications).
2. Automated Vision Systems:
   • High‐speed cameras scan entire roll widths, detecting anomalies—color variation, missing yarns, coating pinholes—down to 0.1 mm resolution. AI algorithms classify faults and log their positions for targeted rework.

Balancing speed and accuracy: Manual checks can fatigue inspectors, leading to missed defects. Automated systems catch 100% of the material but require upfront investment. Szoneier utilizes a hybrid approach: inline cameras flag suspect sections, which then undergo manual verification by skilled QC staff—ensuring both coverage and expert judgment.

Critical mindset: While AQL provides statistical confidence, it may let occasional critical defects slip. For life-critical webbings (e.g., fall-arrest harnesses), some manufacturers enforce zero-defect policies, inspecting 100% manually or automatically. Though costlier, zero-defect protocols align with industries where failure is not an option.

By combining human expertise, AI-driven vision, and rigorous statistical sampling, Szoneier’s defect inspection process upholds both functional integrity and aesthetic excellence.

What Best Practices Can Manufacturers Adopt to Improve Inspection Efficiency?

Implementing inline sensors, SPC dashboards, AI vision, and structured operator training reduces inspection bottlenecks; continuous improvement via root-cause analysis and digital record-keeping streamlines quality control and shortens lead times.

Efficiency in quality inspection translates directly into cost savings, faster delivery, and higher customer satisfaction. Here are proven best practices:

1. Inline Monitoring:
   • Sensors & Gauges: Laser micrometers and tension sensors feed real-time data to control systems, automatically adjusting loom settings.
   • Benefit: Reduces off-spec production before it happens.
2. Statistical Process Control (SPC):
   • Dashboards: Visualize key metrics (tensile strength means, abrasion cycle counts, dimensional trends) on shop-floor screens.
   • Actionable Alerts: When metrics approach control limits, supervisors intervene—preventing scrap.
3. AI-Enabled Vision:
   • Anomaly Detection: Machine learning models trained on historical defect images flag novel faults instantly.
   • Data Feedback Loop: Defect data informs process improvements, weaving parameter tweaks, and operator training.
4. Structured Training & Certification:
   • Operator Skill Matrix: Certify each inspector on test equipment use, visual defect grading, and SPC interpretation.
   • Regular Refreshers: Quarterly workshops ensure teams stay current with evolving standards.
5. Digital Record-Keeping:
   • Traceability: QR codes on each roll link to inspection reports—date, operator, test results, corrective actions.
   • Customer Transparency: Buyers can verify batch data instantly, building trust.
6. Root-Cause Analysis (RCA):
   • Fishbone Diagrams & 5 Whys: When out-of-spec occurs, RCA pinpoints whether raw material variability, loom maintenance, or environmental factors are at fault.
   • Continuous Improvement: Documented CAPAs (Corrective and Preventive Actions) drive Kaizen cycles.

Critical reflection: Lean principles urge minimizing waste—in inspection time and material. However, over-automation risks underappreciating nuanced defects that human experts notice. A balanced ecosystem—where inline automation handles bulk screening and humans perform nuanced verification—optimizes both speed and reliability.

By adopting these practices, manufacturers like Szoneier streamline QC processes, reduce lead times by up to 20%, and maintain the flexibility needed for low-MOQ custom orders—all while ensuring the highest quality standards.

Conclusion

From raw fiber selection to final defect scanning, a comprehensive quality inspection strategy is indispensable for any webbing producer or buyer. By aligning with global standards (ISO, ASTM, MIL-DTL), leveraging advanced testing methods (DIC, AI vision, combined environmental chambers), and embracing efficiency best practices (SPC, inline automation, RCA), manufacturers deliver webbing products you can trust—whether for heavy-lift slings, marine safety lines, or stylish bag straps.
