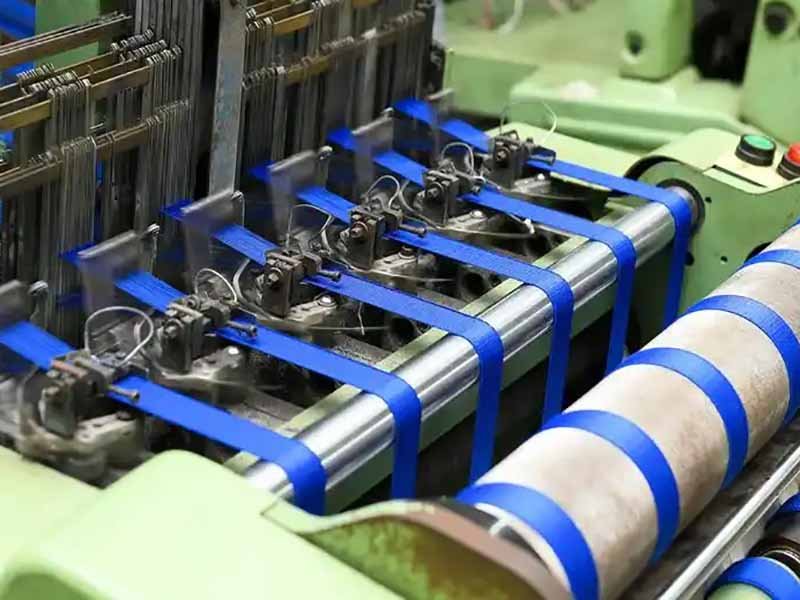

How Is Nylon Webbing Made? A Complete Manufacturing Process Explained

Nylon webbing is the unsung hero in countless products—from safety harnesses and outdoor gear to pet leashes and heavy‑duty straps, its high strength, flexibility, and durability make it indispensable. But have you ever wondered what goes on behind the scenes to transform raw nylon polymer into the versatile webbing we rely on? In this article, we’ll peel back the curtain on every stage of the manufacturing process, revealing how precision extrusion, advanced weaving techniques, and specialized finishing treatments combine to deliver webbing that meets the highest industry standards. Nylon webbing is manufactured by extruding nylon pellets into filaments, spinning and texturizing yarns, weaving them into specific patterns (plain, twill, jacquard), heat‑setting for dimensional stability, dyeing or printing for color, and applying functional coatings like PU or reflective finishes, followed by rigorous quality tests for strength and colorfastness.

From polymer selection to the final quality checks, each step demands expertise and strict control. Imagine a tiny polymer pellet heated, drawn into silky filaments, then intricately woven into webbing strong enough to hold tons. Stick around as we follow the journey of nylon webbing, and learn how Szoneier’s rapid sampling and low‑MOQ customization can bring your next project to life—no matter how specialized.

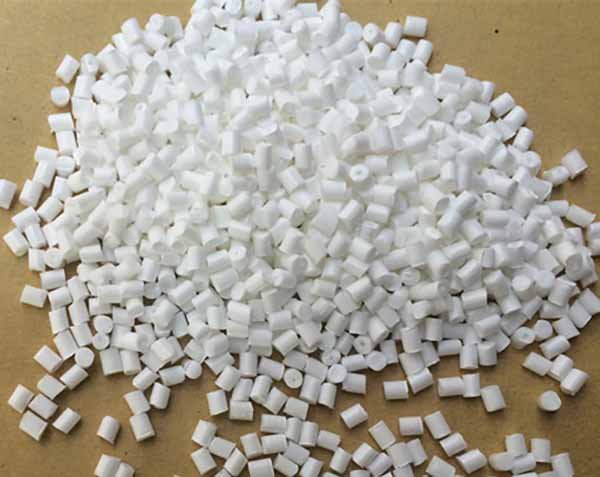

What Raw Materials Are Essential for Nylon Webbing Production?

Nylon webbing starts with nylon polymer—commonly PA6 or PA66—blended with additives for UV resistance, flame retardancy, or color. High‑quality pellets ensure consistent melting, extrusion, and filament strength, forming the foundation of durable, high‑performance webbing. The backbone of any nylon webbing lies in the polymer itself. Polyamide 6 (PA6) and polyamide 66 (PA66) are the two most common grades. PA6 offers good flexibility and moisture absorption, making it ideal for applications requiring slight stretch and comfort, such as backpack straps and pet collars. On the other hand, PA66 has a higher melting point and tensile strength, lending itself well to safety harnesses, industrial lift slings, and automotive seat belts.

Beyond polymer choice, manufacturers often blend in functional additives:

• UV Stabilizers: Prevent premature degradation under sunlight—critical for outdoor and marine uses.
• Flame Retardants: Meet UL94 or ISO 6941 standards for applications in firefighting or protective equipment.
• Color Masterbatches: Pre‑dispersed pigments ensure uniform hue and eliminate dyeing inconsistencies.

Selecting premium pellets from reputable suppliers minimizes impurities that can clog spinnerets or weaken filaments. At Szoneier, we partner with certified raw‑material vendors to guarantee each batch meets strict ISO 9001 quality metrics. This proactive approach reduces downstream defects, ensuring consistent filament diameter, tensile strength, and elongation—parameters that translate into reliable, long‑lasting webbing for all your custom needs.

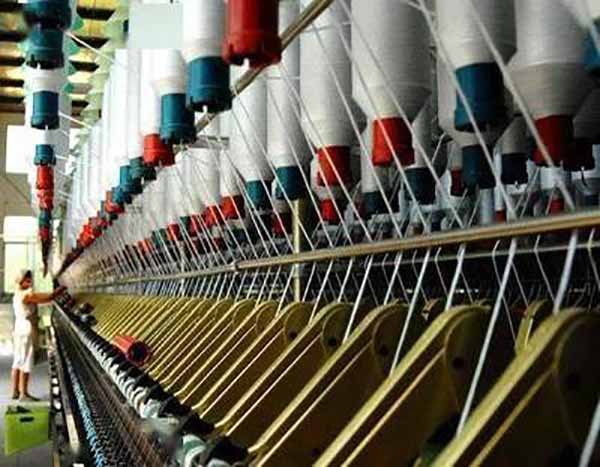

How Are Nylon Filaments Extruded and Spun into Yarn?

Extrusion involves melting nylon pellets and forcing the polymer through spinnerets to form continuous filaments, which are then cooled, drawn, and texturized—enhancing strength, elasticity, and surface texture suited for weaving. Extrusion is the first transformative step where raw nylon becomes usable filaments. In a precision extruder, polymer pellets are fed into a heated barrel, melted, and pressurized. The molten polymer passes through a spinneret—an array of tiny holes—that shapes it into multiple continuous filaments.

Key extrusion parameters:

• Temperature Control: Zones range from 240–280°C (for PA66) or 220–250°C (for PA6). Precise heat profiles ensure polymer chains align properly.
• Pressure Regulation: Uniform pressure across spinneret holes prevents filament diameter variation.

Once extruded, the hot filaments enter a cooling chamber—often assisted by air jets or water baths. Following cooling, the yarn is drawn through a set of godet rollers to align molecular chains, significantly boosting tensile strength (up to 50% improvement). Texturizing processes—such as false‑twist or air‑jet texturizing—introduce crimps, enhancing elasticity and bulk, crucial for webbing flexibility and resilience.

Szoneier’s advanced extrusion lines feature automated monitoring systems, capturing real‑time data on temperature, pressure, and filament speed. Any deviation triggers instant alerts, ensuring every spool of yarn meets the exact cocoon of strength and consistency required for downstream weaving operations.

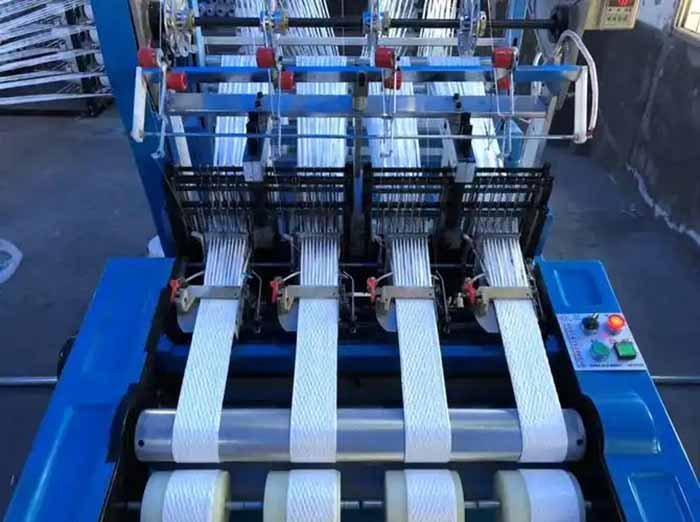

Which Weaving Techniques Are Used to Form Webbing?

Webbing uses various weave structures—plain for balanced strength, twill for a softer feel, and jacquard for intricate patterns—achieved through warp preparation, draw‑in, and precise loom control to meet diverse application requirements.

Weaving transforms individual nylon yarns into the flat, continuous straps known as webbing. The choice of weave affects not only aesthetics but also mechanical properties:

• Plain Weave: Each weft thread crosses over and under alternating warp threads, yielding a simple, tight structure. It offers balanced tensile strength in both directions, making it ideal for load‑bearing applications such as safety belts.
• Twill Weave: Characterized by a diagonal rib pattern, twill weaves allow better drape and a softer hand feel while retaining considerable strength. Many fashion‑oriented and comfort‑driven webbing straps—like those in high‑end backpacks—use twill structures.
• Jacquard Weave: Utilizing computerized dobby or jacquard looms, this method allows complex patterns, logos, and text to be woven directly into the webbing. It’s perfect for branding and decorative applications.

Weaving Workflow:

1. Warp Preparation: Hundreds of yarns are wound onto warp beams. Tension and spacing are carefully calibrated.
2. Drawing‑In: The warp yarns are threaded through heddles and reed dents, defining the weave density and pattern.
3. Loom Setup: Modern shuttle‑less rapier or air‑jet looms weave at speeds exceeding 500 m/min. Computerized controls adjust shed size and weft insertion rate for precision.

Szoneier’s facility hosts a mix of high‑speed looms and specialized jacquard machines, enabling anything from simple 20 mm straps to 100 mm heavy‑duty lift slings with embedded logos. Our in‑house engineers optimize loom programs for each design, ensuring minimal waste and consistent quality across production runs.

How Is Heat Setting Applied to Stabilize Webbing Dimensions?

Heat setting locks in webbing dimensions and prevents shrinkage by exposing woven straps to controlled high temperatures (typically 150–200°C) for a set dwell time, stabilizing molecular structure and ensuring consistent performance.

After weaving, nylon webbing retains internal stresses and can shrink or distort when later exposed to heat or moisture. Heat setting—also called thermo‑fixing—addresses this by applying carefully controlled heat to the webbing under tension.

Mechanism:

• Molecular Relaxation: Heat allows polymer chains to relax into a lower‑energy state, erasing residual stresses from weaving.
• Dimensional Locking: With the webbing held under slight tension on a heated drum or tenter frame, the final width and length become fixed.

Key Parameters:

• Temperature: 150–200°C for PA6; up to 220°C for PA66
• Dwell Time: 30–120 seconds, depending on webbing width and thickness
• Tension: Light, consistent tension (~5–10% stretch) to avoid over‑elongation

Benefits of Proper Heat Setting:

• Reduced Shrinkage: <1% dimensional change during end‑use
• Improved Tensile Stability: Maintains rated strength under load
• Enhanced Hand Feel: Smoother surface and consistent thickness

At Szoneier, our continuous heat‑setting lines integrate infrared and forced‑air systems, providing uniform temperature across the webbing width. Inline tension sensors automatically adjust speed to maintain target elongation, delivering ready‑to‑ship webbing with no surprises down the line.

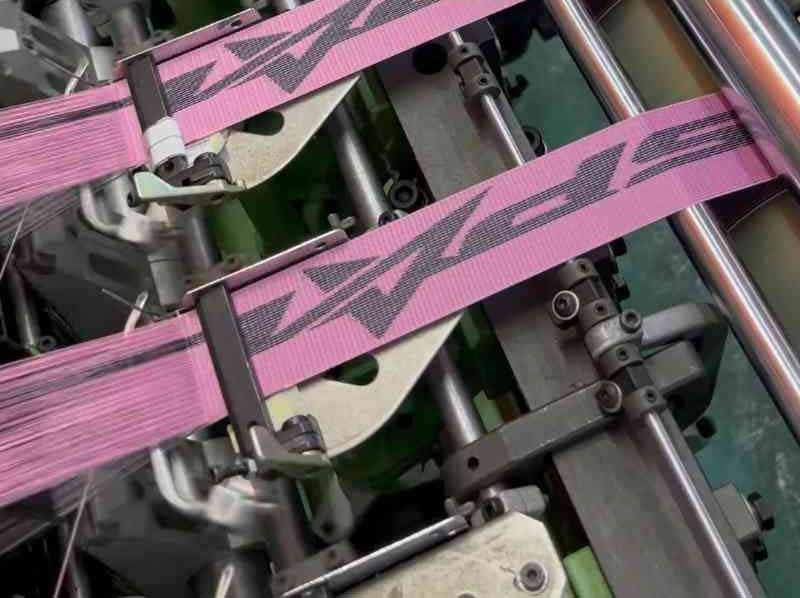

What Dyeing and Printing Methods Ensure Vibrant, Durable Colors?

Nylon webbing coloration uses yarn‑dye for consistent multi‑tone patterns, piece‑dye for bulk orders, and specialized printing (screen or transfer) for logos, delivering vibrant, fade‑resistant colors that meet industry fastness standards. Color plays a pivotal role in webbing aesthetics and brand recognition. Three primary approaches exist:

1. Yarn Dyeing: Nylon filaments are dyed before weaving, ensuring fiber‑level color penetration. This method yields superior colorfastness and is ideal for striped or patterned webbing. However, it requires precise bath chemistry and can be time‑intensive for large orders.
2. Piece Dyeing: Woven webbing enters a dye kettle, absorbing color across the entire strap. It’s more cost‑effective for solid‑color runs but may exhibit slight shade variation along length. Rigorous bath control and agitation are necessary to ensure uniform results.
3. Printing: For logos, text, or multi‑color designs, screen printing and heat‑transfer printing apply inks or films onto the webbing surface. Modern UV‑curable and disperse dyes resist abrasion and sunlight, maintaining crisp graphics even under heavy use.

Colorfastness Standards:

• ISO 105 B02 (Wet Rub Test): Ensures no significant staining when rubbed with damp cloth.
• ISO 105 B04 (Dry Rub Test): Evaluates color transfer under dry friction.
• ISO 105 B02 (Light Fastness): Measures resistance to fading from UV exposure.

Szoneier’s in‑house dyeing lab runs small‑batch trials to refine recipe ratios and dwell times. We document every parameter—temperature, time, liquor ratio—to create a full recipe book, guaranteeing replicable results across orders, whether you need 100 meters or 10,000 meters.

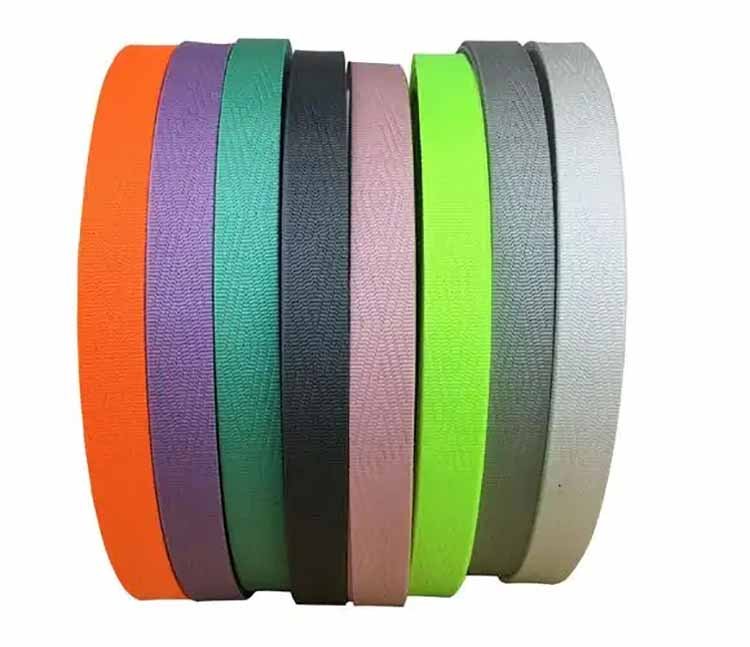

How Are Finishing Treatments and Functional Coatings Added?

Functional coatings—PU/PVC lamination, silicone, anti‑slip, and reflective finishes—are applied via calendaring, spraying, or dip‑coating, enhancing water resistance, grip, abrasion resistance, and visibility for specialized webbing applications. Beyond strength and color, webbing often requires tailored surface properties:

• PU/PVC Lamination: A thin polymer layer bonded under heat and pressure delivers waterproofing and improves abrasion resistance. Calendaring rolls spread the coating evenly, while curing ovens finalize adhesion.
• Silicone & Anti‑Slip Coatings: Applied by spray or dip, these treatments add tackiness for secure strap gripping—common in sporting goods and ergonomic designs.
• Reflective Finishes: Microprismatic or glass‑bead reflective layers laminated onto the webbing ensure visibility in low light, crucial for safety harnesses, pet leashes, and cycling straps.

Application Workflow:

1. Surface Cleaning: Ensures coating adhesion by removing oils and dust.
2. Primer Layer: Chemical primers enhance bonding between nylon and coating polymer.
3. Coating Application: Through dip bath, spray booth, or calendering rollers.
4. Curing: Heat tunnels or UV chambers fix the coating, achieving desired hardness and flexibility.

Performance tests—like 100 ,000‑cycle flex testing and salt‑spray corrosion checks—validate functional coatings. Szoneier’s coating line includes closed‑loop solvent recovery to meet environmental regulations, ensuring green production alongside high performance.

What Quality Control Tests Guarantee Webbing Performance?

Quality control involves tensile strength and elongation tests, abrasion resistance trials, colorfastness checks, and coating adhesion assessments, all performed according to ISO, EN, and ASTM standards to ensure webbing meets or exceeds industry requirements.

Dive Deeper (300+ words): Webbing failures can be catastrophic in safety or load‑bearing contexts; rigorous testing is non‑negotiable. Core QC procedures include:

• Tensile & Elongation Testing: Using universal testing machines, samples are pulled at specified rates to measure break strength and elongation at break, following ISO 13934 and ASTM D5034.
• Abrasion Resistance: Martindale or Taber testers subject webbing to repeated friction cycles; end‑of‑test weight loss and visual wear ratings determine suitability for high‑wear environments.
• Colorfastness: Wet/dry rub and light‑exposure tests assess dye stability under real‑world conditions.
• Coating Adhesion: Cross‑hatch tape pull tests and peel strength measurements confirm the durability of functional layers.

Szoneier’s QC lab is equipped with automated test rigs and environmental chambers, allowing sample tests at extreme temperatures and humidity. For OEM clients, we provide detailed test reports with statistical analysis—mean, standard deviation, and compliance grades—backed by our ISO/IEC 17025 accreditation.

How Does Szoneier Handle Low‑MOQ Custom Samples and Rapid Sampling?

Szoneier offers free design consulting, rapid prototyping within 3–5 days, and low‑MOQ production (from 50 meters), backed by 18+ years of expertise—enabling fast, cost‑effective custom webbing solutions. The ability to quickly validate new designs is crucial for B2B buyers testing market demand or finalizing branding. At Szoneier, our custom workflow includes:

1. Consultation & Design: Our engineers review application requirements—load rating, width, weave pattern—and recommend optimal structures and treatments.
2. Digital Mock‑up: Using CAD and 3D rendering, clients preview patterns, colors, and logos before physical sampling.
3. Rapid Sampling: With dedicated pilot lines, we produce prototypes in as little as 3 days, even at low MOQs (from 50 m). Samples are inspected and packaged for courier delivery.
4. Iterative Feedback: Clients test samples in real conditions; adjustments are quickly implemented, with new samples in another 2–3 days.

This agile model minimizes risk and accelerates time to market. Whether you’re a boutique brand needing a signature jacquard strap or an industrial firm requiring high‑strength safety webbing, Szoneier’s end‑to‑end service—from free design to delivery—ensures your custom webbing exceeds expectations.
