Lifting heavy loads—whether on a bustling construction site or in a busy warehouse—can feel like a high-stakes balancing act. One wrong move, and you risk property damage, project delays, or even serious injury. Enter lifting slings: the unsung heroes that bear the weight, literally, ensuring every crane lift or hoist operation goes off without a hitch.
Lifting slings are flexible, high‐strength assemblies—made from chains, wire ropes, synthetic webbing, or round styles—that attach to loads and lifting devices, enabling safe, controlled lifting operations across industries.
Imagine this: a multi‐story condo module dangling from a crane, craned into place within inches of a finished building. Behind that precision are carefully chosen slings rated for exact load capacities, angles, and temperatures. Ready to unpack the sling world? Let’s dive in.
What Is a Lifting Sling and Why Is It Essential?
A lifting sling is a flexible connector—chain, wire, web, or round—used between rigging hardware and loads. It distributes lift forces evenly, protects delicate surfaces, and ensures safe, efficient hoisting for everything from steel beams to fragile machinery.
- Load Distribution Principles: How slings spread stress across multiple points.
- Surface Protection: Choosing soft slings for finished surfaces.
- Flexibility vs. Rigidity: When to use bendable webs versus solid chains.
- Industry Case Study: Modular home installations and sling selection.

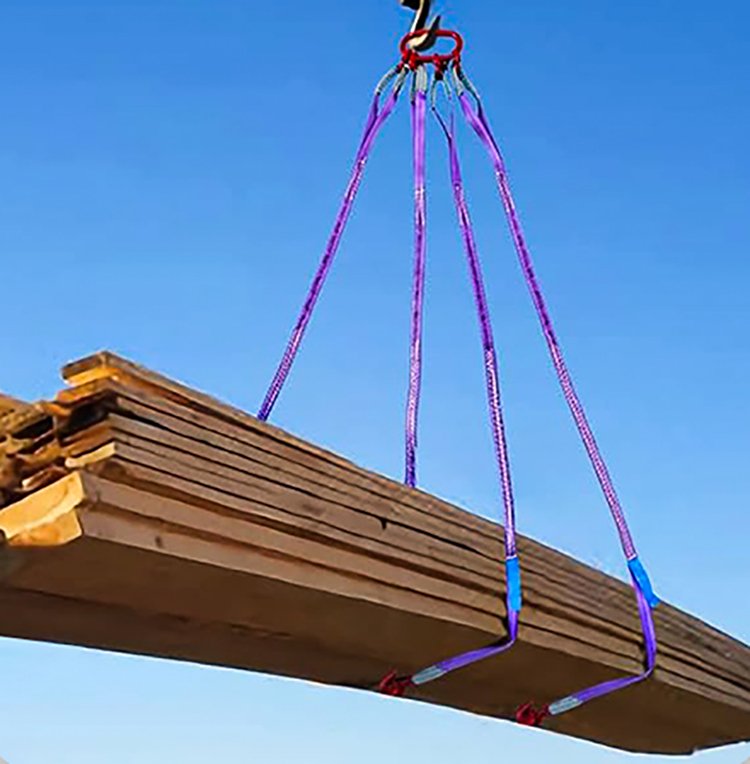

What Materials Are Used to Make Lifting Slings?
Slings are built from high‐strength alloys (chain slings), galvanized or stainless steel (wire rope slings), polyester or nylon fibers (web slings), and synthetic circular cores encased in protective jackets (round slings).
- Chain Slings: Alloy grades, heat treatment, corrosion treatments.
- Wire Rope Slings: Lay patterns, core choices, galvanizing benefits.
- Synthetic Web Slings: Polyester vs. nylon properties, UV resistance.
- Round Slings: Core yarns, color‐coded capacity, abrasion sleeves.
- Environmental Suitability: Temperature, chemicals, outdoor exposure.
Which Types of Lifting Slings Are Available?
You’ve got five go-to sling styles—chain, wire rope, synthetic web, round, and steel mesh—each tuned for load range, flexibility, and environment. Pick the right one, and you’ll lift safely every time.
Below we unpack each sling type with real-world specs, pricing ballparks, and pro tips to help you choose like a rigging veteran.
1. Chain Slings
Why You’ll Love It
- Extreme Strength: Grade 80 chain delivers up to 10 tonnes WLL per leg; Grade 100 pushes you above 15 tonnes.
- Temperature Proof: Handles −40 °C to +400 °C—perfect for foundries or steel mills.
- Infinite Adjustment: Grab‐hooks let you tweak length in seconds.
| Feature | Grade 80 | Grade 100 |
|---|---|---|
| WLL (per leg) | 1 t–10 t | 2 t–15 t |
| Link Size | 8 mm–32 mm | 10 mm–36 mm |
| Approx. Cost/m | $25–$35 USD | $35–$50 USD |
| Lifespan | 5–10 years (industrial use) | 7–12 years |
Pro Tip: If you’re lifting hot steel coils, go Grade 100 with a nickel‐plated finish for corrosion resistance.
2. Wire Rope Slings
Why You’ll Love It
- Fatigue Champion: Lasts 10× more flex cycles than chain.
- High Strength-to-Weight: 20–30% lighter than chain for the same capacity.
- Price-Friendly: Roughly $15–$30 USD per meter.
| Feature | 6×19 IWRC Fiber Core | 6×37 FC (Steel Core) |
|---|---|---|
| WLL (1 m sling) | 0.5 t–50 t | 1 t–75 t |
| Break Strength | 5 t–75 t | 7 t–100 t |
| Weight (kg/m) | 0.8–5.0 | 1.0–6.5 |
| Cost/m | $15–$25 USD | $20–$30 USD |
Pro Tip: For marine or coastal work, choose galvanized or stainless steel core to prevent rust.

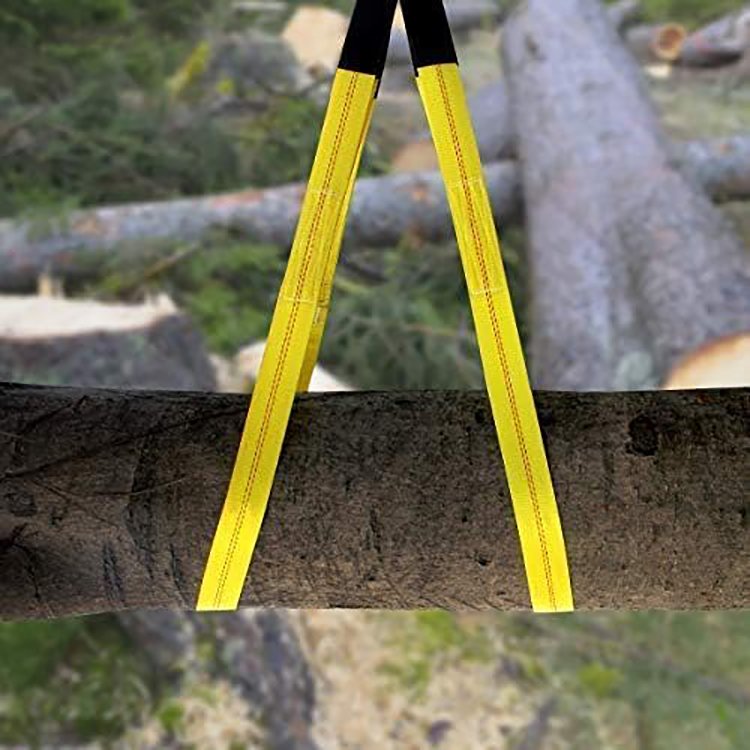

3. Synthetic Web Slings
Why You’ll Love It
- Non-Marking: Gentle on painted surfaces—no scratches.
- Ultra-Light: 1 kg per 2 m, so you carry less to lift more.
- Budget-Smart: Starting at $10–$15 USD per sling.
| Feature | Nylon Web Sling | Polyester Web Sling |
|---|---|---|
| WLL (2 m sling) | 0.5 t–20 t | 0.5 t–25 t |
| Stretch (%) | 5–7% | 0–3% |
| Abrasion Rating | Moderate (≅1,000 cycles) | High (≅2,000 cycles) |
| UV Resistance | Low without coating | High |
Pro Tip: Polyester slings stay strong in the sun—ideal if your job runs from dawn to dusk outdoors.
4. Round Slings
Why You’ll Love It
- Stress-Free Lifts: Circular core eliminates pressure points.
- Compact & Flexible: Wrap around odd shapes smoothly.
- Easy Inspect: Damaged jacket = time for replacement.
| Feature | Standard Round Sling | Heavy-Duty Round Sling |
|---|---|---|
| WLL (2 m sling) | 0.25 t–15 t | 5 t–50 t |
| Jacket Material | Nylon/Polyester Blend | Extra-thick Polyester |
| Price/sling | $20–$40 USD | $50–$80 USD |
Pro Tip: For lifting delicate glass or stone, a 10 t round sling offers gentle cradle support without marking edges.
5. Steel Mesh Slings
Why You’ll Love It
- Heat & Chemical Armor: Withstands up to 800 °C and acid exposure.
- Flexible Yet Strong: Mesh conforms to odd shapes without losing WLL.
- Specialty Gear: Perfect for smelters and chemical plants.
| Feature | Steel Mesh Sling |
|---|---|
| WLL (1 m sling) | 0.1 t–10 t |
| Temperature Limit | Up to 800 °C |
| Chemical Resistance | Excellent |
| Cost/m | $50–$70 USD |
Pro Tip: If you’re moving molten crucibles, nothing beats steel mesh for both safety and longevity.
How Do Load Capacity and Safety Factors Differ by Sling Type?
Each sling type carries a rated working load limit (WLL) and built‐in safety factor—typically 4:1 for synthetic slings, 5:1 or 6:1 for chain/wire—to account for dynamic loads and wear.
- WLL Definition: Maximum safe load in ideal conditions.
- Safety Factor Rationale: Buffer for shock, wear, angle reduction.
- Angle of Lift Effects: Capacity reduction at slopes <60°.
- Comparison Table:
| Sling Type | Typical Safety Factor | WLL Example (1 m sling) | Capacity at 60° Lift |
|---|---|---|---|
| Chain (Grade 80) | 4:1 | 5 t | 2.5 t |
| Wire Rope | 5:1 | 10 t | 5 t |
| Web Sling | 4:1 | 2 t | 1 t |
| Round Sling | 4:1 | 3 t | 1.5 t |
- Real-World Impact: A 3-leg chain sling at 45° gives ~140% of each leg’s WLL, boosting total compared to vertical lifts.

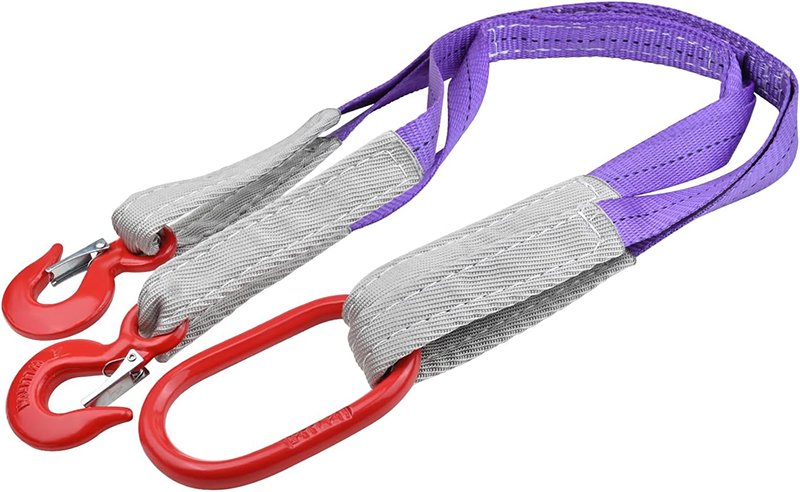

What Applications Suit Each Sling Type?
Choose chain for heat/abrasion, wire rope for moderate toughness/fatigue life, web for surface-sensitive loads, round for odd shapes, and mesh for extreme heat or chemicals.
- Construction Sites: Heavy steel beams—chain or wire rope.
- Marine Use: Corrosion-resistant stainless wire rope.
- Manufacturing Plants: Web slings move motors, presses with no marking.
- Glass & Stone: Round slings cradle delicate panels.
- Foundries & Refineries: Steel mesh handles red-hot or caustic loads.
How Do You Inspect and Maintain Lifting Slings?
Regularly examine slings for wear—chain links for cracks, wire for kinks/fishhooks, webbing for cuts or UV damage, and round covers for tears. Retire slings when damage exceeds manufacturer guidelines.
- Inspection Checkpoints
- Frequent vs. Periodic Inspections
- Repair vs. Retire
- Documentation & Traceability
Inspection Checkpoints
| Sling Type | What to Look For | Acceptance Criteria |
|---|---|---|
| Chain | Stretch, nicks, corrosion, elongation | No link stretch >3%, no cracks |
| Wire Rope | Broken wires, kinks, corrosion | <10 broken wires per meter |
| Web Sling | Cuts, abrasion, mildew | No cuts >10% width, no UV bleaching |
| Round Sling | Jacket tears, core exposure | Jacket integrity 100%, no core visible |
Frequency
- Frequent (Daily/Shift): Quick visual check before use.
- Periodic (Monthly/Quarterly): Detailed inspection by qualified inspector.
Repair vs. Retire
- Minor Repairs: Webbing patch kits, re-seizing.
- Retire If: Damage beyond repair guidelines—immediately remove from service.
Traceability
Maintain sling log: date of inspection, inspector initials, defects found, action taken.
Are There Industry Standards and Regulations for Lifting Slings?
Yes—standards like ASME B30.9, OSHA 1910.184, and EN 1492 govern sling design, testing, marking, and usage to ensure global safety and interoperability.
- ASME B30.9: U.S. chain and synthetic sling rules.
- OSHA 1910.184: Inspection and maintenance protocols.
- EN 1492: European web and round slings.
- ISO 9001 in Sling Manufacturing: Quality management systems.
- Global Compliance: Adapting to local regulations in Asia, Middle East.
How Do You Select the Right Sling for Your Lifting Operation?
Evaluate load weight, shape, environment, lift angle, and surface sensitivity. Match with sling type, material, capacity, and safety factor—then confirm proper rigging hardware and lift planning.
1. Define Load Parameters
- Weight, center of gravity, dimensions.
- Fragility or surface finish concerns.
2. Assess Environmental Conditions
- Temperature extremes (–40 °C to +400 °C).
- Chemical exposure, UV sunlight.
3. Calculate Lift Angles
- Angle factor tables reduce WLL for sloped legs.
- Example: 45° angle = 0.707 capacity factor.
4. Determine Safety Margins
- Use higher safety factors for dynamic lifts/overhead work.
5. Plan Rigging Hardware
- Shackles, hooks, spreader bars—compatible with sling type.
Conclusion & Inquiry
Selecting the right lifting sling isn’t just about brute strength—it’s a careful dance of materials science, geometry, and real‐world conditions. Whether you need rugged chain slings for high‐heat foundry work or gentle round slings for delicate glass panels, Szoneier has you covered.
Ready to custom‐design your lifting slings? Contact Szoneier today for free design support, rapid sampling, low MOQs, and 100% quality assurance. Let’s engineer the perfect sling solution for your toughest lifts!
