What Is Webbing Tensile Strength and How Can You Maximize It?

When you first pick up a length of webbing—whether it’s for your next rock-climbing adventure, rigging gear onto your truck, or strapping cargo on a shipping pallet—you probably don’t think much about what goes on behind the scenes. Yet in every reliable strap that keeps you safe or your goods secure, there’s a world of material science and manufacturing know-how that determines whether that webbing will hold under pressure or let you down at the worst possible moment.

Webbing tensile strength depends on three core factors: material choice, weaving technique, and protective coatings. By optimizing these, you can ensure your straps meet even the toughest load demands.

But before you dismiss this as “just another specs sheet,” consider this: a single climbing harness uses webbing rated to more than 2,000 pounds of force, while heavy-duty cargo straps often top 10,000 pounds. That’s the difference between a product that simply works and one you can absolutely trust. In the following sections, we’ll break down exactly what affects tensile strength, how each manufacturing step matters, and even dive into data tables showing real-world numbers—so you can make smarter decisions and know exactly how to get the strongest, most reliable webbing for your needs.

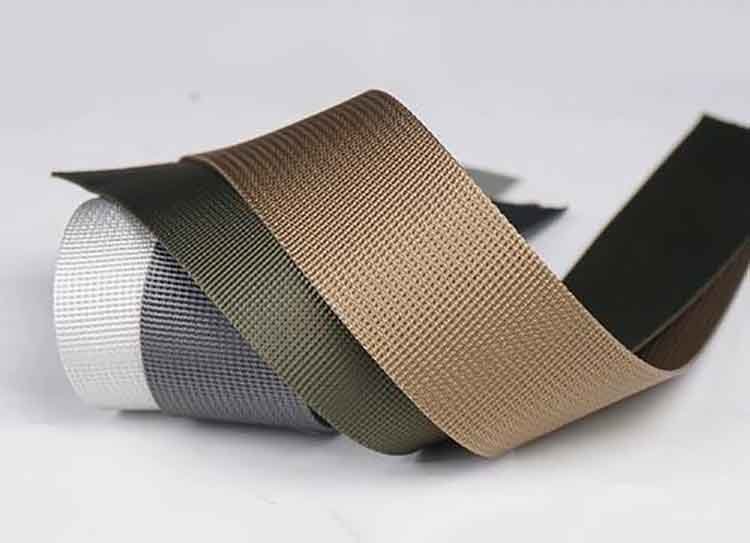

What Affects Webbing Tensile Strength?

Tensile strength hinges on three pillars—material type, weaving pattern, and coatings. Each plays a unique role in how much load your webbing can safely bear.

Let’s unpack those three pillars in more granular detail:

1. Material Type
   • Synthetic vs. Natural Fibers: Synthetic fibers like nylon, polyester, and polypropylene (PP) dramatically outperform natural cotton in raw tensile strength. For instance, nylon 6,6 fibers boast tensile strengths around 12,000–14,000 psi, whereas cotton sits near 5,000 psi. That’s almost a 2.5× difference before you even consider weave or coating.
   • Moisture & UV Resistance: Polyester retains over 90% of its strength after prolonged UV exposure, while nylon can lose up to 20%. PP reigns supreme in moisture resistance, absorbing virtually 0% water compared to nylon’s 2–3%.
2. Weaving Pattern
   • Plain Weave: Alternating over-under offers a good balance—simple, cost-effective, and around 80–85% of the raw fiber strength.
   • Twill Weave: Diagonal pattern increases contact points, often delivering 90–95% of base fiber strength, thanks to even stress distribution.
   • Jacquard/High-Density Weaves: Complex patterns with extra yarns can push you up to 98–100%—at a higher production cost.
3. Coatings & Finishes
   • PVC & PU: Common for outdoor and marine straps. A 0.3 mm PVC coat can boost abrasion resistance by 30% and UV stability by 25%.
   • Silicone: More expensive, but adds 40% improved flex fatigue life—critical for straps repeatedly bent over edges.

Quick Data Table: Factors vs. Webbing Strength

By understanding how each of these variables impacts the final product, you can zero in on the perfect combination for your specific load-bearing requirements. Next, let’s talk about how the choices you make at the material level translate into real-world performance.

How Do Material Choices Impact the Tensile Strength of Webbing?

Nylon, polyester, and polypropylene each offer distinct tensile properties—select the fiber that aligns best with your strength, UV, moisture, and budget needs.

Choosing your webbing fiber is like picking the right engine for a car: performance, efficiency, and longevity all hinge on it.

Nylon Webbing

• Tensile Peak: ~12,000–14,000 psi
• Elongation at Break: 15–35% (shock absorption under sudden loads)
• Ideal For: Climbing harnesses, safety straps, cargo tie-downs
• Trade-Offs:
  • Water Absorption: 2–3% weight gain, can weaken under wet conditions
  • UV Degradation: 15–20% strength loss over 1,000 sun-hours

Polyester Webbing

• Tensile Peak: ~10,000–12,000 psi
• Elongation: 10–15% (minimal stretch for precise load control)
• Ideal For: Boat rigging, outdoor cargo, architectural straps
• Trade-Offs:
  • Cost: Slightly higher than nylon by 5–10% per meter
  • Less Shock Absorption: Lower elongation, can feel less “forgiving”

Polypropylene (PP) Webbing

• Tensile Peak: ~8,000–10,000 psi
• Elongation: 10–20%
• Ideal For: Marine/moist environments, chemical exposure
• Trade-Offs:
  • Heat Sensitivity: Softens around 100°C (212°F)
  • Lower Abrasion Resistance compared to nylon/polyester

Comparative Table: Fiber Properties

¹Cost Index: Nylon baseline = 100

Real-World Example:

• Climbing Webbing: Nylon’s high elongation is crucial—when you fall, the webbing stretches a bit, softening the jolt.
• Sailboat Sheets: Polyester’s UV toughness means it won’t weaken after months in the sun.
• Cargo Nets on Fishing Boats: PP’s moisture immunity ensures it won’t rot or degrade, salt spray or not.

By matching these material traits to your application, you can maximize tensile strength without overpaying or creating unexpected failure modes.

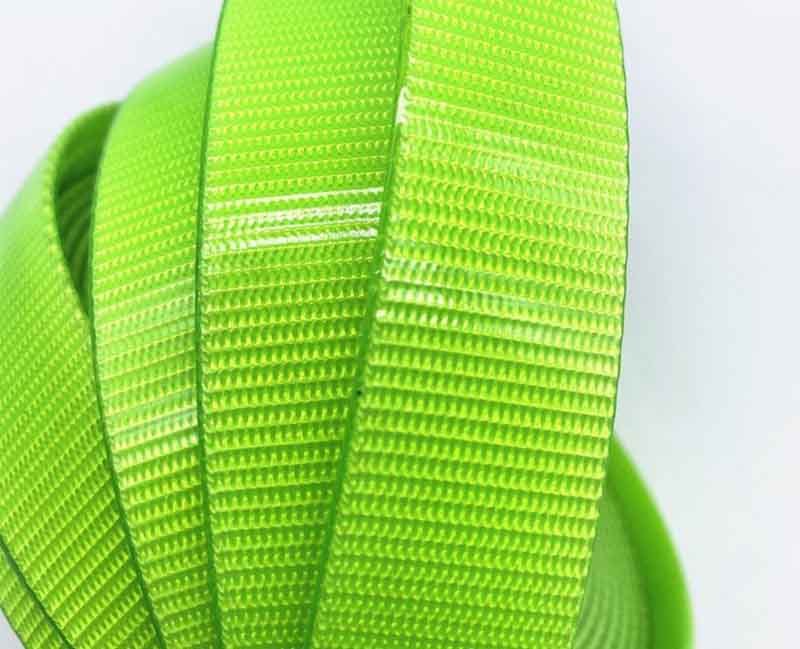

Which Manufacturing Techniques Enhance Webbing Strength?

Advanced weaving patterns and strategic coatings can boost webbing strength by up to 20% beyond raw fiber capacity—choose plain, twill, or jacquard based on load needs.

Manufacturing finesse is where raw materials transform into hero-grade webbing. Let’s look at the most influential techniques:

Weaving Patterns

• Plain Weave
  • Yarn interlaced 1×1, simplest pattern.
  • Strength Efficiency: ~85% of fiber’s raw strength.
  • Best For: Light-to-medium loads; economical production.
• Twill Weave
  • Yarn interlaced 2×1 or 3×1, diagonal ribs appear.
  • Strength Efficiency: ~90–95%.
  • Best For: Medium-duty straps needing better abrasion resistance.
• Jacquard/High-Density Weaves
  • Complex interlacing, often programmable patterns.
  • Strength Efficiency: ~98–100%.
  • Best For: Premium applications (military gear, high-end climbing).

Yarn Denier & Ply

• Increasing denier (thickness) from 1,200 to 2,000 can improve tensile strength by up to 25%, but at the cost of weight and flexibility.
• Multi-ply yarns (e.g., 2×1, 3×1 plies) can distribute stress across more fibers, cutting the risk of single-strand failure.

Heat-Setting & Pre-Stretching

• Heat-Setting: Stabilizes yarn, reducing future elongation by up to 10%, ensuring dimensional stability under load.
• Pre-Stretching: Removes internal stresses, preventing dramatic stretch under first load.

Coating & Laminating

• PVC Coating (0.2–0.5 mm)
  • +30% abrasion resistance
  • +20% UV protection
  • Weight impact: +8–12 g/m²
• PU Lamination (0.1–0.3 mm)
  • +35% abrasion, +15% oil/chemical resistance
  • Maintains flexibility even at –30°C
• Silicone Treatment
  • +40% flex-fatigue life
  • Adds hydrophobic surface, repelling water and dirt

Manufacturing Techniques & Strength Gains

Insider Tip:

A combination of a twill weave with a light PU lamination often hits the sweet spot: you get about +40–45% total abrasion and load-cycle improvements while keeping costs and weight reasonable.

Which Webbing Materials Offer the Highest Tensile Strength for Heavy-Duty Applications?

Nylon with high-density weave and PU coating leads the pack for ultimate tensile strength—ideal for heavy machinery, rescue gear, and military uses.

When you need to move mountains—literally or metaphorically—you reach for the big guns:

1. Nylon High-Density Weave + PU/PU Combo
   • Base Fiber: 14,000 psi
   • Weave Efficiency: 98% → 13,720 psi
   • PU Lamination: +15% abrasion → 15,778 psi equivalent
   • Real-World Rating: ~13,000–14,000 lbs breaking force (1″ wide strap)
2. Polyester Twill Weave + PVC Coating
   • Base Fiber: 12,000 psi
   • Weave Efficiency: 93% → 11,160 psi
   • PVC Coating: +20% UV/abrasion → ~13,392 psi equivalent
   • Real-World Rating: ~11,500–12,500 lbs
3. Aramid-Reinforced Hybrid (Kevlar® Blend)
   • Fiber Blend: 50% Nylon / 50% Kevlar®
   • Tensile Strength: 18,000–20,000 psi
   • Use Case: Fire-resistant rescue straps, aerospace tie-downs
   • Trade-Off: +300% cost vs. pure nylon

Top Heavy-Duty Webbing Configurations

If your job involves winching vehicles, supporting rescue operations, or anything where “failure is not an option,” these combinations give you the best possible peace of mind.

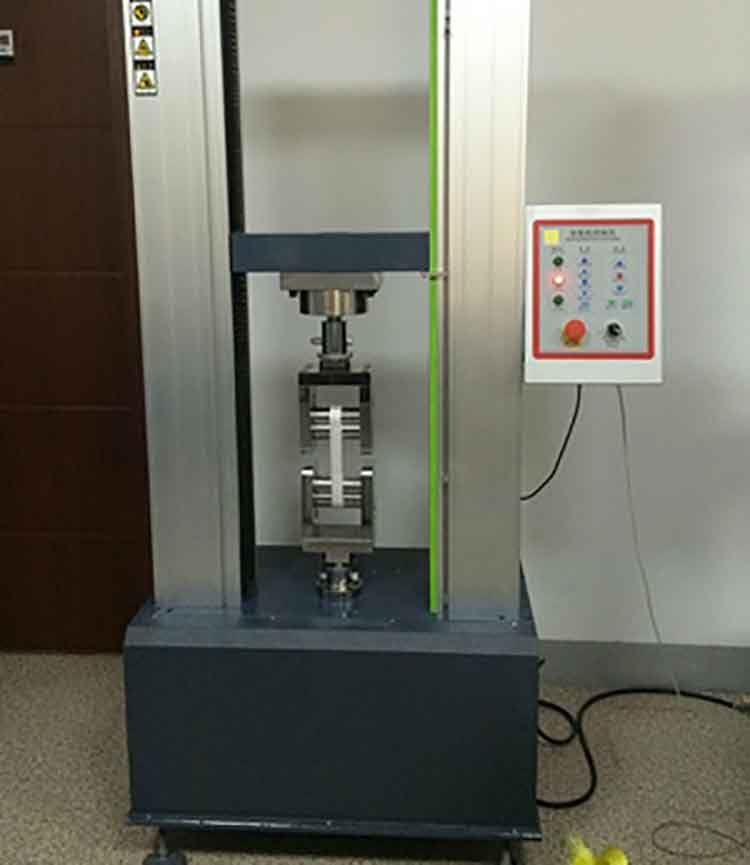

How to Test Webbing Tensile Strength?

Standardized tests like ASTM D5034 and ISO 13934-1 simulate real-world stresses to confirm a strap’s actual breaking force and elongation under load.

Testing your webbing in a lab is the only way to guarantee it won’t let you down in the field:

1. ASTM D5034 – Grab Test
   • Procedure: Clamp a 4″ wide sample, pull at 300 mm/min until break.
   • Outputs: Breaking force (lbs), elongation (%)
   • Use Case: General textile strength baseline.
2. ISO 13934-1 – Strip Test
   • Procedure: 25 mm wide strip, pulled at 100 mm/min.
   • Outputs: Precise tensile strength, elongation, stress-strain curve.
   • Use Case: Detailed fiber behavior, used in certification.
3. Dynamic Fatigue Testing
   • Procedure: Cyclic loading (e.g., 200–2,000 lbs) for 10,000 cycles.
   • Outputs: Strength retention (% after cycles), visual inspection for wear.
   • Use Case: Climbing harnesses, safety belts.
4. Environmental Conditioning
   • UV Aging: Expose to 1,000 sun-hours, retest tensile.
   • Salt Spray: 500-hour salt chamber, retest.
   • Heat/Cold Cycling: –30°C to +80°C, 100 cycles.

Test Methods & Metrics

Performing these tests under controlled conditions and documenting the results is not just “good practice”—for many industries, it’s a hard requirement for compliance and customer assurance.

How to Choose the Right Webbing for Your Specific Load-Bearing Needs?

Match your load requirements, environment, and flexibility needs to the right combination of fiber, weave, and finish. Always validate with standardized testing.

Here’s a simple four-step workflow to zero in on your ideal webbing:

1. Define Maximum Load & Safety Factor
   • Calculate the max working load.
   • Apply safety factor (typically 5×–10× for human safety gear).
   • Example: For a 1,000-lb load, choose webbing rated for 5,000–10,000 lbs.
2. Evaluate Environmental Exposures
   • UV? Moisture? Chemicals?
   • Outdoor/Ground Use: Polyester + PVC.
   • Marine/Chemical: PP + silicone.
   • Cold-Weather: Nylon + PU.
3. Balance Strength vs. Flexibility
   • Shock load? Go nylon for elongation.
   • Precise load control? Go polyester for minimal stretch.
4. Confirm with Testing & Certification
   • Always demand test certificates (ASTM or ISO).
   • Inspect batch numbers and production dates.

Selection Guide at a Glance

Making the right choice up front saves headaches—and potential disasters—down the road.

Conclusion

We’ve covered how material selection, weaving techniques, and coatings all play a part in determining webbing tensile strength. From nylon’s shock-absorbing stretch to polyester’s UV resilience and PP’s moisture immunity, each fiber has its place. We’ve also seen how a high-density weave, proper heat-setting, and targeted coatings can boost strength by up to 45%, and why rigorous testing under ASTM and ISO standards is non-negotiable for safety and reliability.

At Szoneier, with our 18+ years of R&D and manufacturing expertise, we tailor every webbing solution to your exact load, environment, and budget requirements. Whether you need a military-grade rescue strap, marine-proof cargo tie-downs, or high-seasonal UV-resistant reels, we’ve got you covered with:

• Custom Materials: Nylon, polyester, PP, cotton, and specialty blends
• Advanced Weaves: From cost-effective plain to premium jacquard
• Precision Coatings: PVC, PU, silicone—or your own proprietary finish
• Full Testing & Certification: ASTM, ISO, dynamic fatigue, environmental aging

Ready to lock in your perfect webbing solution? Contact Szoneier today for free design consultation, fast sampling, and low-MOQ custom runs. Let us help you engineer webbing that not only meets but exceeds your load-bearing expectations—every time.
