Picture this: you’re cruising down the highway at 65 mph, wind in your hair, when suddenly traffic slams on the brakes. In a split second, your seat belt—often taken for granted—locks you in place, averting disaster. But what makes that humble strap so resilient under extreme forces?
In summary, modern seat belt webbing is predominantly crafted from high-tenacity polyester or nylon yarns woven into a dense, abrasion-resistant fabric capable of withstanding over 3,500 pounds of force with less than 8 percent elongation—delivering reliable restraint performance during high-speed collisions and offering long-term durability.
But this is just scratching the surface—let’s dive into the woven world of seat belt science and see what keeps these lifesaving straps ticking.

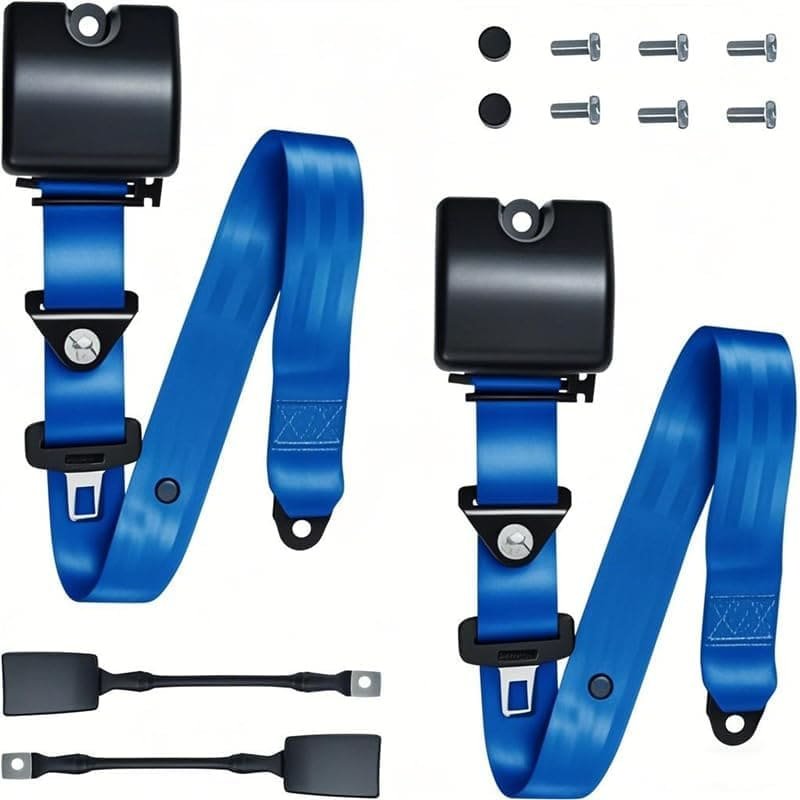

What Is a Seat Belt Webbing?
Seat belt webbing is a high-strength woven fabric made from polyester or nylon yarns, engineered to absorb energy and restrain passengers during crashes with minimal stretch.
Fiber Selection and Yarn Preparation
Choosing the right polymer is step one. Manufacturers typically select high-tenacity polyester or nylon filaments—continuous strands extruded from molten polymer chips. These filaments offer superior tensile strength (800–1,100 MPa) and low elongation (10–20 percent). Yarns may be twisted or air-jet textured to balance flexibility with strength. Quality begins here: any impurity or uneven filament can become a weak point under crash loads.
Weaving Patterns and Density
Once spun, yarns are arranged on a loom in warp (lengthwise) and weft (crosswise) directions. A plain weave—over one, under one—is common for uniform strength, while a basket weave (over two, under two) increases flexibility. Tightness of weave, measured in picks per inch, dictates abrasion resistance and stiffness. Higher density means better wear resistance but slightly higher stiffness, impacting comfort and reelability.
Textile Treatments Before Weaving
Before weaving, yarns often undergo scouring to remove spinning oils and impurities, ensuring dye and finish adhesion. Sizing agents (e.g., starch or PVA) are applied to reduce yarn breakage during weaving. This preliminary step boosts loom efficiency and produces a cleaner fabric, reducing defects that could compromise safety.
Quality Control in Weaving
Throughout weaving, automated cameras and tension sensors monitor uniformity. Webbing width tolerance is kept within ±0.5 mm, and weight per square meter (GSM) is checked every roll. Any deviation triggers real-time adjustments or rejects rolls for manual inspection. This vigilance ensures each meter of webbing meets stringent safety criteria before moving to finishing.
Webbing Width and Thickness Considerations
Standard three-point seat belts use 45 mm (1.75 in) wide webbing, while racing harnesses may be 50 mm (2 in) or wider for even load distribution. Thickness, typically 0.5–1.0 mm, affects flexibility and packability. Thicker webbing offers slightly higher strength but can be less comfortable when stored in retractors or guides.

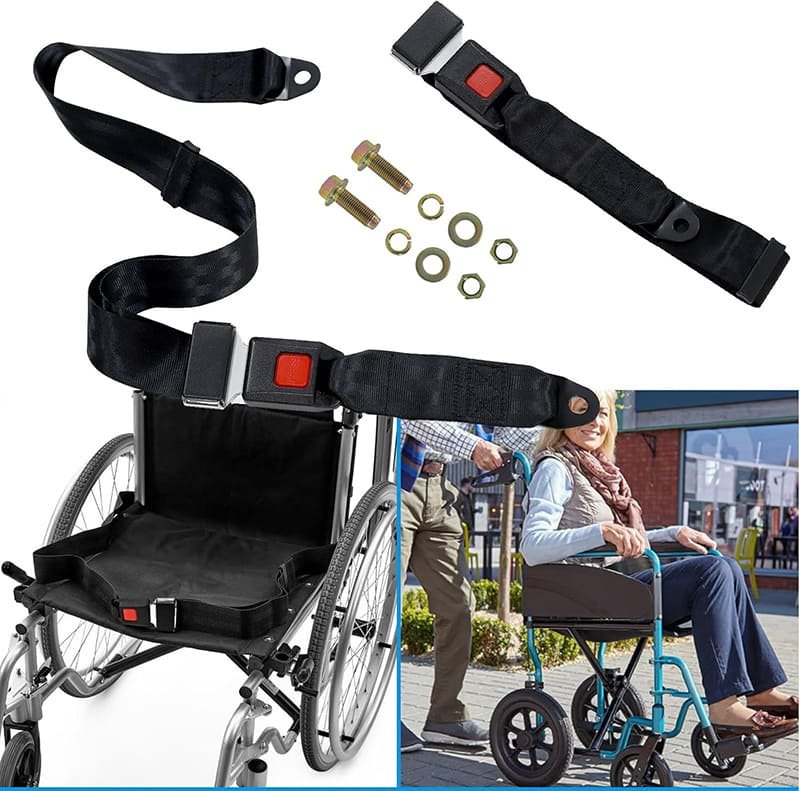

What Types of Seat Belts Are There?
Seat belts range from simple lap belts and three-point harnesses to four- and five-point racing harnesses, plus specialty pet safety belts designed to protect our furry co-pilots.
Lap Belts vs Three-Point Belts
Lap belts restrain only the pelvis and were common in early vehicles. Three-point belts, invented by Volvo in 1959, add a shoulder strap, distributing forces across the chest and pelvis. Three-point designs reduce head and torso movement dramatically compared to lap-only systems.
Four- and Five-Point Harness Advantages
In motorsports or off-roading, four- and five-point harnesses strap both shoulders and hips (plus sometimes subtler crotch straps). These designs minimize torso flex and prevent submarining—sliding under the belt—by anchoring the pelvis and sternum firmly, crucial in high-G scenarios.
Pet Safety Belts: Design and Use
Pet seat belts often clip into standard latches and attach to a padded harness. Webbing may be slightly softer but still must pass crash-test standards (e.g., ASTM F2980 in the USA). Some designs integrate retractors and load limiters to cushion impacts for animals.
Child Seat Belts and ISOFIX Integration
Built-in five-point harnesses in child seats latch into vehicle anchors (ISOFIX/LATCH) for installation simplicity and safety. Webbing strength here is higher—typically rated up to 5,000 pounds—to compensate for smaller anchor spacing and ensure robust protection.
Racing Harness Standards
FIA and SFI certify racing harness materials and assemblies. FIA 8853-2016 requires webbing to withstand 25 kN (5,620 lbf) static pull without failure and endure cyclic dynamic loads. Regular replacement (every five years) is mandated to assure aging webbing doesn’t degrade performance.

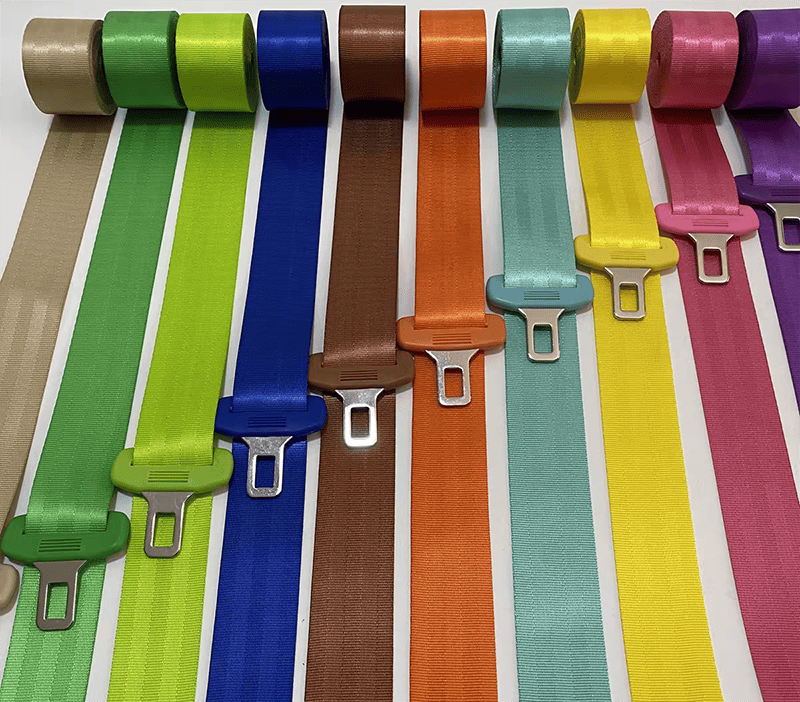

Which Materials Are Commonly Used to Make Seat Belts?
Seat belts typically use high-tenacity polyester, nylon, or polypropylene fibers—each offering unique strength, elongation, and abrasion resistance characteristics.
| Material | Tensile Strength (MPa) | Elongation (%) | Abrasion Resistance | UV Resistance | Cost |
|---|---|---|---|---|---|
| Polyester | 800 – 1,000 | 10 – 20 | High | High | Medium |
| Nylon | 900 – 1,100 | 15 – 35 | Medium | Medium | High |
| Polypropylene | 300 – 600 | 10 – 25 | Low | Low | Low |
Polyester: Properties and Performance
Polyester (PET) boasts excellent tensile strength, minimal stretch, and superb UV resistance, making it ideal for long-term outdoor use. Its moisture absorption is low (<0.5 percent), preserving webbing stiffness across climates. Cost is moderate due to large-scale production in textile industries.
Nylon: Pros and Cons
Nylon 6,6 offers superior toughness and higher initial strength than polyester. However, it absorbs more moisture (2–3 percent), slightly weakening under humid conditions and elongating more (up to 35 percent), which can increase occupant movement in a crash. UV resistance is moderate; special stabilizers are often added.
Polypropylene: Lightweight Alternative
Polypropylene (PP) is the lightest and least expensive but has lower strength and UV resistance. It finds niche uses in pet belts or child seats where cost and weight outweigh maximum performance needs. PP elongation and abrasion resistance are both inferior to polyester and nylon.
Blended Materials and Reinforcements
Some manufacturers blend polyester with nylon filaments to balance strength and elongation. Others weave aramid (e.g., Kevlar®) or high-molecular-weight polyethylene (HMPE, e.g., Dyneema®) strands into belts for racing or military applications, dramatically boosting strength at higher cost.
Additives and UV Stabilizers
To prolong service life, stabilizers like UV absorbers (e.g., hindered amine light stabilizers) and antioxidants are added either to the polymer melt or via post-weaving finishes. Flame retardants, mildew inhibitors, and antistatic agents may also be incorporated depending on the intended environment.
How Is Seat Belt Webbing Manufactured and Tested for Safety?
Manufacturing involves fiber extrusion, twisting, weaving, finishing, and rigorous testing—tensile, elongation, abrasion, and heat resistance—to meet global safety standards.
Fiber Extrusion and Spinning
Plastic pellets (PET or Nylon) are melted and extruded through spinnerets into continuous filaments. A quench zone cools the filaments, which then pass through godets (rollers) that stretch‐orient the polymer, increasing crystallinity and strength. Multiple filaments bundle into a yarn.
Warping, Sizing, and Loom Setup
Yarns are wound onto warp beams under precise tension. A sizing solution (starch or PVA) coats the yarns to strengthen them for weaving. Beam alignment and tension control in the loom ensure uniform fabric density and prevent slubs (thick spots).
Weaving Process Details
On high-speed looms, warp and weft yarns interlace at up to 1,200 picks per minute. Electronic dobby or jacquard systems can vary patterns for specialty weaves. Continuous monitoring systems detect broken ends, automatically stopping the loom to maintain quality.
Finishing: Heat Setting and Coating
Post-weaving, webbing is heat-set (150 – 180 °C) under tension to stabilize dimensions and reduce creep. It may then pass through coating baths—silicone for smooth glide, polyurethane for abrasion resistance, or acrylic for water repellency—followed by curing ovens.
Key Safety Tests (Tensile, Elongation, Abrasion)
Finished belts undergo ASTM D6775 (tensile and elongation), ASTM D6770 (abrasion), and ISO 139 (heat aging) tests. Belts must typically withstand 3,500 lbf (15.6 kN) static pull with less than 25 percent elongation. Random dynamic tests simulate crash forces to validate system integrity.

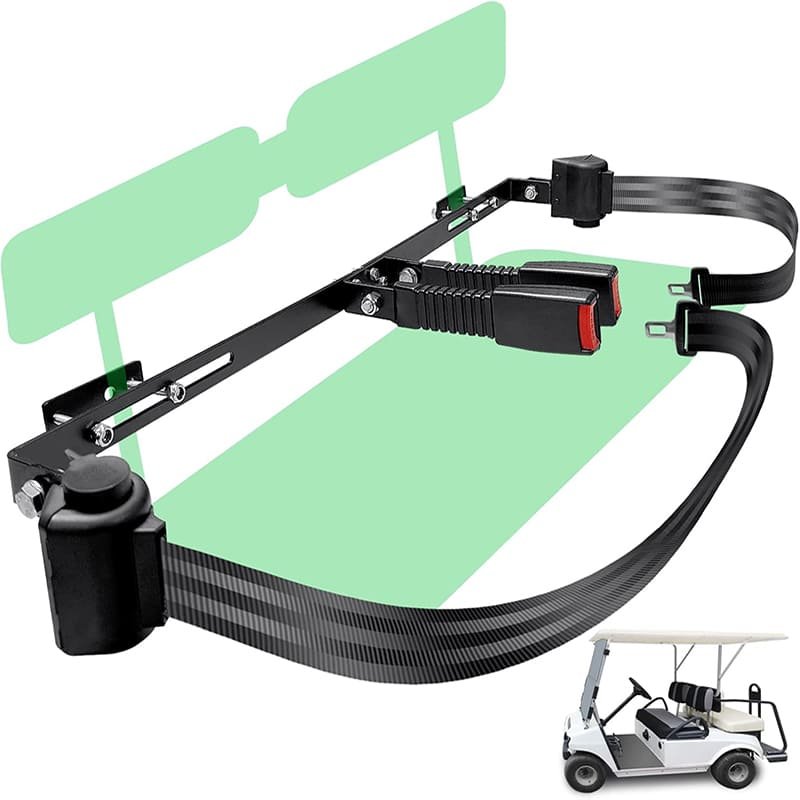

Why Is Polyester the Dominant Material in Seat Belt Fabric?
Polyester dominates due to its high tensile strength, low elongation, UV resistance, abrasion durability, moisture stability, and cost-effectiveness.
Mechanical Properties vs Alternatives
Polyester’s strength-to-weight ratio and low creep under load outperforms most alternatives. While nylon is slightly stronger, its higher elongation can allow excessive occupant movement before locking, making polyester the safer, stiffer choice for typical automotive use.
Environmental Resistance
Polyester resists UV degradation, mildew, and most chemicals (oils, fuels, cleaning agents). It maintains mechanical properties across –40 °C to +100 °C, outperforming nylon, which can hydrolyze under prolonged moisture exposure and heat stress.
Cost and Availability
Global PET production exceeds 50 million metric tons annually for textiles, packaging, and bottles. This scale drives down raw material costs. Manufacturers benefit from stable supply chains and standardized polymer grades, ensuring consistent quality and price.
Lifecycle and Longevity
Automotive seat belts are designed for the vehicle lifespan—typically 15–20 years. Accelerated aging tests (heat, UV, ozone) confirm polyester’s ability to retain >90 percent of its original strength after prolonged exposure, reducing replacement frequency.
Recycling Considerations
Recycled PET (rPET) from bottles is increasingly used in non-critical webbing applications. However, virgin polyester remains standard for seat belts to ensure traceable, certified performance. Research into closed-loop recycling aims to bridge performance gaps.
Are There Specific Regulations and Standards Governing Seat Belt Materials?
Seat belt materials must comply with regulations like FMVSS 209 (US), ECE R16 (EU), ISO 6683, and other national standards for strength and durability.
| Standard | Region | Strength Requirement | Elongation Limit | Test Methods |
|---|---|---|---|---|
| FMVSS 209 | USA | 3,500 lbf (15.6 kN) | ≤ 25 percent | Static tensile, abrasion |
| ECE R16 | EU | 1,600 daN (16 kN) | ≤ 25 percent | Dynamic crash tests |
| ISO 6683 | Intl | Class A, B, C definitions | ≤ 25 percent | Field of view, cyclic |
| JIS D 4604 | Japan | 1,600 daN | ≤ 25 percent | Tensile, abrasion |
FMVSS 209 Requirements
In the US, FMVSS 209 mandates a minimum static tensile strength of 3,500 lbf and limits elongation to 25 percent. Abrasion cycles and heat aging tests ensure material integrity under real-world conditions. Manufacturers submit test reports to NHTSA for certification.
ECE R16 Criteria
Europe’s ECE R16 regulation specifies dynamic crash testing at 50 km/h for complete restraint systems, plus static webbing tests at 16 kN. Material markings must include manufacturer, year, and standard code for traceability across borders.
ISO and JIS Standards
International ISO 6683 covers seat belt assembly in earth-moving and agricultural machinery, while JIS D 4604 aligns closely with ECE R16 for automotive webbing. These standards focus on static strength, wear resistance, and elongation under load.
Testing Frequency and Methods
Regulatory bodies audit production facilities annually and witness tests that include tensile, elongation, UV exposure, and dynamic sled tests. Random sampling ensures ongoing compliance, with failure triggering recalls or production halts.
Regional Variations and Updates
Emerging markets (Brazil’s INMETRO, China’s GB 8918) adopt similar requirements but may differ in test speeds or dynamic test setups. Stay tuned: new updates are phasing in stricter dynamic load testing and mandatory webbing wear indicators.

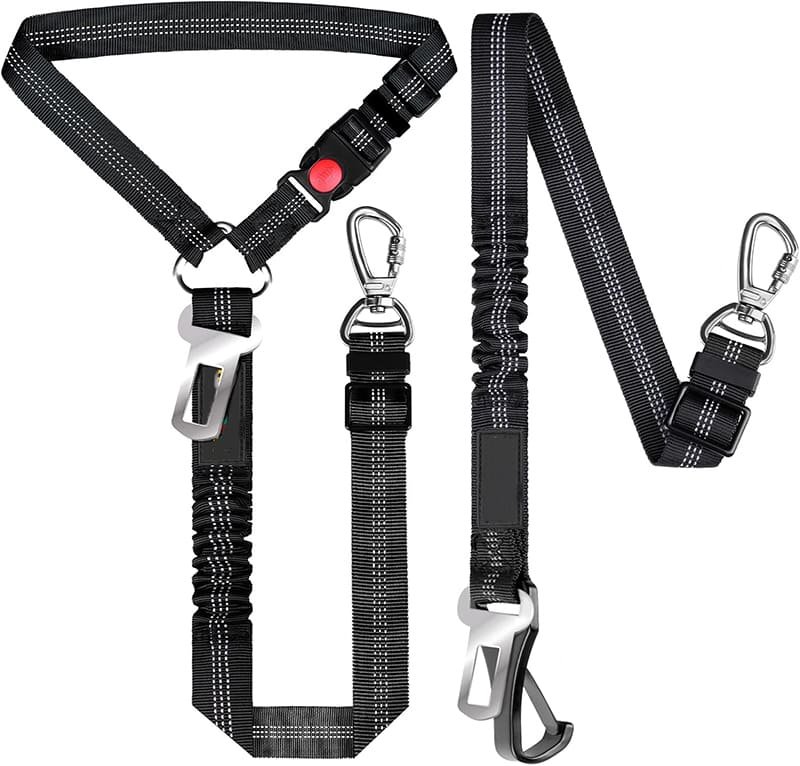

How Do Coatings and Surface Treatments Enhance Seat Belt Performance?
Coatings like silicone, polyurethane, or acrylic improve abrasion resistance, water repellency, friction control, and UV stability in seat belts.
Types of Coatings (Silicone, PU, Acrylic)
Silicone coatings add smoothness and reduce friction in retractors. Polyurethane (PU) enhances abrasion resistance and water repellency. Acrylic finishes boost UV stability and mildew resistance without significantly altering fabric hand.
Functional Benefits per Coating
- Silicone: Enables effortless retraction and buckle operation, reduces belt noise.
- PU: Creates a tough outer layer that resists scuffs and oil.
- Acrylic: Shields against UV degradation and environmental aging.
Application Methods (Dip, Spray, Roller)
Coatings may be applied via dip coating (immersion), spray guns (targeted application), or roller coating (uniform, high-speed). Choice depends on production volume and required thickness. Excessive coating can stiffen webbing; operators calibrate pick-up rates carefully.
Durability and Wear Tests
Post-coating, webbing undergoes ASTM D3939 (flex resistance) and accelerated weathering tests (UV chamber). Belts must retain ≥90 percent tensile strength and show no cracking after 2,000 flex cycles.
Impact on Feel and Noise
Beyond protection, coatings influence tactile feedback. Silicone provides a silky feel, acrylic retains a natural texture, and PU adds slight stiffness. Designers balance performance with passenger comfort and minimize buckle rattle through careful coating selection.
Are There Eco-Friendly or Recycled Alternatives for Seat Belt Webbing?
Sustainable options include recycled PET, bio-based polyamides, and repurposed military-grade webbing—balancing eco-impact with strength requirements.
Recycled Polyester (rPET) Sources
rPET is harvested from used plastic bottles, processed into chip form, and re-extruded into filaments. While cost-effective and reducing landfill waste, rPET often exhibits slightly lower tensile strength (~850 MPa). Ongoing R&D aims to match virgin PET performance.
Bio-Based Polymers (PLA, PA11)
Polylactic acid (PLA) from corn starch and bio-polyamide 11 (from castor oil) offer renewable alternatives. PLA has good strength but lower heat resistance; PA11 performs closer to nylon but at higher cost. Both require extensive testing for crash-worthiness.
Upcycled Materials from Airbags and Military Gear
Discarded airbags use high-strength nylon or polyester fabrics. After rigorous cleaning and testing, they can be repurposed into non-critical webbing products (pet leashes, straps). Military-spec webbing—often aramid-based—can be upcycled for specialty uses, though cost and traceability limit broad adoption.
Lifecycle Analysis Comparisons
Lifecycle assessments (LCAs) compare carbon footprints: virgin polyester (~2.15 kg CO₂e/kg) vs rPET (~1.55 kg CO₂e/kg). Bio-polymers range from 1.2 – 2.0 kg CO₂e/kg depending on feedstock and production methods. Transparency in LCAs guides OEMs toward greener choices.
Certification and Labeling
Globally recognized eco-labels (Global Recycled Standard, USDA BioPreferred) certify recycled and bio-based content. Automotive OEMs increasingly require end-of-life recyclability targets, pushing supply chains to source certified materials.
