Why Are Safety Belts Important: Essential Guide for Fall Protection

In industries ranging from construction to window‑washing at dizzying heights, safety belts stand between life and tragedy. Every year, thousands of workers suffer falls that could have been prevented with the right protective equipment. A properly chosen and fitted safety belt not only arrests a fall but also gives workers the confidence to focus on their tasks, boosting productivity and morale.

A safety belt is a load‑bearing strap system designed to arrest or limit a fall by distributing forces across the pelvis, thighs, and torso. It’s essential because it reduces impact forces on the body, prevents workers from hitting the ground, and meets regulatory requirements to minimize workplace fatalities and serious injuries.

Picture this: a roofer stepping onto a wet surface, harnessed by a sturdy belt—every knot and adjustment calibrated—knows that a single slip won’t be fatal. That moment of trust between human and equipment is the culmination of design standards, material science, and practical rigging know‑how. Read on to understand exactly what makes safety belts indispensable, how they function, and which types suit your operation’s unique needs.

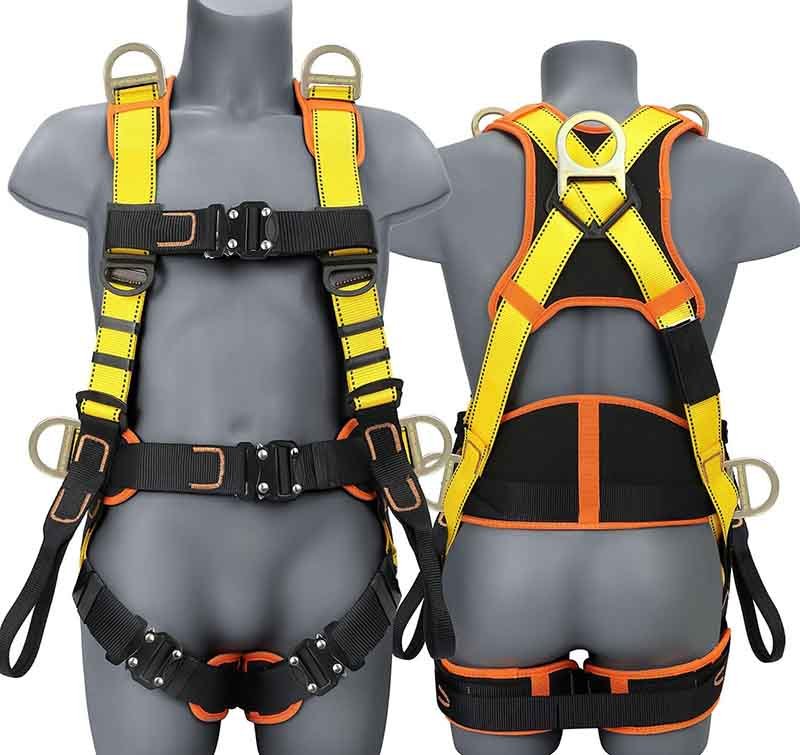

What Is a Safety Belt and Why Is It Essential?

A safety belt is a waist‑and‑thigh webbing system designed to anchor workers securely to a fixed point. It’s essential because it prevents uncontrolled falls by distributing arresting forces across stronger body areas, reduces injury severity, and ensures compliance with safety regulations—safeguarding both employees and enterprises from costly accidents.

A safety belt—sometimes called a positioning belt—consists of high‑tensile webbing that wraps around the waist and usually includes leg loops. Unlike a full‑body harness, which spreads forces over shoulders, torso, and legs, a safety belt concentrates load transfer around the pelvis and upper thighs. This targeted design makes belts lighter and less restrictive, ideal for tasks where workers need freedom of movement close to an anchor point, such as tower inspection, facade maintenance, or drilling operations.

How It Works

When a fall occurs, the belt’s lanyard attachment point (often a dorsal D‑ring) catches on an anchor. The belt—and any integrated shock absorber—then dissipates kinetic energy by elongating slightly, reducing peak forces on a person’s body. For example, an energy‑absorbing lanyard might tear in a controlled pattern over 300 mm, cutting deceleration forces from around 2,000 lbf to approximately 800 lbf. This mitigation is critical: sudden stops with unabsorbed forces above 1,500 lbf risk spinal compression and internal injuries.

Why It’s Essential

1. Injury Reduction: By spreading arrest loads across the pelvis and thighs—areas supported by large bone structures—belts minimize concentrated stress on soft tissue.
2. Regulatory Compliance: Standards such as OSHA 1926.502(d) (U.S.) and EN 358 (Europe) require appropriate fall‑protection equipment when working above specified heights (e.g., 1.8 m). Certified belts bear labels indicating test ratings and manufacturing dates.
3. Enhanced Productivity: Workers confident in their gear operate more efficiently. A lightweight belt that stays in place allows technicians to focus on tasks rather than constantly re‑adjusting restrictive harness straps.
4. Cost‑Effectiveness: For tasks involving positioning rather than full arrest, belts are more economical than full‑body systems—both in purchase price and in reduced time spent donning and adjusting equipment.

Choosing the Right Belt

Not all belts are created equal. Look for wide, padded waistbands for comfort, corrosion‑resistant hardware for harsh environments, and clear adjustment ranges that accommodate apparel layers. Always verify certification markings and schedule routine inspections—frays, cuts, or hardware damage necessitate immediate replacement.

In sum, a safety belt is a straightforward yet sophisticated line of defense. When selected, fitted, and maintained properly, it transforms a potentially fatal slip into a momentary pause—keeping workers safe and operations running smoothly.

How Do Safety Belts Prevent Falls and Injuries?

Safety belts prevent falls by anchoring the wearer to a secure point and distributing arrest forces across the hips and thighs. In a slip event, the belt and attached lanyard limit descent distance and use energy‑absorbing elements to reduce peak deceleration, dramatically lowering the risk of blunt trauma, internal injury, and suspension‑related complications.

When a worker loses their footing at height, gravitational acceleration (9.8 m/s²) rapidly increases their velocity. A safety belt system—comprising the waist belt, leg loops, an energy‑absorbing lanyard, and a secure anchor—halts this fall within a controlled distance, typically under 1.8 meters. By keeping the worker close to the anchor point, the system minimizes both fall distance and the resulting impact energy, which otherwise could exceed human tolerance.

Energy Absorption Mechanics

Central to fall mitigation is the shock‑absorbing lanyard. This component uses specialized stitching or tear‑webbing that deliberately fails under load over a designated length (usually 200–350 mm). As the lanyard “unspools,” it extends deceleration time, converting kinetic energy into the work of tearing fibers, and reduces peak arrest forces from around 2,000 lbf to under 1,000 lbf. Controlled deceleration prevents abrupt stopping, which can cause spinal compression, rib fractures, and internal hemorrhage.

Force Distribution

Unlike narrow ropes or full‑body harnesses, safety belts concentrate load transfer over the pelvis and thighs—areas reinforced by large bone structures. This wide-webbing design spreads arrest forces over a greater surface area, reducing stress per square inch on soft tissues. A properly fitted belt will distribute up to 80% of the arrest load through the pelvic girdle, sparing the lumbar spine and abdomen from excessive strain.

Fall Distance Limitation

Belts paired with fixed-length lanyards or self‑retracting lifelines actively limit free‑fall distance. OSHA stipulates that free fall must not exceed 6 ft (1.8 m) and total arrest distance no more than 7 ft (2.1 m). By choosing the correct lanyard length and anchor height, employers ensure that a falling worker never contacts the ground or lower level, avoiding secondary injuries from ground impact.

Suspension Trauma Prevention

A critical but often overlooked benefit is post‑arrest suspension management. Extended hanging in a vertical position can lead to blood pooling in the legs, causing dizziness, unconsciousness, or even death if not rescued promptly. Modern safety belt systems incorporate quick‑release buckles and rescue loops, enabling self‑rescue or rapid retrieval by colleagues. Some belts feature leg‑strap aeration channels to maintain circulation while suspended.

Psychological Confidence

Finally, the trust workers place in their PPE influences behavior. Knowing they’re secured by an engineered barrier against gravity encourages focus and reduces task hesitation. Studies in high‑rise construction have shown a 25% increase in productivity when crews use well‑designed, comfortable belt systems versus outdated or ill‑fitting alternatives.

By combining mechanical energy absorption, strategic force distribution, fall‑distance control, suspension‑trauma countermeasures, and user confidence, safety belts form a comprehensive defense that transforms potentially fatal slips into managed safety events.

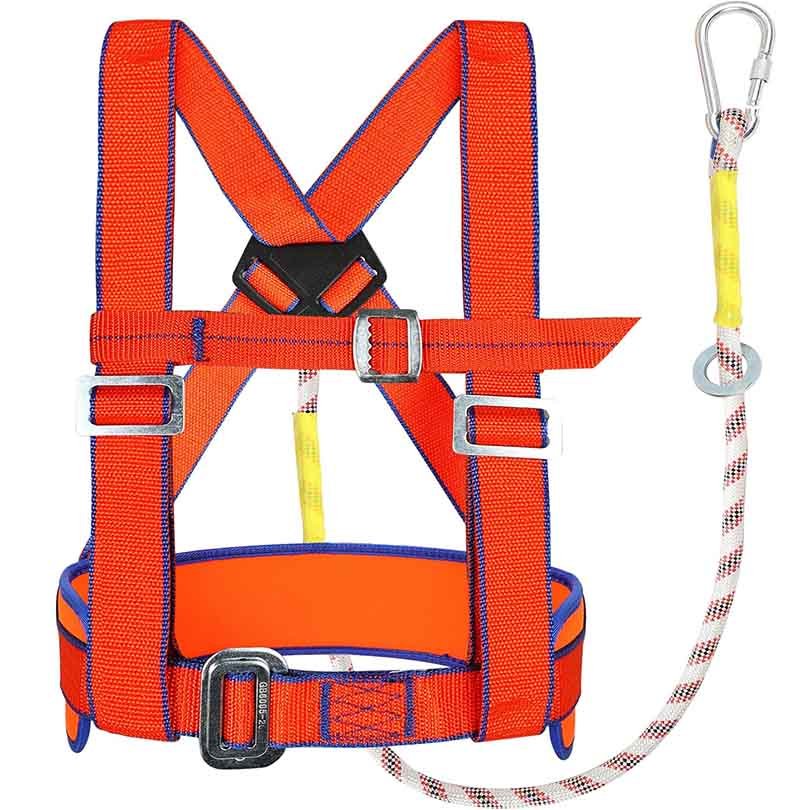

Which Components Make Up a Complete Safety Belt System?

A complete safety belt system comprises the belt itself, leg straps, an energy‑absorbing lanyard, connectors (carabiners), and a secure anchor point. Each component works together to arrest falls safely and comply with relevant safety standards.

A typical system starts with the waist belt, made from 45 mm webbing rated to 22 kN. Integrated leg straps distribute load and prevent inversion. Quality belts feature reinforced stitching at all load‑bearing seams, validated by pull‑tests up to 27 kN.

The energy‑absorbing lanyard, the system’s frontline shock mitigator, is designed to deploy over 200–350 mm under load. Materials range from tearing‑stitched textile channels to polyurethane tear-webs, each with specific activation thresholds. Selecting the correct deceleration rating (typically 6 kN max) ensures forces remain within human tolerance.

Connectors—snap hooks or carabiners—must be self‑locking and forged steel or alloy aluminum. Gate strength minimums: closed gate 22 kN, open gate 7 kN. Many modern systems use swivel carabiners to reduce twisting of the lanyard during use.

Lastly, a secure anchor is essential. Anchor points should support at least 12 kN per user. In many regions, approved anchorage connectors, beam anchors, or engineered structural tie‑backs are used, each verified by a qualified engineer.

The synergy of belt, lanyard, connectors, and anchor transforms disparate parts into a unified fall‑arrest system. Failure of any one element compromises the whole; thus, integrated systems tested and certified to EN 361 (full-body harness) or EN 358 (belt) ensure compatibility and reliability.

How Do You Choose the Right Type of Safety Belt?

Selecting the right safety belt involves matching the work environment and task requirements to belt features—positioning vs. fall‑arrest, attachment points, adjustability, and material. Assess anchor heights, mobility needs, and regulatory mandates. Confirm certification (OSHA, EN, CSA) and choose a belt whose adjustability, padding, and hardware suit your crew’s body sizes, clothing layers, and exposure conditions.

1. Conduct a Hazard and Task Assessment

Begin by mapping out every task at height. Are workers simply positioning for extended periods on towers or poles (e.g., telecommunications, signage maintenance)? Or might they face unrestricted falls of several meters (e.g., window washing, steel‑erection)? Positioning belts (compliant with EN 358) with side D‑rings allow hands‑free work but do not meet fall‑arrest requirements. For potential free‑fall scenarios, select a fall‑arrest belt (EN 358 + EN 361 features) with a dorsal D‑ring and integrated energy absorber.

2. Evaluate Attachment Points and Lanyard Compatibility

Positioning belts typically sport dual side D‑rings for lanyard hooking at hip level, supporting work‑position lanyards that hold users steady. Fall‑arrest belts have a single dorsal D‑ring centered between shoulder blades for controlled loading during a fall. Some hybrid belts offer both side and dorsal rings—ideal for tasks requiring both positioning and arrest capability. Ensure lanyards or self‑retracting lifelines you plan to use match the belt’s rated load (minimum 22 kN webbing strength) and connector type (avoiding mismatched snap‑hook sizes).

3. Account for Comfort, Fit, and Adjustability

Workers in climates with varied layers (winter parkas to summer shirts) need belts with at least 150 mm of waist adjustability and leg straps that lock securely without cutting off circulation. Look for padded waist sections to reduce fatigue during prolonged wear. Wide, high‑tensile polyester or nylon webbing remains the standard, but some belts now incorporate breathable mesh or moisture‑wicking liners—enhancing comfort in hot or humid conditions.

4. Material and Environmental Considerations

Chemical plants or painting operations expose belts to solvents and acids. Here, opt for chemical‑resistant nylon webbing and stainless‑steel hardware. In maritime or offshore wind applications, UV‑stabilized polyester and corrosion‑proof buckles extend service life. If spark‑resistance is needed (e.g., oil‑rig maintenance), choose non‑metallic connectors rated for explosion‑proof environments.

5. Verify Standards and Certification

Never select an uncertified belt. In North America, OSHA 1926.502(d) requires fall‑arrest gear limiting arrest forces to ≤1,800 lbf. Canadian worksites look for CSA Z259 labeling. European operations mandate EN 358 (positioning belts) and EN 361 (full‑body harness) compliance. Certified belts carry clear manufacturer markings, serial numbers, and date of manufacture—evidence of rigorous testing.

6. Pilot Testing and Worker Feedback

Before full rollout, field‑test a small batch with representative users. Observe ease of donning, range of motion, and comfort during real tasks. Gather feedback on strap tightening, buckle operation, and perceived stability when leaning or reaching. Iterative refinements based on this feedback help lock in a belt choice that workers will actually wear consistently.

By systematically evaluating task profiles, attachment requirements, comfort factors, environmental exposures, and certification standards—and by engaging workers in the selection process—you’ll choose a safety belt that not only protects lives but also enhances productivity and compliance on every project.

How Should You Properly Inspect and Maintain a Safety Belt?

Inspect belts before each use for fraying, cuts, and hardware damage. Maintain by cleaning with mild soap and drying away from direct heat. Store belts in a cool, dry place to preserve webbing integrity.

Pre‑use inspections are mandated daily. Check webbing for abrasions, chemical burns, or UV discoloration. Any cut deeper than 0.5 mm or fraying exceeding 3 mm warrants belt retirement. Hardware—buckles, D‑rings, and carabiners—must open and close smoothly; springs should snap back, and gates must lock securely.

Periodic formal inspections (every 6 months) by a competent person should include load testing fixtures, stitching integrity checks using magnification, and verification of serial numbers against records. Document each inspection in a log with dates and inspector signature.

Cleaning protocols: rinse belts in warm water with pH‑neutral soap. Avoid solvents or chlorine bleach. After washing, hang to air‑dry; do not machine‑tumble or expose to direct sunlight or radiators. Excessive heat (over 60 °C) can degrade webbing strength by up to 30%.

Storage guidelines: store flat or hanging in ventilated lockers. Avoid folding or bunching, which creates weak points over time. Don’t store near chemicals, oils, or in areas prone to pests.

A typical maintenance calendar:

Rigorous inspection and maintenance extend belt lifespan from 3 years (typical) to 5 years or more, maximizing ROI while ensuring worker safety.

How Do You Correctly Fit and Adjust a Safety Belt?

To fit a safety belt correctly, step into the belt, snug the waist webbing above the hip bones, and tighten leg straps evenly around the thighs—allowing no more than two fingers’ width of space. Secure all buckles and test by tugging the dorsal D‑ring; it should hold without slipping, ensuring the belt stays in place during work and potential fall arrest.

Achieving a proper fit for a safety belt is crucial not only for comfort but for the belt’s ability to arrest a fall safely. An ill‑fitted belt can shift under load, concentrate forces on soft tissues, or even slip off. Follow these steps and best practices:

1. Initial Preparation and Inspection

• Inspect Before Fitting: Check webbing for cuts, fraying, or chemical damage. Ensure buckles and D‑rings are free of deformation, corrosion, and operate smoothly.
• Clear Clothing Layers: Remove bulky items from pockets. Ideally, fit belts over standard work clothes; significant layering (e.g., winter coats) may require a larger belt size.

2. Donning the Belt

• Step‑In or Over‑Head?: Many safety belts offer a step‑in design: lay the belt on the ground, step through, and pull up. Others have an over‑head method similar to a harness. Follow manufacturer instructions to avoid twisting webbing.
• Positioning the Waist Belt: Slide the belt up so the padded section (if present) sits comfortably above the iliac crest (hip bones). This ensures load transfer engages the pelvis, not the abdomen.

3. Adjusting Waist Webbing

• Snug Fit: Pull the free webbing tail through the buckle until the belt is snug. You should be able to insert two flat fingers between the belt and your body—any more indicates looseness; less may restrict circulation.
• Buckle Security: Engage the buckle fully. If ratchet or quick‑connect buckles are used, listen for the audible “click” confirming proper closure.

4. Securing Leg Straps

• Symmetric Tightening: Adjust each leg strap so it sits at the top of the thigh, below the buttock fold. Tighten until you can slide two fingers between the strap and thigh—this gap maintains blood flow while preventing upward slippage.
• Avoid Twists: Leg loops must lie flat; twisted straps can create pressure points and weaken the webbing’s cut‑resistance.

5. Final Checks and Functional Testing

• D‑Ring Test: Attach your lanyard or connector to the dorsal D‑ring. Pull downward and back on the lanyard—if the belt shifts or slides, re‑tighten waist and leg adjustments.
• Mobility Trial: Perform a series of movements: squat, reach overhead, and bend sideways. The belt should remain positioned and not “ride up” or loosen.
• Comfort Assessment: Walk, climb a ladder, and mimic task‑specific actions. Discomfort often leads to improper wear in the field, so address any pinching or chafing areas immediately.

6. Ongoing Fit Management

• Re‑Adjust as Needed: Body positions and clothing layers change. Re‑check fit whenever gear is removed or after a fall event—even an arrested fall can shift stitching and deform webbing.
• Size Records for Shared Equipment: For belts issued to multiple workers, maintain a size chart (e.g., S, M, L) and log each worker’s preferred belt. Color‑coding or labeling helps ensure the correct belt is selected each shift.

By meticulously following these fitting and adjustment procedures—and verifying belt stability through functional testing—you ensure that in the event of a fall, the safety belt performs as engineered. A well‑fitted belt not only saves lives but also encourages consistent use, reinforcing a culture of safety on every job site.

What Are the Key Regulations and Standards for Safety Belt Use?

Key regulations include OSHA 1926.502(d) in the U.S., EN 358/EN 361 in Europe, and CSA Z259 in Canada. These standards define design, load ratings, inspection intervals, and user training requirements to ensure belt safety and reliability.

OSHA 1926.502(d) mandates that employers provide fall protection when workers are 6 ft (1.8 m) above a lower level. Belts must limit arresting forces to 1,800 lbf and arrest falls within 3.5 ft. However, note that OSHA recommends full‑body harnesses over belts for primary fall arrest—belts are acceptable only where positioning, not arrest, is the primary function.

In Europe, EN 358 covers work positioning belts and lanyards, while EN 361 applies to full‑body harnesses. Equipment must pass static load tests at 15 kN and dynamic tests that simulate a 100 kg mass falling 2 m. Markings must include manufacturer, year, and serial number.

Canada’s CSA Z259 series parallels these: Z259.1 for body belts, Z259.10 for full‑body harnesses, and Z259.2.2 for energy absorbers. Each standard specifies user instructions, inspection records, and requalification schedules.

Training is integral: regulations require that authorized persons receive hands‑on training in selection, use, inspection, and rescue procedures. Employers must document training completion and refresh it annually.

Non‑compliance carries steep penalties: OSHA fines up to $13,000 per violation, plus increased worker’s comp premiums. Beyond legal risks, reputational damage from fall incidents can disrupt projects and erode client trust. Investing in compliant belts and training safeguards both people and profit.

What Innovations Are Shaping the Future of Safety Belt Technology?

Emerging innovations include smart belts with integrated fall‑sensors, lightweight composite hardware, and eco‑friendly recycled webbing. These advances enhance safety, traceability, and sustainability in fall‑protection systems.

Connected Safety Belts: IoT‑enabled belts now embed accelerometers and gyroscopes that detect fall events in real time. Paired with mobile apps, they automatically alert supervisors and trigger rescue protocols within seconds—crucial in remote or confined‑space operations.

Advanced Materials: Carbon‑fiber reinforced polymer (CFRP) buckles reduce weight by up to 30% while maintaining 25 kN strength. New webbing blends incorporate recycled PET fibers, offering UV resistance comparable to virgin polyester—and reducing environmental footprint.

Modular Systems: Universal buckle interfaces allow mixing and matching belts, leg straps, and energy absorbers from different manufacturers—cutting replacement costs and simplifying inventory. QR‑coded components facilitate digital inspection logs, eliminating paper records and ensuring compliance.

Ergonomic Enhancements: 3D‑molded buckles contour to the wearer’s body, reducing pressure points during extended wear. Integrated cooling channels and moisture‑wicking pads improve comfort in hot climates, increasing user acceptance and compliance.

Sustainability Certifications: As ESG considerations rise, ANSI and EN standards now reference lifecycle analyses. Manufacturers are developing cradle‑to‑grave programs, offering belt refurbishment and recycling services to minimize waste.

Together, these innovations promise belts that are smarter, stronger, and kinder to both workers and the planet—reshaping what it means to be safe at height.

Conclusion

Whether you’re outfitting a small team or managing a multi‑site operation, the right safety belt system is non‑negotiable. At Szoneier, we leverage 18 years of webbing expertise to deliver customizable, certified, and wholesale safety belts tailored to your sector’s demands. From initial hazard assessment to final fit‑testing and training materials, we partner with you every step.
