What Is Polyester Webbing and How Do You Choose the Right Type?

Polyester webbing is the quiet backbone of modern soft goods—from backpack straps and cargo tie-downs to pet leashes, marine rigging, medical belts, and automotive interiors. Yet, many buyers still treat it as a commodity strip of fabric. That blind spot costs money (and sometimes safety) because “polyester webbing” is not one thing: the yarn chemistry, weave construction, finishing, and quality controls radically change its strength, stretch, UV stability, feel, and lifetime cost. If you’ve ever had a strap creep longer under load, fade after a season outdoors, or delaminate at the buckle, you already know why choosing the right polyester webbing matters.

Polyester webbing is a woven PET strap engineered for strength, low stretch, and outdoor durability. To choose the right type, match construction (flat, tubular, seatbelt), specs (width, thickness, breaking strength, elongation), and finishes (color, coatings, FR/UV) to your environment, load, and compliance needs. Compared with nylon and polypropylene, polyester balances strength, UV resistance, and low water uptake—making it a go-to for outdoor and industrial use.

Here’s the fun part: once you know the levers, you can dial in performance like a pro—swap a plain weave for seatbelt satin to reduce chafe, use solution-dyed yarns to fight UV fade, or add a thin PU to increase abrasion life without making the strap plasticky. A sports brand we support cut warranty returns by 42% simply by switching from a soft twill to a tighter satin and tightening elongation control. Let’s make your next project just as dialed.

What is Polyester Webbing and How Is It Made?

Polyester webbing is a woven strap made from PET (polyethylene terephthalate) filaments or spun yarns. Manufacturers control yarn denier, weave (flat, tubular, herringbone, seatbelt/satin), and finishing (heat-setting, calendaring, edge sealing) to hit target specs like width, thickness, breaking strength, and elongation. The result is a durable, low-stretch, UV-stable strap ideal for outdoor gear, cargo systems, pet products, marine use, and automotive interiors.

Polyester (PET) is a thermoplastic polymer with a relatively high melting point (~255–265 °C) and low moisture uptake (<1%). Those two facts alone hint at why polyester webbing performs outdoors: it stays dimensionally stable when wet and resists UV better than nylon. Webbing producers typically use continuous filament yarns (for high strength and smooth hand) or a mix with textured yarns (to tune softness and grip).

Core build steps:

1. Yarn selection: Denier (e.g., 300D–1500D per end) and filament count decide the balance of strength, stiffness, and surface.
2. Warping & beaming: Parallel warp ends are arranged to the loom plan (ends per inch matter for density and feel).
3. Weaving:
   • Plain/flat weave for all-round strength and economy.
   • Seatbelt/satin for high cover, silky hand, and reduced edge chafe.
   • Herringbone/twill to add texture or anti-slip character.
   • Tubular (double-layer) to protect edges and increase crush resistance.
4. Finishing: Heat-setting locks geometry; calendaring compacts surface; edges are sealed by hot knife or ultrasonic cutting to prevent fray. Optional coatings (PU/PVC, WR, anti-microbial, FR) tailor function.
5. QC & testing: Tensile and elongation curves, width/thickness tolerance, colorfastness, abrasion, UV aging.

Typical spec targets vary by industry, but this cheat sheet helps you speak the same language with suppliers:

• Breaking strength depends on width, weave, yarn denier, and density.

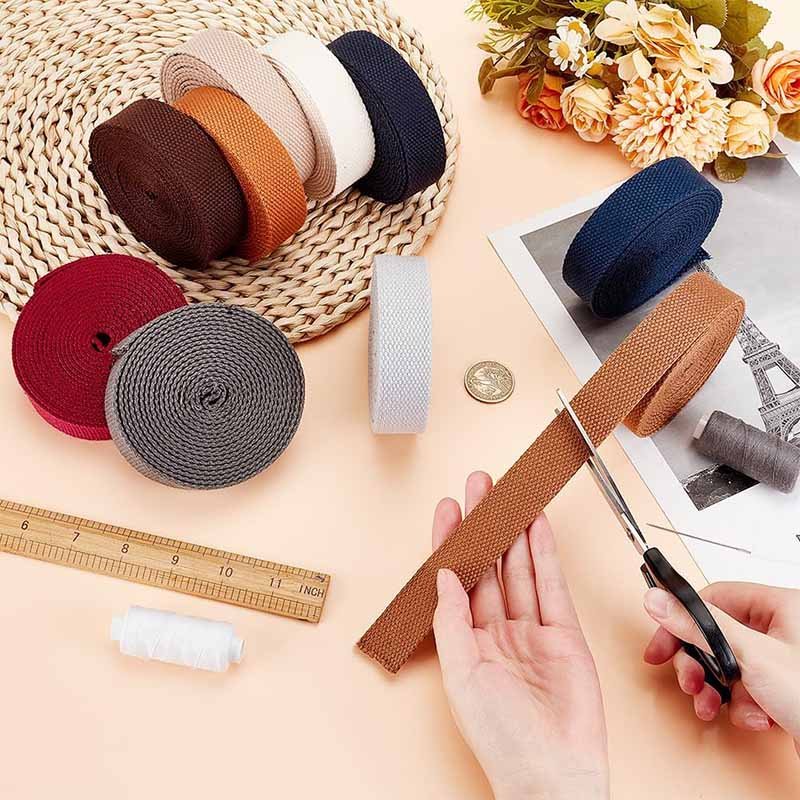

Which Properties Make Polyester Webbing Stand Out?

Polyester webbing stands out for low stretch, excellent UV and abrasion resistance, low water uptake, and stable performance across temperatures. It also resists many salts and mild acids. With proper finishes (WR, FR, anti-slip), it becomes a versatile strap for outdoor and industrial tasks where nylon can absorb moisture and polypropylene can degrade faster under sun.

Think of polyester as the “balanced athlete” of webbing materials. It may not have nylon’s peak dry strength or PP’s featherweight density, but it keeps showing up with reliable results in sun, rain, and grit.

UV + weather: Polyester retains color and strength longer outdoors than nylon and PP. Solution-dyed polyester (color added in the chip) typically outlasts piece-dyed options in fade tests.

Abrasion & surface: Tight satins/seatbelt constructions resist fuzzing against hardware and clothing. For grip (e.g., shoulder straps), a subtle twill/herringbone or micro-texture helps keep webbing from slipping.

Chemicals: Good resistance to salts and many mild acids; avoid strong alkalis and very high-temperature exposures.

Temperature: Usable from deep cold to about +120 °C continuous, well above most use cases.

Does Polyester Webbing Stretch?

Polyester has low working elongation (~2–3% at WLL) and modest permanent creep under sustained load. That’s why pack straps and tie-downs in polyester tend to stay set—unlike nylon, which can lengthen noticeably when loaded or wet.

Does Polyester Webbing Float?

No. Polyester’s density (~1.38 g/cm³) is higher than water, so it sinks. If you need flotation, polypropylene (density ~0.91 g/cm³) is the common choice; mixes or foam inserts can add buoyancy.

Is Polyester Webbing Fire Resistant?

Not inherently. Polyester is a thermoplastic that melts/shrinks from flame and will burn without FR chemistry. If you must meet flammability standards (e.g., FMVSS 302 for vehicle interiors, NFPA 701 for fabrics), ask for FR-treated polyester and verify test reports. Note: FR treatment may affect color shade, hand-feel, and durability—validate on production samples.

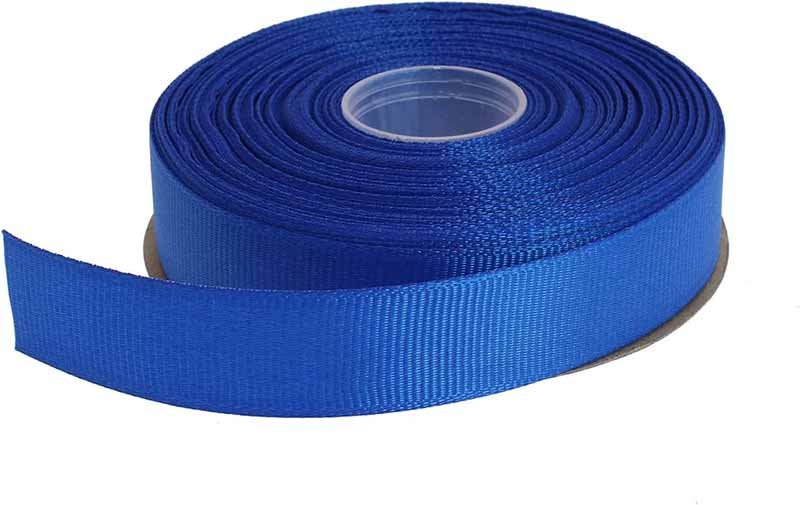

How Does Polyester Webbing Compare to Nylon and Polypropylene?

Compared with nylon and polypropylene (PP), polyester offers the best mix of UV resistance, low water absorption, and low stretch under load. Nylon can be stronger dry but absorbs water and stretches more; PP is light and floats but has lower UV stability and heat resistance. For outdoor, marine, and load-bearing straps, polyester is usually the most stable long-term choice.

Choosing between nylon, polyester, and PP is about environment + load + lifetime cost, not just lab strength.

Field implications:

• Outdoor longevity: Polyester wins; it fades and weakens slower than nylon/PP.
• Stretch critical? Polyester wins for low elongation; nylon’s stretch can be beneficial for energy absorption (e.g., fall arrest) but not for load holding.
• Marine float: PP floats; polyester/nylon sink.
• Soft hand against skin/clothing: Seatbelt-style nylon and polyester both feel great; nylon can be silkier, but check wet elongation.

Which is Better, Nylon or Polyester Webbing?

If your priority is dimensionally stable straps outdoors—that don’t grow longer in rain or under load—polyester is usually better. If you need energy absorption (dynamic elongation) or very soft, silky hand in dry conditions, nylon can be better. Many brands run polyester for load control and UV life, and reserve nylon for specialized safety or comfort roles.

Which Types of Polyester Webbing are Available?

Polyester webbing comes in flat, tubular, and specialty weaves like seatbelt/satin, herringbone, and jacquard logo. You can choose soft or stiff hand, lightweight or heavy-duty constructions, reflective yarns, and recycled rPET options. The “right” type balances hand-feel, abrasion life, elongation, and compatibility with your buckles, stitches, and environment.

Construction menu:

• Flat/plain: All-round workhorse; economical; wide spec range.
• Seatbelt/satin: High cover, smooth hand, low edge bite—great for wear against clothing, automotive interiors, pet leashes.
• Herringbone/twill: Adds grip and visual texture; useful where slippage is a problem.
• Tubular/double-layer: Cushions edges, improves crush resistance at hardware, good for load and comfort.

Special flavors:

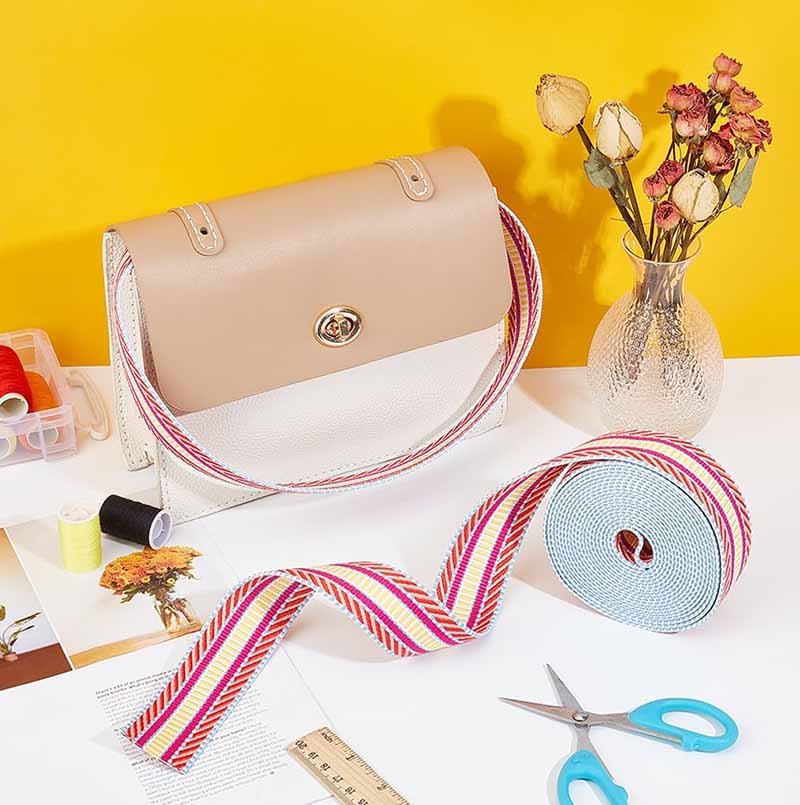

• Jacquard/logo weave: Integrate branding and anti-counterfeit.
• Reflective picks or yarns: Safety visibility for pets, runners, workwear.
• Stretch-managed builds: Tighter picks per inch and higher warp density to cap elongation variance.
• rPET (recycled polyester): Post-consumer bottles reborn as webbing; ask for traceability and dye/strength parity.
• Color systems: Solution-dyed for fade resistance vs. piece-dyed for color flexibility and lower MOQs.

Choosing hand-feel: “Soft” helps comfort and drape, but may fuzz sooner in abrasion; “stiff” tracks hardware and resists folding, but can feel harsh. Often, a seatbelt satin hits the sweet spot: soft to touch, tough in abrasion.

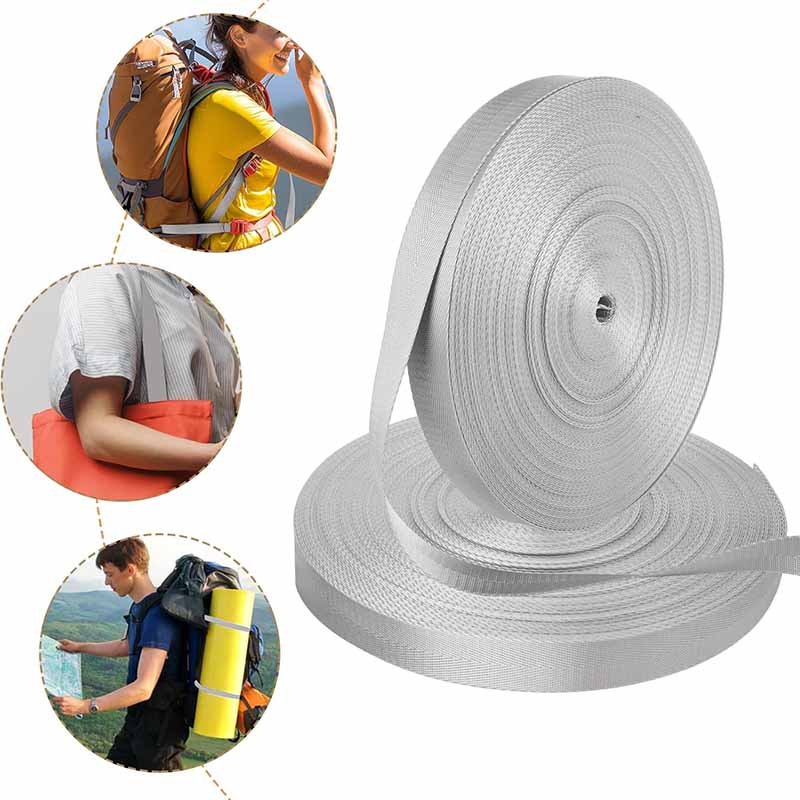

What Sizes, Ratings, and Standards Should You Know?

Specify width, thickness, breaking strength, and elongation—then derive a Working Load Limit (WLL) using an appropriate safety factor (often 3:1–7:1 by application). Confirm colorfastness, abrasion, and UV tests, plus required certifications (e.g., OEKO-TEX, REACH/RoHS). Ask for test methods and tolerances in writing to avoid surprises.

Core math:

• Breaking Strength (BS): Maximum force the webbing withstood in a standardized tensile test.
• Safety Factor (SF): Application-dependent. Personal safety slings often use ≥7:1; many cargo straps use 3:1–5:1.
• Working Load Limit (WLL): WLL = BS ÷ SF.

Example: A 25 mm seatbelt polyester webbing rated 18 kN (≈4,046 lbf).

• For SF 5:1 → WLL = 3.6 kN (≈809 lbf).
• For SF 7:1 → WLL = 2.57 kN (≈580 lbf).

Tolerance talk: State acceptable width (±0.5–1.0 mm typical), thickness (±0.1–0.2 mm), and color ΔE for production. Ask for coefficient of variation on tensile and elongation across batches if your application is sensitive.

Standards & tests (ask suppliers to name methods on COAs):

• Colorfastness: ISO 105 series / AATCC 8 (crock), AATCC 16 (light).
• UV aging: ASTM G154 (accelerated exposure).
• Abrasion: ASTM D3884 (Taber) or ISO 12947 (Martindale).
• Tensile: ASTM D6775 (webbing tensile) or equivalent.
• Flammability: FMVSS 302 (auto interiors), NFPA 701 (fabrics) as applicable.
• Chemical/eco: OEKO-TEX® Standard 100, REACH, RoHS declarations.

Spec planning table

How Do You Customize Polyester Webbing For Your Application?

Customization levers include color system (solution-dyed vs. piece-dyed), weave/hand (seatbelt, twill, tubular), coatings (PU/PVC, hydrophobic, anti-slip), FR options, jacquard branding, and hardware/assembly specs. Define stitching patterns, bar-tack counts, and buckle compatibility early. Always validate on production-grade samples under real-world loads.

Color & aesthetics:

• Solution-dyed yarns resist fade best; ideal for black and core colors.
• Piece-dyed expands palette and lowers MOQs—great for seasonal lines.
• Jacquard embeds logos without print wear-off; also deters counterfeits.
• Prints (screen/heat-transfer) are crisp but require abrasion awareness.

Performance finishes (cause-effect quick look)

Hardware & sewing system:

• Choose buckles, tri-glides, D-rings with radiused edges to minimize cut risk.
• Define bar-tack length, stitches per inch, thread type (bonded polyester/nylon), and backer tapes.
• For tubular webbing, use inner liners where you expect concentrated load at a stitch zone.

Process controls:

• Request sample Cpk/PPK or at least capability notes on width and tensile.
• Lock a shade standard (physical swatch + spectro values).
• Validate batch-to-batch elongation if strap length stability matters (e.g., harnesses).

Where Is Polyester Webbing Used And What Are The Selection Criteria?

Polyester webbing shines in outdoor/sports gear, backpacks, pet leashes/collars, marine rigging, industrial tie-downs, medical/support belts, and automotive interiors. Select by load, environment (UV/salt/temperature), hand-feel, hardware fit, regulatory needs, and cost. For long life outdoors with stable strap length, polyester is a safe first choice.

Use-case snapshots & what to prioritize:

• Backpacks/outdoor: Seatbelt satin for comfort; ≤3% elongation at WLL; solution-dyed black for fade control; thin PU for abrasion near hardware.
• Pet gear: Hand-feel + abrasion; jacquard or reflective picks for safety and branding; colorfastness (saliva/perspiration).
• Marine: UV + salt exposure; polyester with WR/DWR; PP only if float is needed (accept UV life trade-off).
• Industrial/cargo: Clearly state BS/WLL and SF; stiffer builds improve tracking in ratchets.
• Medical/support: Skin contact—smooth hand, antimicrobial options; verify wash durability.
• Automotive interiors: Flammability (FMVSS 302), low VOC, color match to trim; seatbelt weaves are common.
• Apparel trims: Lightweight, soft drape; tight color control and fray-free edges.

A quick chooser (rules of thumb)

• Stretch stability required? → Polyester (keep elongation ≤3%).
• Sun + weather all day? → Solution-dyed polyester.
• Needs to float? → PP (accept UV trade-off or add protection).
• Budget strap, indoor, short-life? → PP often adequate.
• Ultra-soft hand on skin? → Seatbelt satin (poly or nylon), but watch nylon’s wet stretch.

How Do You Source, Test, And Maintain Polyester Webbing?

Vet suppliers for OEM/ODM depth, test capability, and documentation. Lock specs (BS, elongation, tolerances), methods, and color standards in writing. Test for tensile, UV, abrasion, and colorfastness. In use, keep straps clean, inspect for cuts/fuzzing near hardware, and replace when damage or elongation exceeds limits.

Supplier vetting checklist:

• Process range: Can they run seatbelt, jacquard, tubular, rPET at your MOQs?
• Testing: In-house tensile/elongation rigs, color/UV/abrasion testing, third-party lab access.
• Documentation: COA with named test methods; batch traceability; REACH/RoHS, OEKO-TEX statements.
• Quality system: Clear tolerance control, corrective action discipline, pre-production sample flow.
• Development support: CAD loom plans, rapid sampling, color matching, logo integration, hardware/sourcing assistance.

Sampling → validation:

1. Lab samples: Verify width, thickness, BS, elongation, and hand-feel.
2. Pilot assembly: Run through buckles, sewing stations, bar-tacks; check edge fray and needle heat marks.
3. Field test: UV/salt/sweat exposure as applicable; load cycling to see creep and buckle slip.
4. Freeze the spec: Record shade numbers (e.g., ΔE≤1.0 vs. standard), finish add-on weight, and approved hardware lot.

Maintenance & replacement:

• Cleaning: Mild soap; avoid harsh alkalis/solvents which can embrittle fibers.
• Inspection intervals: Focus on hardware contact zones for cuts, glazing, or severe fuzzing.
• Retire/replace if: Cuts >10% width, melted/glazed spots, stitch pull-outs, or elongation beyond your spec. Keep a simple go/no-go card for line staff.

Bonus FAQs Embedded Above (Quick Reminders)

• Does polyester webbing stretch? Low stretch ~2–3% at WLL → stable strap length.
• Does polyester webbing float? No; it sinks (density ~1.38).
• Is polyester webbing fire resistant? Not by default; ask for FR-treated builds and verify.
• Which is better, nylon or polyester? For outdoor, low-stretch stability → polyester; for dynamic energy absorption or ultra-soft feel (dry) → nylon.
