Types of Webbing Slings: A Comprehensive Guide to Materials, Designs, and Selection

In many industries—from construction to shipping—webbing slings have become indispensable tools for lifting, rigging, and securing loads safely and efficiently. You’ve probably seen workers using slick straps to hoist heavy equipment or secure cargo onto flatbeds, yet few people stop to consider what makes one sling different from another. Choosing the right style, material, and capacity can mean the difference between a smooth operation and a costly safety incident.

Webbing slings are flat or tubular lifting straps made from synthetic or natural fibers. They are designed to cradle loads gently while distributing weight evenly across the lifting point. Because they come in many constructions—such as flat eye, round eye, endless, reinforced tubing—and are available in materials like nylon, polyester, polypropylene, or cotton, it’s easy to become overwhelmed when selecting one.

A webbing sling is a strong, flexible strap used to lift and secure loads without damaging delicate surfaces. Its flat or tubular construction distributes weight evenly, reducing pressure points on goods. By choosing the correct material—nylon for shock absorption, polyester for UV resistance, or polypropylene for chemical tolerance—you ensure safe lifting operations.

Imagine this: a manufacturing plant must shift a polished glass panel from its storage rack to a welding station. If workers rely on a simple chain sling, the metal links could scratch the glass. But a high-quality nylon webbing sling cradles that panel softly, preventing damage while securely lifting it into place. That’s the power of selecting the right webbing sling—and it’s exactly why you’re about to learn everything you need to know.

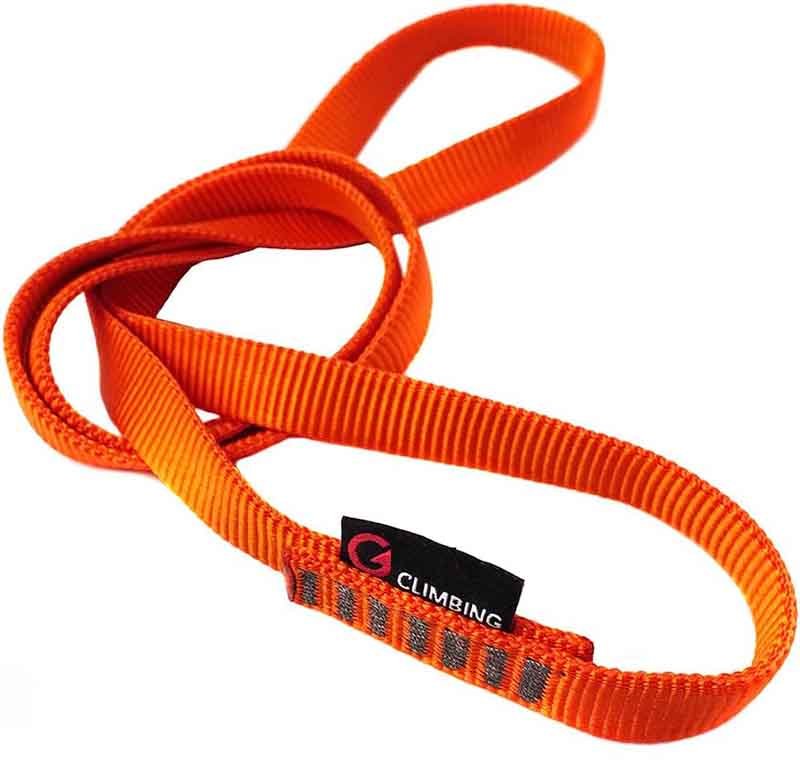

What Is a Webbing Sling and How Is It Used?

A webbing sling is a flat or tubular strap used to lift, secure, and position loads in industries like construction, manufacturing, and logistics. By hooking its looped ends to hoists or shackles, it wraps around loads—such as machinery, pallets, or structural components—distributing weight evenly to prevent damage and improve safety during lifting or load restraint operations.

What Are the 3 Main Types of Slings Used?

Within the broader world of lifting equipment, three primary sling categories dominate:

1. Chain Slings • Made from alloy steel links. • Extremely durable under high temperatures and rugged conditions. • Excellent for heavy-duty, sharp-edge loads—yet they can damage delicate surfaces.
2. Wire Rope Slings • Constructed from galvanized or stainless steel cables. • Offer good strength-to-weight ratio and moderate flexibility. • Suitable for applications requiring abrasion resistance, but they are heavy and can fray over time.
3. Webbing Slings • Fabric-based, either flat or tubular. • Gentle on load surfaces, lightweight, and flexible to wrap around odd shapes. • Ideal for lifting delicate or finished products without scratching or denting.

When someone asks, “What are the three main types of slings used?” they usually mean these three categories. Each has its own place. For glass, stone, plastic components, and finished metal assemblies, webbing slings often come out on top. Yet if you need to clear fields in a steel mill or move a loaded dumpster across rough pavement, chain or wire rope slings may still be your best bet.

How Many Types of Web Slings Are There?

There are several ways to categorize web slings—by material, construction style, or industry standard type. In most industrial catalogs you’ll find:

• Flat Eye Slings
• Round Eye Slings
• Endless (Grommet) Slings
• Reinforced or Tubular Slings
• Web Sling Type 3
• Web Sling Type 4
• Type 5 Slings

Depending on whether you count subtle variations—such as protective sleeves or color-coded indicators—the total “types” can range anywhere from 4 up to 8 or more. However, under OSHA and ANSI regulations, at least five distinct “Types” of synthetic web slings are defined in North America. We’ll unpack those in section 3.

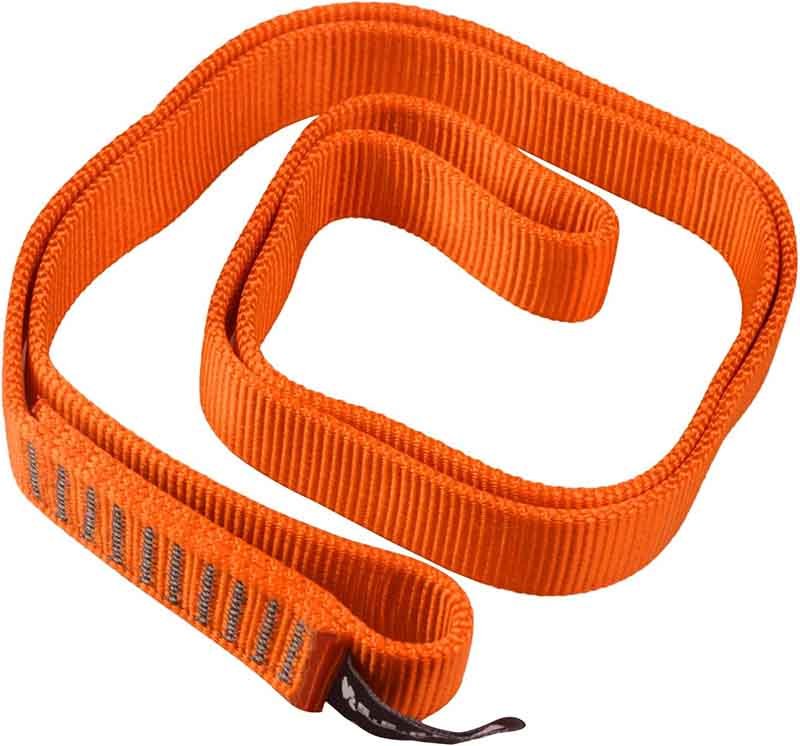

Which Materials Are Commonly Used to Manufacture Webbing Slings?

Webbing slings are most commonly made from nylon, polyester, polypropylene, or cotton fibers—each with unique strengths and weaknesses. Nylon excels at shock absorption, polyester resists UV light and moisture, polypropylene tolerates many chemicals and is lightweight, and cotton offers a low-cost, low-capacity option. Your choice depends on factors like load characteristics, environmental conditions, and budget.

What Are the Different Types of Webbing?

Webbing refers to the woven fabric used in slings and cargo straps. The main webbing materials include:

• Nylon Webbing
• Polyester Webbing
• Polypropylene (PP) Webbing
• Cotton Webbing

Each material is woven into specific widths—commonly 1 inch (25 mm), 2 inches (50 mm), or 4 inches (100 mm)—and thicknesses. Typical tensile strengths for each raw webbing (before making into slings) are:

Note: Actual capacities drop by safety factors when sewn into slings. Manufacturers typically rate slings at Working Load Limits (WLL) that are one-fifth or one-seventh of the base tensile strength, to provide a 5:1 or 7:1 safety factor.

Nylon Webbing Slings

Nylon webbing slings are woven from polyamide fibers. Their standout feature is elasticity. When a load is lifted with a nylon sling, the material stretches slightly—around five to eight percent—absorbing shock and distributing force gently. This makes nylon ideal for lifting fragile or finished products where a sudden jerk could cause damage.

Detailed Analysis

1. Strength and Breakpoint • A standard 2-inch nylon sling rated for 5 000 lb WLL will often have a “break strength” around 25 000 to 30 000 lb. This means that if you apply five times the rated load, the sling could fail. That safety margin ensures your sling remains intact under normal lifting conditions.
2. Moisture Absorption • Nylon can absorb up to 4–5 percent of its weight in water. In humid or marine applications, it can swell slightly, causing dimensions to change and potentially increasing elongation further. For outdoor use, this extra stretch might be a disadvantage—your load could bob on a crane more than you expect.
3. Chemical Resistance • Nylon is vulnerable to strong acids, alkalis, and solvents like gasoline. If you work in steel mills (airborne oils, solvents) or chemical plants, nylon slings may degrade quickly unless further treated or coated.
4. Cost and Availability • On average, a 2-inch nylon Type III web sling costs about 15 percent more than its polyester counterpart. However, many fabricators absorb that cost to protect high-value, delicate items—like polished stone slabs.

Example: One window installer used a 5 000 lb WLL nylon sling to lift a 300 lb glass pane. Because the sling stretched slowly as the load lifted, the glass remained stable instead of swinging in the breeze.

Polyester Webbing Slings

Polyester webbing slings are constructed from polyethylene terephthalate (PET) fibers. They exhibit low stretch, high UV resistance, and minimal moisture absorption. Polyester is the go-to choice for outdoor, marine, and construction applications where you need dimensional stability.

Detailed Analysis

1. Low Elongation • Polyester stretches only about 2–3 percent at full rated load. That means if your sling is rated at 10 000 lb and you lift 10 000 lb, the strap will barely elongate—keeping loads more stable on cranes, booms, or forklifts.
2. UV and Weather Resistance • Untreated polyester lasts 3–5 times longer than nylon in direct sunlight before degradation. In outdoor rigging—like setting poles, lifting HVAC units onto rooftops, or marine operations—this resistance greatly lengthens sling life.
3. Moisture Repellence • Polyester absorbs under 1 percent of its weight in water, so there’s almost no swelling. If you’re hoisting blocks of ice, water tanks, or cargo near pools, you avoid surprise stretch.
4. Chemical Tolerance • Polyester resists many mild acids and alkalis, but strong acids (hydrochloric, sulfuric) will still weaken it. For general industrial use, though, polyester is more chemical-tolerant than nylon.

Table: Nylon vs. Polyester Key Properties

Example: A solar panel installation crew used polyester slings to lift panels onto roof racks. Even under direct sunlight for eight hours a day, slings showed minimal fading or strength loss after a year—in contrast to nylon slings they had replaced annually.

Polypropylene (PP) Webbing Slings

Polypropylene webbing slings are made from polypropylene fibers, which give them a unique combination of light weight, chemical tolerance, and low moisture absorption. Slings made of PP are often the most budget-friendly option, but their stretch and temperature limitations require care.

Detailed Analysis

1. High Elongation • Polypropylene can stretch 10–15 percent at rated load, so it’s not ideal for precise lifts where minimal movement is critical. However, that elasticity can cushion some shock, similar to nylon but to a greater degree.
2. Chemical Tolerance • PP stands up well to many acids and alkalis. In water treatment plants, chemical processing sites, and agricultural settings where fertilizers or mild caustics are present, PP outlasts nylon and polyester.
3. Temperature Limitations • Polypropylene loses significant strength above 160 °F (71 °C). Never use PP slings in high-heat environments—like near furnaces or when lifting freshly welded steel sections—because the fibers can soften and fail.
4. Cost Efficiency • PP slings typically cost 10–20 percent less than polyester. If you need a sling for occasional, light-to-medium lifts in chemical-exposed settings, polypropylene is a compelling choice.

Example: In a fertilizer warehouse, workers used PP slings to move big bags of granular fertilizer from pallet to forklift. Even after hundreds of lifts in a chemically active environment, the PP slings required replacement only after two years—while comparable polyester slings cracked from acidity in under nine months.

Cotton Webbing Slings

Cotton webbing slings are made from natural cotton fibers. They’re a low-cost option for light, indoor, non-abrasive applications where strength demands are minimal. For most industrial lifting, cotton slings have largely been replaced by synthetics, but they still appear in select uses.

Detailed Analysis

1. Low Tensile Strength • A 2-inch cotton web sling often rates around 1 000 to 2 000 lb WLL. That’s fine for hoisting small engine parts, lightweight shelving units, or bundling irregular shapes—but not for heavy industrial loads.
2. Motivation for Use • Some restoration shops, textile mills, and theatrical set designers prefer cotton to avoid leaving synthetic fibers behind on delicate items—like antique carvings or theatrical props.
3. Susceptibility to Moisture • Cotton absorbs 15–20 percent of its weight in water, then stretches significantly—up to 20–30 percent. Wet loads can become unstable. Additionally, mildew and rot threaten durability if stored damp.
4. Cost Advantage • Cotton slings can run as low as $0.30 per foot for a 2-inch width, making them cost-effective when load demands are minimal.

Example: A small furniture restoration shop used cotton slings to hoist antique chair frames when applying finishes. Because cotton didn’t rub synthetic residues into the varnish, they avoided tiny marks on mahogany legs—marks that had previously plagued them when using nylon slings.

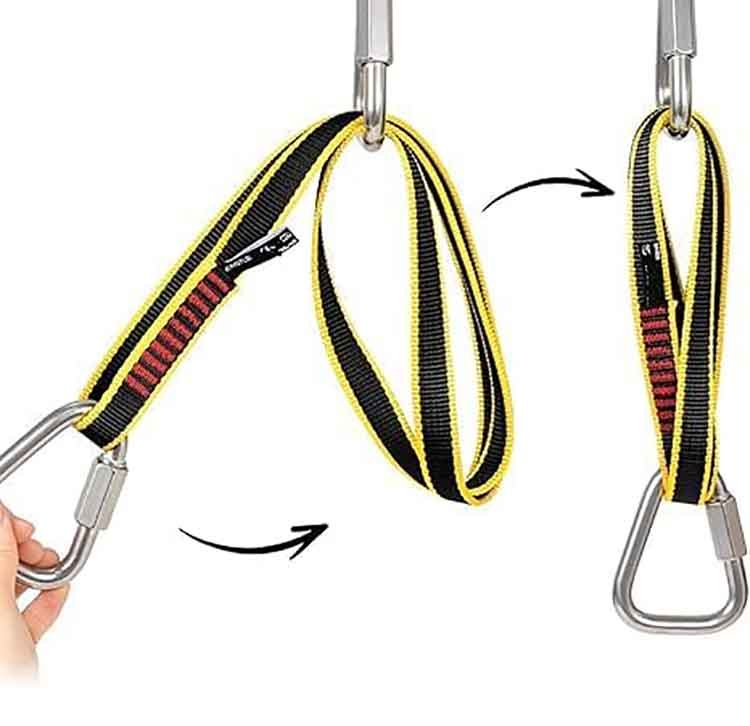

What Are the Main Construction Styles of Webbing Slings?

Webbing slings come in several construction styles—flat eye, round eye, endless, and reinforced/tubular—each offering different benefits in terms of load distribution, strength, and versatility. Beyond these, OSHA and ANSI categorize synthetics into Types III, IV, and V. Understanding construction and regulatory “Type” helps you select slings that match lifting height, capacity, and safety requirements.

Flat Eye Slings

A flat eye sling is made by folding raw webbing back onto itself at each end, sewing a reinforced eye or loop that can mate with a shackle, hook, or ring. The body of the sling remains flat and untubular.

Detailed Analysis

1. Construction Method • Starting with a single length of fabric, the ends are folded over and stitched—often with multilayer box-X patterns—to create eyes. No additional protective sheath is added over the body.
2. Advantages • Very cost-effective to manufacture—fewer materials and less labor. • Because it’s flat, it can wrap around irregularly shaped loads (like engine blocks) more easily than a tubular sling with bulk.
3. Limitations • Subject to abrasion on the load edge, since the raw edge of the eye is exposed through stitching. • Less resistant to cuts and punctures compared to round or tubular slings.
4. Common Applications • Light-to-medium lifting in warehouses, general manufacturing, and woodworking shops—where loads lack sharp edges.

Example: A machine shop often needed to lift modest-weight cast-iron crankcases. By placing a flat eye sling under the part, operators could hook the eyes to a jib crane hook and rotate the crankcase without scratching its machined surface.

Round Eye Slings

Round eye slings—also known as tubular webbing slings—are made by encasing one continuous length of tubular-woven webbing into a protective outer cover. The load-bearing fibers are entirely inside this tubular sheath, with no raw edges exposed.

Detailed Analysis

1. Construction Method • A single tube of webbing is folded such that each end forms an eye. The load-bearing core sits inside a highly abrasion-resistant woven cover sleeve—often of polyester or nylon. • Stitching is performed on the outer cover only, not on the load-bearing core. When a stitch wears through, you’ll see the core color (often red or yellow) showing—indicating a need for sling retirement.
2. Advantages • Uniform load distribution along the entire circumference of the sling. No weak “flat” areas where fibers bunch up. • Outstanding abrasion resistance: the cover sheath takes the brunt of wear. • Easier to slide around loads—great for rotating barrels, bundles of tubing, or wide pallets.
3. Limitations • Typically 20–30 percent more expensive than flat eye slings due to extra cover fabric and stitching. • The tubular shape can make wrapping around very thin or narrow supports challenging.
4. Common Applications • Heavy machinery assembly, power plant maintenance, oil-and-gas equipment lifts—where abrasion risk is high and any cut could be catastrophic.

Example: An oil refinery used 10 000 lb WLL round eye slings to lift valves into place on piping racks. After two years of heavy use, inspections showed minimal outer cover wear. When localized abrasion exposed the core, the crew immediately retired the sling—avoiding a potential pipe-bend accident.

Endless (Grommet) Slings

Endless slings—sometimes called grommet slings—are a single continuous loop of tubular or flat webbing. They have no distinct eyes; instead, you can double them, choke them, or basket them around loads in various configurations.

Detailed Analysis

1. Construction Method • A length of webbing—with or without an outer protective cover—is sewn end-to-end using heavy-duty lockstitch or coverstitch patterns. Manufacturers reinforce the entire loop with rip-stitch threads or additional fabric sleeves in high-wear areas.
2. Advantages • Ultimate versatility—you can form an eye in any part of the loop, adjust length on the fly, or wrap multiple times for increased safety factor. • Distribution of load across a broader area when used in basket mode.
3. Limitations • Harder to inspect for internal damage, since wear can occur anywhere on the loop. • You need to know the loop length ahead of time to avoid over-twisting or bunching on lifts requiring specific eye openings.
4. Common Applications • Shipyards, steel mills, and pipeline construction—where operators often need to sling loads from odd angles and adjust quickly.

Example: A sheet metal fabricator used a 6 ft endless polyester sling around large HVAC duct sections. By sliding the loop up higher or lower on the duct and adjusting the angle, they could change the center of gravity easily mid-lift—eliminating the need for multiple sling lengths.

Reinforced/Tubular Slings

Reinforced (or multi-ply) slings are designed for extra capacity or cut-resistance. They typically consist of several layers of webbing stitched together side-by-side, sometimes with protective edge-guards or additional sleeves.

Detailed Analysis

1. Construction Method • Manufacturers lay two or more layers of webbing parallel to each other, then stitch them together using high-strength threads—creating a “4-ply” or “6-ply” assembly. • Some designs add a heavy polyester or nylon sleeve on top for abrasion protection and cut resistance.
2. Advantages • Higher rated capacities: a 4-ply polyester sling might double the WLL of a comparable 2-ply design at the same width. • Increased cut protection: in those 4-ply or 6-ply lifts, if one layer is compromised, the remaining layers still hold the load until operators can remove the sling.
3. Limitations • Bulkier: stacking layers increases thickness, and the sling may bind when wrapping around small-radius corners. • Costlier: more fabric, labor, and materials mean a price premium—often 20–30 percent above a single-layer tubular sling.
4. Common Applications • Steel fabrication shops—lifting heavy boiler plates, bundles of rebar, or oversized flanges with sharp edges. • Construction sites—crane operators sling bundles of angle iron or coiled wire where cut protection is critical.

Example: A bridge construction crew used a 6-ply polyester reinforced sling to lift a bundle of ½-inch rebar. The extra layers allowed the sling to ride over the sharp bar ends multiple times without splitting, ensuring each lift remained safe.

What Is a Type 3 Web Sling?

Under ANSI/ASME B30.9 and OSHA, “Type III” refers to a flat web sling with sewn eyes. The sling’s load-bearing fibers sit directly in the load zone—there is no tubular cover—but heavy stitching and backing reinforce the eyes.

Detailed Analysis

1. Construction and Rating • Type III slings are rated with specific WLLs based on width. For example:
   • A 2″ (50 mm) Type III nylon sling has a WLL of 3 000 lb in a vertical hitch, 6 000 lb in a basket hitch, and 2 400 lb in a choker hitch. • Stitching patterns for the eyes often use four-stage, two-placed full-width box-X patterns for maximum seam strength.
2. Strengths and Weaknesses • Relatively low cost and lightweight. • Exposed fibers in the load zone make the sling vulnerable to cuts or abrasion if used over sharp edges without protective padding.
3. Common Uses • Warehouses handling boxed inventory, general manufacturing where loads have rounded edges, and indoor material handling without excessive abrasion.

Example: A furniture assembly factory used 2″ Type III polyester slings to hoist completed sofa frames from ground level to a staging mezzanine. Because the wood edges were smooth and rounded, the flat eye design provided a stable cradle without damage to the finish.

What Is the Difference Between Web Sling Type 3 and Type 4?

Type III and Type IV are both flat web slings, but Type IV slings include an additional filler piece under each eye to reduce stress on the eye seams and provide a slight tubular shape at the ends.

1. Type III (Flat Web Sling) • Flat webbing folded back to form eyes at each end, with box-X stitching. • Fibers in the load zone are exposed to contact, increasing abrasion risk.
2. Type IV (Lift-All Style Flat Eye Sling) • Features a sewn-in filler piece or puckler (a small tube of fabric) under the eye to create a slight tubular curvature. • Distributes load more evenly around the eye, reducing stress on the stitching. • Provides marginally better abrasion resistance at the eye zone versus Type III.

Key Differences Table

Example: At a marine dockyard, Type III polyester slings had frayed quickly around the eye stitches when passing over loaded pallets with rough corner braces. Upgrading to Type IV slings added the filler piece under the eyes, which nearly doubled the lifespan in rugged conditions—saving the dockyard thousands in replacement costs over one season.

What Is a Type 5 Sling?

A Type V web sling—often called a round sling—features a tubular woven body completely covered by an outer protective sheath. Under OSHA/ANSI, Type V is defined for slings with a load-bearing core of one or more synthetic fibers, completely encased in a polyester cover that protects against abrasion and UV.

Detailed Analysis

1. Construction • The load-bearing fibers are woven into a continuous round rope or tube (the “core”). Around that core is a knitted or braided polyester cover. The cover isn’t sewn shut but is closed by a series of rip-stitch threads running lengthwise. • When a rip-stitch thread breaks, the core’s bright internal color (usually red or yellow) shows through—a visible sign you must retire the sling.
2. Advantages • Excellent abrasion resistance: the cover absorbs most friction and wear. • Superior flexibility: wraps around load contours easily, making it ideal for odd shapes. • Minimal fiber exposure: the core never directly contacts loads, preserving tensile strength.
3. Limitations • Typically 20–30 percent more expensive than flat eye slings of comparable WLL. • Less suited if you need a defined eye opening—endless tubular slings can slide.
4. Common Applications • Refinery maintenance (lifting valves or pump housings with sharp edges) • Steel erection (bundled I-beams, structural shapes) • Shipbuilding (curved hull sections, angular load restraints)

Example: A power plant replaced its wire rope slings with 10 000 lb Type V polyester round slings. During an outage, crews needed to hoist steam turbine parts around tight flanges. The round slings’ flexibility allowed them to cradle the cylindrical turbine shaft without kinking—where a chain sling would have caused damage.

How Do Nylon, Polyester, and Polypropylene Webbing Slings Compare?

When comparing webbing sling materials—nylon, polyester, and polypropylene—you weigh stretch, environmental tolerance, and cost. Nylon stretches most (5–8 percent), offering shock absorption but poor UV resistance. Polyester stretches 2–3 percent, excels outdoors, and resists moisture. Polypropylene stretches 10–15 percent, tolerates chemicals and water well but cannot handle high heat. Budget, load sensitivity, and environment drive the choice.

Material Comparison Table

Tensile Strength & Elongation

• Nylon • Break strength of a 2″ sling: 25 000–30 000 lb. • At 5 000 lb WLL, elongation around 5 percent.
• Polyester • Break strength of a 2″ sling: 20 000–25 000 lb. • At 5 000 lb WLL, elongation around 2 percent.
• Polypropylene • Break strength of a 2″ sling: 15 000–20 000 lb. • At 5 000 lb WLL, elongation up to 10 percent.

Critical Insight

When lifting a heavy engine block onto a steel frame, a 10 000 lb WLL nylon sling might “give” slightly under sudden acceleration, cushioning the jerk. But a polyester sling of the same WLL will barely budge—keeping the load rock-steady. Meanwhile, a PP sling might elongate significantly, causing your heavy load to swing more than expected.

Chemical & UV Resistance

• Nylon • Vulnerable to strong acids (e.g., sulfuric acid), alkalis (e.g., sodium hydroxide), and petroleum-based solvents. • UV exposure for more than 2 years without protection can cause embrittlement.
• Polyester • Resists mild acids (acetic acid), alkalis, and common solvents. • UV exposure for 8–10 years before significant fiber degradation.
• Polypropylene • Excellent resistance to most acids, alkalis, and solvents. • UV degradation in under 6 months unless UV-stabilized additives are used.

Critical Insight

In a chemical plant, polyester slings may last three times longer than nylon before requiring retirement if regularly exposed to ammonia fumes and mild acids. However, if strong acids are common—like hydrochloric—you’d likely choose PP for maximum lifespan.

Temperature Range & Moisture Absorption

• Nylon • Safe operating range: –40 °F to 180 °F (–40 °C to 82 °C). • Absorbs up to 5 percent of its weight in water—leading to more stretch.
• Polyester • Safe operating range: –40 °F to 250 °F (–40 °C to 121 °C). • Moisture absorption less than 1 percent—minimal effect on performance.
• Polypropylene • Safe operating range: –20 °F to 160 °F (–28 °C to 71 °C). • Moisture absorption less than 1 percent, but melts or softens near 160 °F.

Critical Insight

A shipyard team used nylon slings to lift metal bows in cold-weather conditions around –10 °F. Because the sling absorbed moisture, it stiffened and elongated unpredictably. Switching to polyester cut down springiness and kept lift angles reliable—even at subzero temperatures.

Cost Considerations

• Nylon • $1.15–$1.30 per foot (2″ width) for Type III slings.
• Polyester • $1.00–$1.15 per foot (2″ width).
• Polypropylene • $0.85–$1.00 per foot (2″ width).

Critical Insight

For a construction firm purchasing 100 ft of sling material at once, the price difference between nylon and polyester might be $150. Over 10 years and multiple replacement cycles, choosing polyester for outdoor hoists could save thousands, despite a marginal upfront cost difference.

Are There Specialty Webbing Slings for Unique Applications?

Beyond standard slings, specialty webbing slings—such as heat-resistant aramid (Kevlar® or Nomex®), abrasion-resistant slings with neoprene or cut-resistant sleeves, chemically resistant PV-coated or UHMWPE (Dyneema®/Spectra®), and color-coded slings with wear indicators—address niche needs. These options allow safe lifting in extreme heat, high-abrasion environments, corrosive settings, and prevent unnoticed damage through visible signs of internal wear.

Heat-Resistant Webbing Slings

When lifting components near furnaces, boilers, or hot pipes, you need slings that won’t fail if exposed to high temperatures. Synthetic fibers like aramid—marketed under names such as Kevlar® or Nomex®—handle heat far better than nylon, polyester, or PP.

Detailed Analysis

1. Kevlar® (Aramid Fiber) • Continuous operation up to 400 °F (204 °C); short-term exposure to 800 °F (427 °C). • Abrasion resistance similar to nylon but with minimal stretch. • Cost: $2.50–$3.00 per foot (2″ round sling).
2. Nomex® (Meta-Aramid) • Operates up to 350 °F (177 °C) continuously; short bursts to 600 °F (316 °C). • Lower tensile strength than Kevlar but still used for lighter hot loads. • Cost: $2.00–$2.50 per foot (2″ tubular sling).
3. Applications • Foundries lifting red-hot ingots, heat-treating shops hoisting parts from quench tanks, and welding stations moving hot assemblies.
4. Example A metal forging shop replaced their polyester slings—ruined after just a few near-furnace lifts—with Kevlar slings. The initial investment was double, but sling replacements dropped from quarterly to once every two years, saving labor and repair downtime.

Abrasion-Resistant/Lined Webbing Slings

In applications where slings rub against jagged steel edges, pipes, or sharp corners, adding an abrasion-resistant cover—or choosing a reinforced design—can extend sling life dramatically.

Detailed Analysis

1. Neoprene Covers • Thick, durable layer glued or sewn over critical wear points. • Excellent for high-friction lifts—like coiled steel or rebar bundles. • Cost premium: $0.30–$0.50 per foot extra.
2. Heavy-Duty Polyester Sleeves • Usually a separate tubular sleeve is slipped over a Type V round sling. • If the cover wears, inspectors see bright core fibers peeking through—clear sign to retire the sling.
3. Multi-Ply Reinforcement • As described in section 3.4, stacking layers of webbing—sometimes with each layer in different colors—makes it easier to identify which layer is wearing first.
4. Example A stone masonry company used 10 000 lb WLL slings to lift granite slabs. By adding neoprene covers on the heel and eye areas—where slabs’ corners tended to cut—they extended each sling’s life from six months to two years.

Chemical-Resistant Webbing Slings

When a sling routinely contacts oils, solvents, acids, or alkalis, consider chemically resistant coatings—like polyvinyl (PV) finishes—or advanced fibers such as UHMWPE (Dyneema® or Spectra®).

Detailed Analysis

1. PV-Coated Webbing • A thin vinyl or rubber coating bonds to the webbing, repelling acids and alkalis. • Often added to polyester slings, making them last 50–100 percent longer in chemical plants. • Cost: $0.40–$0.60 per foot surcharge.
2. UHMWPE (Dyneema®/Spectra®) • Exceptional chemical resistance; can handle strong acids or bases. • Five times stronger than steel (weight for weight), but high cost: $4 – $6 per foot for a 2″ sling.
3. Applications • Oil refineries lifting catalyst baskets, wastewater treatment plants hoisting sludge tanks, or pharmaceutical facilities handling acidic process vessels.
4. Example In a battery recycling plant, operators switched from nylon to PV-coated polyester slings. Even after repeated exposures to sulfuric acid residues, the slings lasted two years versus six months previously—cutting replacement costs by 60 percent.

Color-Coded/Rip-Stitch Indicator Slings

To prevent unseen internal damage, many manufacturers embed color-coded threads (rip-stitch) inside sling stitching or offer slings in bright, contrasting colors.

Detailed Analysis

1. Rip-Stitch Indicators • In tubular or reinforced slings, a thread of bright color (often red or yellow) runs longitudinally near the core. • When outer cover fibers wear away, the indicator thread breaks and shows through—alerting operators to retire the sling immediately.
2. Color-Coded Slings • Manufacturers dye slings to represent capacity. For example, green might indicate 5 000 lb WLL, orange 10 000 lb WLL, and purple 15 000 lb WLL. • Color consistency reduces risk of misloading by making it visually obvious which sling can handle what weight.
3. Applications • Construction sites with multiple cranes operating simultaneously, or cross‐dock facilities where speed and accuracy matter—color coding prevents errors while shifting pallets and drums.
4. Example A logistics hub implemented color-coded slings after a near-miss incident due to a 2 000 lb sling being used for a 5 000 lb load. The simple visual cue—purple slings for 15 000 lb only, orange for 10 000 lb—eliminated mis-tagging incidents entirely in six months.

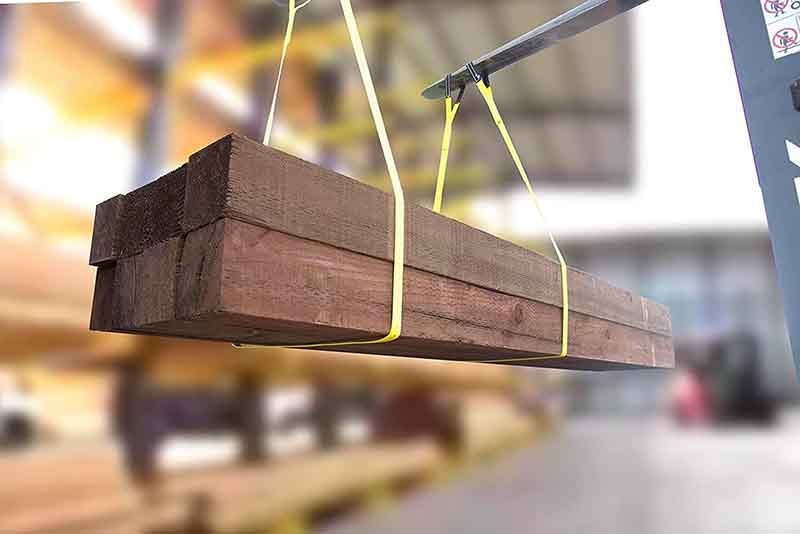

How Should You Inspect and Maintain Your Webbing Slings for Safety?

Regular inspections of webbing slings involve checking for cuts, abrasions, discoloration, and broken rip-stitch threads. Clean slings with water after exposure to chemicals, air-dry them away from sunlight, and store them flat or hung in a cool, dry area. Retire any sling with exposed cores, melted fibers, or elongation exceeding manufacturer guidelines to ensure safe lifting operations.

Visual Inspection: Cuts, Abrasions, Frayed Fibers, UV Fading

Every time you use a sling—ideally before each shift—perform a thorough visual check:

1. Surface Cuts and Abrasions • Look carefully along the entire length for any nicks or threads that are cut or pulled. A line of broken fibers is often a sign that the sling’s strength has dropped below WLL.
2. Frayed or Loose Fibers • Fraying near the eyes or along the body indicates wear. If fibers stand up more than one-eighth inch off the body, the sling should be retired.
3. UV Fading and Discoloration • A new sling’s cover will have deep, vibrant color. When it fades to pale or chalky shades—especially where the cover feels stiff—you’re seeing UV damage. Sun-exposed slings may lose as much as 50 percent tensile strength in three years.
4. Stitch Condition • Check box-X patterns near the eyes and across the body. If threads are broken, missing, or deviated more than one inch from the original pattern, the sling is compromised.

Example: A steel yard manager noticed green 10 000 lb polyester slings turning light green in the hook area after months of sun-belt work. He immediately retired all slings older than 18 months, replacing them with UV-stabilized polyester covers—preventing a potential sling failure during a 6 000 lb lift.

Load-Indicator Checks: Recognizing Worn Stitching or Rip-Stitch Exposure

Rip-stitch or wear-indicator threads are lifesaving features in many slings.

1. Indicator Thread Cuts • As the outer cover wears, these bright-colored threads (red, yellow, or orange) begin to show through. If more than 10 percent of the indicator is visible, it’s time to discard the sling—because internal core damage is almost certain.
2. Stitch Integrity • Beyond color indicators, pay close attention to the box-X stitching near each eye. If any portion of the stitching is undone by more than one loop or the threads break entirely, remove the sling from service.

Example: Workers in a pulp-and-paper mill relied on Type V slings with red rip-stitch indicators to lift press rolls. When a crimson thread peeked through the green cover at one eye, they retired the sling immediately—avoiding a catastrophic spool drop that could have halted production.

Cleaning & Storage Best Practices: Rinsing Chemicals, Air-Drying, Proper Hanging

How you care for slings can double or triple their useful life.

1. Cleaning After Chemical Exposure • If slings contact acids, alkalis, oils, or solvents, rinse with clean water as soon as possible. A 5 percent ammonia solution can neutralize mild acid residues; rinse again thoroughly afterward.
2. Air-Drying • Never use direct heat or open flames to dry slings. Instead, hang them in a well-ventilated area away from direct sunlight. Drying might take 12–24 hours, depending on humidity.
3. Proper Storage • Store slings flat or gently coiled on racks—never on the ground or floor where oil, water, or mechanical damage can occur. • Consult the sling’s label: some manufacturers recommend hanging slings with eyes down to prevent the body from twisting over time.
4. Temperature & Humidity Control • Ideal storage conditions are 50–80 °F (10–27 °C) with less than 50 percent relative humidity. • Avoid closets or storage rooms used for solvents or paints—vapors can degrade synthetic fibers over weeks.

Example: A marine outfitter decided to store its polyester slings indoors rather than hung in the dockyard. Even though each sling saw only 200 uses per year, their median service life jumped from 2 years (outdoors) to 6 years (indoors), reducing replacement costs by nearly 65 percent.

When to Retire a Sling: OSHA/ANSI Guidelines on Broken Fibers and Heat Damage

International and U.S. regulations outline clear criteria for retiring slings:

1. Broken or Cut Fibers • If five or more fibers are broken in one inch along any sling edge, remove it.
2. Elongation Beyond Allowable Limits • Slings that elongate more than 7 percent of their original length under rated load should be retired.
3. Heat Damage • Nylon slings exposed to temperatures above 180 °F (82 °C) lose more than 10 percent tensile strength. Any signs of melted or glazed areas mean immediate retirement. • Polyester slings sustain up to 250 °F (121 °C) but show forcibly rubbed areas that look shiny or stiff—time to retire.
4. UV-Damaged Fibers • Slings that were exposed to direct sunlight for multiple years often exhibit a white chalky appearance and become brittle when bent. If fibers break with minimal force, discard the sling.
5. Manufacturer’s Instructions • Always follow user manuals. If the manufacturer notes that a sling is good for 10 000 cycles, consider retirement even if no visible damage appears.

Example: A shipping terminal once allowed a polyester sling to operate beyond its rated life because it looked intact. During a routine 12 000 lb lift, the sling unexpectedly separated at the eye due to UV fatigue. Thankfully, no one was injured, but the incident prompted an immediate overhaul of their inspection program—saving lives thereafter.

Which Factors Should You Consider When Selecting a Webbing Sling?

Choosing a webbing sling requires evaluating working load limit, safety factors, sling length and width, environmental conditions, needed certifications, and customization options—such as private labeling, low-MOQ runs, or color-coding. By aligning lifting demands, temperature, chemical exposure, and regulatory standards (like EN 1492-1 or ANSI/ASME B30.9) with sling material and construction, you ensure safe, cost-effective, and long-lasting lifting solutions.

Working Load Limit (WLL) & Safety Factor Requirements

Every sling must clearly display its WLL—usually printed on the label or tag. The WLL corresponds to a “break strength” divided by the chosen safety factor (usually 5:1 or 7:1).

• Example Table of WLLs (2″ Slings)

Considerations

1. Vertical Hitch • Load is directly on a single sling body. WLL is lowest in this configuration.
2. Basket Hitch • Sling loops around the load, then both eyes connect to the lifting point—effectively doubling capacity (minus a small correction for angle).
3. Choker Hitch • The sling is wrapped around the load, and one eye passes through the other—capacity is typically around 80 percent of the vertical WLL.

Critical Insight

If you need to lift a 7 500 lb generator in a basket hitch using a 2″ polyester Type III sling, the required WLL in basket mode is 7 500. A 2″ polyester Type III sling in basket mode can handle up to 8 000 lb—so you’d use that, leaving a small margin. If you used a single sling in a vertical hitch, you’d need a larger 3″ or 4″ sling to reach 7 500 lb WLL.

Length & Width Selection Based on Lift Geometry and Load Weight

• Length • Measure the distance between the lifting hook or shackle and the load’s center of gravity. Slings that are too short force steep angles—raising the required capacity exponentially. Conversely, excessively long slings can twist or tangle. • Always account for stretch. A nylon sling might stretch 5 percent under rated load, meaning a 10 ft sling could stretch to 10 ft 6 inches under tension—so factor that in.
• Width • Wider slings distribute load over a larger surface area. A 4″ sling at 10 000 lb WLL sits flatter on a load than a 2″ sling at the same capacity—minimizing edge pressure. • Narrow slings are more flexible and can conform to small radii or tight spots—like wrapping around narrow I-beam flanges.

Example: Lifting a 5 000 lb transformer from the floor to a 15 ft ceiling hoist required four slings in a basket configuration. Engineers specified 4″ × 20 ft polyester slings to prevent excessive edge pressure on transformer lifting lugs and avoid sling-edge wear during the 18 ft hoist.

Environmental Conditions: Moisture, Chemicals, UV Exposure, Temperature

1. Wet or Marine Environments • Polyester or polypropylene slings outperform nylon when consistently exposed to saltwater. • Consider stainless steel hardware on hooks or shackles to prevent corrosion of attachments.
2. Chemical Exposure • For acidic or alkaline atmospheres, polypropylene or PV-coated polyester slings are preferred. • If exposure is intermittent, a thorough rinse after each shift can extend sling life—but if spills occur often, choose chemically resistant fibers (e.g., UHMWPE).
3. Outdoor UV Exposure • Nylon slings degrade rapidly under sunlight. If storage is outdoors, always drape slings on indoor racks when not actively in use. • UV-stabilized polyester slings add 2–3 years of service life in open sunlight.
4. Temperature Extremes • Below –20 °F (–29 °C): All synthetic slings become stiff; polyester remains the most dimensionally stable. • Above 160 °F (71 °C): Polypropylene loses 50 percent strength; switch to polyester or aramid slings.

Example: A pipeline maintenance team in northern Alaska selects polyester slings instead of nylon for subzero winter lifts. Because polyester stays flexible at –40 °F, workers can rig quickly without stiff, brittle slings that could snap at the coldest temperatures.

Customization Needs (OEM/ODM): Low MOQ, Private Label, Color Matching, Branding

Many buyers want slings with their company’s logo, color schemes, and specific lengths. Szoneier offers:

1. Low Minimum Order Quantities (MOQ) • As low as 50 slings per material, per length, per color. • Ideal for specialty contractors who need unique lengths or customized markings.
2. Private Labeling • Full-color labels with your brand name, WLL, safety guidelines, and inspection tags. • Heat-transfer labels, embroidered brand tags, or woven labels embedded in the cover.
3. Color Matching • Pantone color matching so your sling matches your brand’s pallet (ideal for sports facilities, logistics firms, or heavy-equipment dealerships).
4. Unique Stitching Patterns or Reinforcements • If your site has unusually sharp edges—like a steel foundry—request neoprene edge guards or custom stitching layers only in high-wear areas.

Example: A European crane rental company wanted orange slings embroidered with its logo and QR codes linking to online inspection logs. Szoneier produced 200 slings in matching Pantone orange, each tagged with the client’s name and specification data. The cranes’ operators now scan the QR codes to confirm sling history before every lift—ensuring safety compliance and brand visibility.

Regulatory Compliance: EN 1492-1, ANSI/ASME B30.9, and Other Industry Standards

1. EN 1492-1 (European Standard) • Specifies requirements for forged steel fittings, WLL tables, slings’ color codes, and safety markings. • Requires each sling to bear a CE mark and traceable batch number.
2. ANSI/ASME B30.9 (U.S. Standard) • Provides guidelines on manufacture, testing, marking, and inspection frequencies. • Owners/operators must document lifetime cycles and retire slings when marked capacity falls below 75 percent of original.
3. Other Standards • AS ME BTH-1: Structural design of below-the-hook lifting devices—relevant when customizing end fittings for your slings. • OSHA 1910.184 and 1926.251: OSHA’s construction and general industry standards for slings. • ISO 9001: Quality system certification ensures all slings follow rigorous factory testing and inspection protocols.

Example: A chemical processing plant in Germany only purchased slings compliant with EN 1492-1. By insisting on CE marking, standardized color codes, and full traceability, their safety audits passed seamlessly—whereas a nearby competitor faced fines for using unlabeled, non-CE slings.

Conclusion

Understanding the nuances of webbing sling materials, construction styles, regulatory “Type” classifications, and environmental considerations can feel overwhelming at first—yet making informed choices is essential for safe operations, cost control, and long-term reliability. Whether you need Type III flat eye polyester slings for indoor warehouse lifts, Type V round nylon slings for shipyard maintenance, or custom aramid slings for near-furnace hoists, knowing each material’s strengths and limits empowers you to select the right sling for every task.

At Szoneier, we combine over 18 years of expertise in webbing research, development, and manufacturing to craft high-quality slings tailored to your needs. We offer low-MOQ custom runs, private labeling, Pantone color matching, and a variety of protective sleeves or specialty coatings. Our rigorous quality control—backed by ISO 9001 certification—ensures each sling meets or exceeds ANSI/ASME B30.9, OSHA, and EN 1492-1 standards.

Ready to elevate your lifting operations? Contact our team today for a custom quote. Whether you need 10 slings or 1 000, standard configurations or specialty heat-resistant aramid designs, we’ll guide you through material selection, length and width sizing, safety factor calculations, and branding options. Let Szoneier be your trusted partner for webbing sling solutions—because when safety, performance, and reliability matter, settling for anything less is simply not an option.
