Ever stopped to think about what keeps your backpack straps from snapping under a heavy load? Or what makes that dog leash you trust day in and day out so darn reliable? The answer often lies in the unsung hero: nylon webbing. This talk-through will go deep—think real numbers, easy-to-skim tables, and straight-talk explanations—so you can pick the perfect webbing for your next product or project.
Nylon webbing is a high-strength, woven tape made from nylon fibers, offering tensile strengths from 700 to 1,200 kgf and elongation up to 30%. It’s prized for shock absorption, abrasion resistance, and ease of customization. From safety harnesses to fashion straps, the key is matching webbing type, width, weave, and finish to your specific load and environmental needs.
Imagine hiking the Rockies with a pack full of gear—your webbing is the silent workhorse holding it all together. Now, let’s unpack the nitty-gritty (with data!) so you can make confident choices.

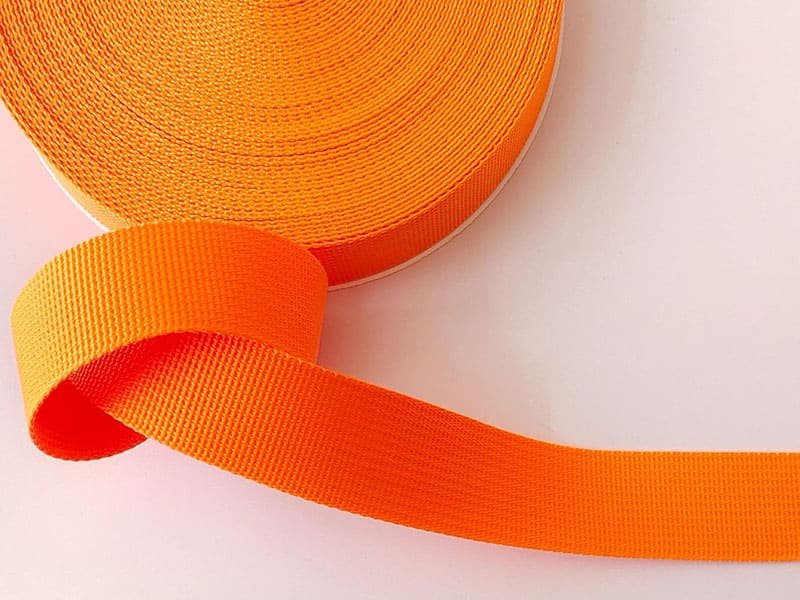

What Is Nylon Webbing and How Does It Differ from Other Materials?
Nylon webbing is a woven tape made from nylon yarns—either Nylon 6 or Nylon 6,6—known for tensile strengths of 700–1,200 kgf and elongation up to 30%. Compared to polyester or cotton webbing, it excels in elasticity and abrasion resistance, making it ideal for dynamic loads.
Nylon 6 vs. Nylon 6,6
| Property | Nylon 6 | Nylon 6,6 |
|---|---|---|
| Tensile Strength (kgf) | 700–1,000 | 800–1,200 |
| Elongation (%) | 25–30 | 15–20 |
| Melting Point (°C) | ~215 | ~265 |
| Cost Factor | Baseline | +10–15% |
- Nylon 6 stretches more (great shock absorption); Nylon 6,6 handles higher heat and weight.
- Use Nylon 6 for climbing slings, Nylon 6,6 for industrial safety belts where heat resistance matters.
Nylon vs. Polyester vs. Cotton
| Property | Nylon | Polyester | Cotton |
|---|---|---|---|
| Tensile Strength | 700–1,200 kgf | 600–1,000 kgf | 300–500 kgf |
| Elongation | 15–30% | 8–15% | 5–10% |
| Abrasion Cycles | 15,000+ | 12,000+ | 3,000–5,000 |
| Water Absorption | ~4% (weakens slightly) | <1% (stable when wet) | 8–12% (heavy when wet) |
| UV Resistance | Moderate (coating help) | High | Low |
| Cost per Meter (USD) | 0.25–0.40 | 0.20–0.35 | 0.15–0.30 |
- Elasticity & Shock Absorption: Nylon wins if you need give under sudden loads.
- Weather Durability: Polyester holds up to sun and rain better.
- Comfort & Eco: Cotton feels soft and is biodegradable, but wears faster.

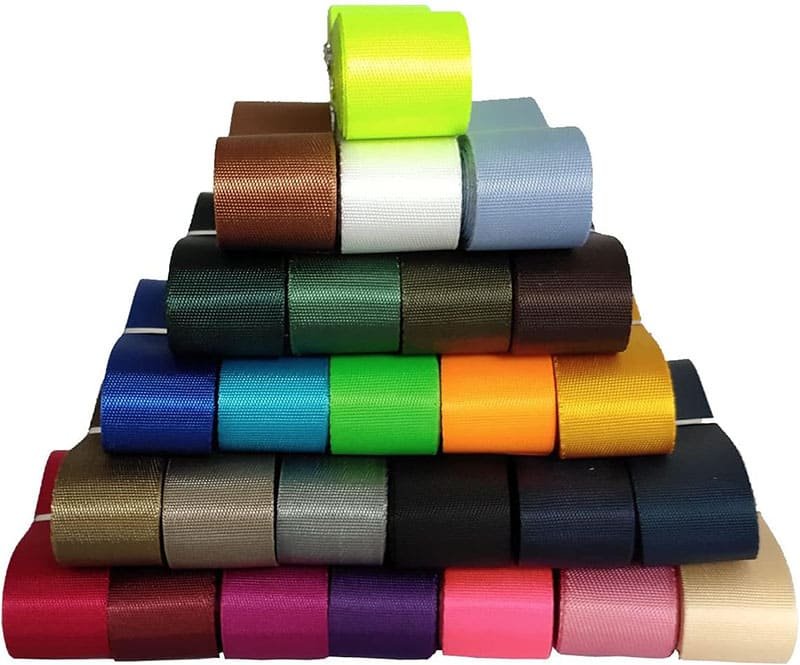

What Are the Different Types of Webbing
Webbing varies by construction—flat vs. tubular—fiber type—synthetic vs. natural—and specialized weaves like MOLLE or raised-rib. Each style tweaks strength, flexibility, or sewability, so you pick what fits backpacks, safety gear, or fashion straps best.
Construction Styles
| Style | Description | Pros | Cons |
|---|---|---|---|
| Flat | Single-plane weave | Easy to sew, cost-efficient | Less flexible |
| Tubular | Weave forms hollow tube | More flexible, resists fraying | Harder to sew, slightly bulkier |
- Flat webbing is all-purpose—think luggage handles.
- Tubular webbing flexes nicely—perfect for climbing slings.
Fiber Sources
- Synthetic: Nylon, polyester, polypropylene—tough, consistent, weather-resistant.
- Natural: Cotton, jute—soft, breathable, eco-friendly, but lower strength.
Specialized Weaves
| Weave Type | Feature | Typical Use |
|---|---|---|
| MOLLE/PALS | Precise 25 mm spaced loops | Tactical backpacks, modular pouches |
| Raised Rib | Textured ridges for grip | Pet leashes, sports straps |
| Double-Layer | Two layers bonded or woven | Heavy tie-downs, cargo straps |
- MOLLE webbing forms attachment points on military gear.
- Raised-rib offers tactile grip on camera straps or pet gear.
Weight/Denier Variations
| Denier Range | Weight Grade | Use-Case |
|---|---|---|
| 200–400 denier | Lightweight | Apparel, trims |
| 500–1,000 denier | Standard-duty | Backpack straps, pet leashes |
| 1,000+ denier | Heavy-duty | Industrial slings, safety belts |

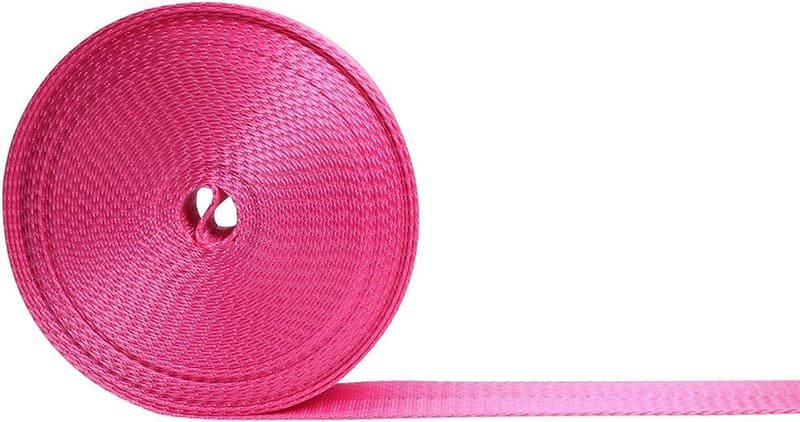

What Are the Key Properties and Advantages of Nylon Webbing?
Key attributes include tensile strength up to 1,200 kgf, elasticity for shock absorption, abrasion resistance of 15,000+ cycles, and moderate UV resistance. These make nylon webbing a go-to for dynamic loads, harsh environments, and long-lasting products.
Tensile Strength & Elasticity
- Data Point: A 40 mm nylon sling can hold 4,000 kgf before failure.
- Real-World Impact: Climbing harnesses rely on that stretch to absorb fall energy.
Abrasion Resistance
- Test: Taber Abrader—nylon endures 15,000+ cycles vs. polyester’s 12,000.
- Implication: Backpack straps breezing past rocky trails without fraying.
UV and Chemical Resistance
- UV Exposure: Untreated nylon loses ~25% strength after 1,000 hours under UV; treated versions lose <10%.
- Chemical Contact: Resists oils and mild acids; degrades under strong alkalis.
Thermal Characteristics
| Property | Nylon 6 | Nylon 6,6 |
|---|---|---|
| Melting Point | ~215 °C | ~265 °C |
| Service Temp | -40 °C to 100 °C | -40 °C to 120 °C |
- Use Nylon 6,6 for heat-exposed components, like engine covers.
Comfort & Finish
- Surface Treatments: PU coating adds water repellence (+5% thickness).
- Texture Options: Smooth for slide-through buckles, ribbed for grip.
What Is Nylon Webbing Used For?
Nylon webbing’s versatility shows up in life-saving safety harnesses, rugged backpack straps, secure pet collars, and even stylish handbag handles. Its combo of strength, stretch, and finish options fits everything from military gear to fashion accessories.
Industrial Safety & Fall Protection
| Application | Width (mm) | Strength (kgf) | Standards |
|---|---|---|---|
| Full-Body Harness | 25–50 | 1,500–4,000 | OSHA, ANSI Z359 |
| Anchor Slings | 25–45 | 3,000–5,000 | EN 795, CE |
| Lanyards | 20–25 | 1,000–2,000 | CSA Z259.2.2 |
- Fall protection gear requires high safety factors—webbing rated ≥ 5× max load.
Outdoor & Sporting Goods
| Gear | Width (mm) | Strength (kgf) | Special Feature |
|---|---|---|---|
| Backpack Straps | 20–50 | 700–2,200 | Padded webbing edges |
| Climbing Slings | 16–25 | 2,000–4,000 | Tubular, high elongation |
| Kayak Tie-Downs | 25–50 | 1,500–3,000 | UV-treated, water-repellent |
- Note: Padded or ribbed webbing reduces shoulder fatigue on heavy loads.
Pet Accessories & Fashion
| Accessory | Width (mm) | Strength (kgf) | Feature |
|---|---|---|---|
| Dog Leashes | 15–25 | 500–1,200 | Reflective tape option |
| Collars | 20–30 | 800–1,500 | Soft-touch backing |
| Handbag Straps | 10–25 | 300–800 | Embossed patterns |
- Fashion twist: Brands emboss logos or use contrast stitching for style.
How Do You Choose the Right Nylon Webbing for Your Project?
Match webbing to load, environment, and look: use wide, heavy-duty webbing (≥40 mm) for safety belts; UV-stabilized webbing for outdoor; padded for comfort; decorative finishes for fashion. Order samples to test real-world performance.
Assessing Load & Safety Factors
- Rule of Thumb: Webbing rating ≥ 5× expected max load.
- Dynamic vs. Static: Climbing gear benefits from 15–30% elongation; cargo straps aim for ≤10% stretch.
Environmental Considerations
| Factor | Nylon 6 | Nylon 6,6 | Polyester |
|---|---|---|---|
| UV Resistance | Moderate | Moderate+ | High |
| Water Stability | Absorbs 4% | Absorbs 3% | Absorbs <1% |
| Chemical Resistance | Good | Very Good | Excellent |
- Marine Use: Opt for polyester or PU-coated nylon to minimize water-related strength loss.
Width, Thickness & Comfort
- Load Distribution: Wider webbing reduces pressure—use 40–50 mm for packs, 20–25 mm for leashes.
- Padded Edges: Add foam backing for shoulder or neck comfort.
Sample Testing Protocol
- Visual & Tactile Check – look for weave consistency; feel stiffness.
- Tensile Test – stretch sample to verify manufacturer’s spec.
- Abrasion & UV Test – rub sample or expose to sunlight; check for fraying or color fade.

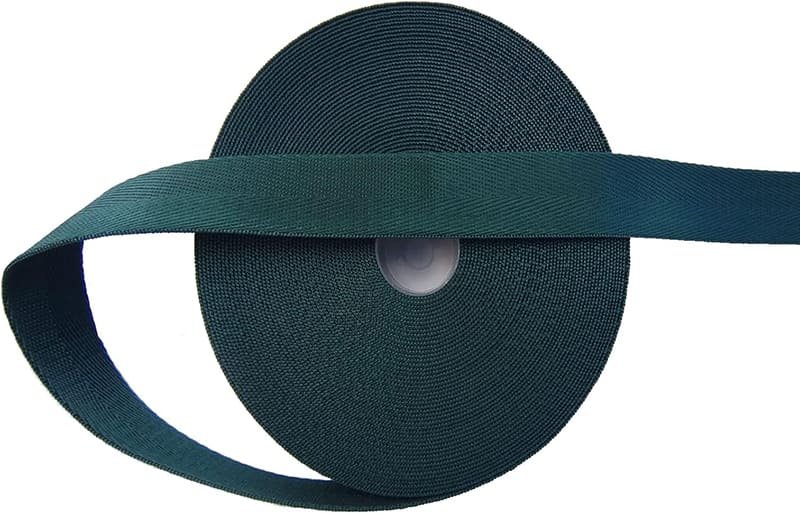

What Is the Lifespan of Nylon Webbing and How to Maintain It?
Properly cared-for nylon webbing lasts 5–10 years in moderate use; heavy outdoor or industrial use may shorten to 2–3 years. Keep it clean, dry, and inspected for frays—replace at first sign of load-bearing damage.
Expected Service Life
| Use-Case | Typical Lifespan |
|---|---|
| Indoor Furniture Straps | 8–10 years |
| Casual Backpack Straps | 5–7 years |
| Outdoor Gear | 3–5 years |
| Industrial Safety Gear | 2–3 years |
Cleaning & Storage
- Cleaning Steps:
- Rinse with lukewarm water + mild detergent.
- Scrub gently with soft brush.
- Air-dry away from direct sun.
- Storage Tips:
- Roll loosely to prevent kinks.
- Keep in cool, dry, UV-free area.
Periodic Inspections
- Every 3–6 Months: Look for fraying, discoloration, stiffness.
- Annual Tensile Sample Test: Test small piece to ensure ≥ 90% original strength.
- Replacement Trigger: Any broken yarns or >10% strength loss.
Can You Melt Nylon Webbing to Fuse or Repair It?
Yes—nylon’s thermoplastic nature allows edge sealing and small repairs via hot knife or soldering iron. However, fused joints are only 50–60% as strong—professional re-lacing or replacement is best for load-critical uses.
Edge Sealing Techniques
| Method | Strength (%) | Complexity | Best For |
|---|---|---|---|
| Hot Knife Cut | N/A (edge seal) | Low | Fray prevention |
| Heat Fusion | 50–60% | Medium | Quick minor repair |
| Professional Web Replacement | 100% | High | Load-critical gear |
- Hot Knife: Cut and seal in one step—great for DIY.
- Heat Fusion: Melt two ends, press together—acceptable if not safety-critical.
Safety & Best Practices
- Ventilation: Burning nylon releases irritant fumes.
- Temperature Control: Excess heat chars fibers; too little fails to fuse.
Do Custom Nylon Webbing Options and Add-Ons Exist?
Absolutely—custom dyeing, logo printing, special coatings (waterproof, reflective, flame-retardant), and integrated hardware (buckles, sliders, reinforced ends) let you tailor nylon webbing to your brand and function.
Custom Printing & Dyeing
- Screen Printing: Best for simple logos—MOQ 500 m; turnaround 7–10 days.
- Sublimation: Full-color prints on polyester-coated nylon.
- Data: Brands see 25% higher recall when logos on straps match brand colors.
Special Coatings & Treatments
| Coating Type | Benefit | Added Thickness |
|---|---|---|
| PU Coating | Water-repellent | +3–5% |
| Teflon® Finish | Stain-resistant | +2% |
| Reflective Strips | Night visibility | +1% |
| Flame-Retardant | Meets NFPA standards | +4% |
Hardware Integration
- Buckles & Sliders: Nylon or metal, color-matched finishes.
- Reinforced Ends: Heat-molded tips to prevent fray and ease threading.
- Stitch Patterns: Box-and-X, triple stitch for extra strength.
Ready to Customize Your Nylon Webbing?
Nylon webbing powers everything from your favorite backpack to life-saving safety gear. With real data, clear tables, and plain English under your belt, you’re ready to pick—and maintain—the perfect webbing.
